EVC-S2
PROTO TYPE
シンプル操作のブーストコントローラー「EVC-S」が視認性に優れたカラー液晶表示に進化。

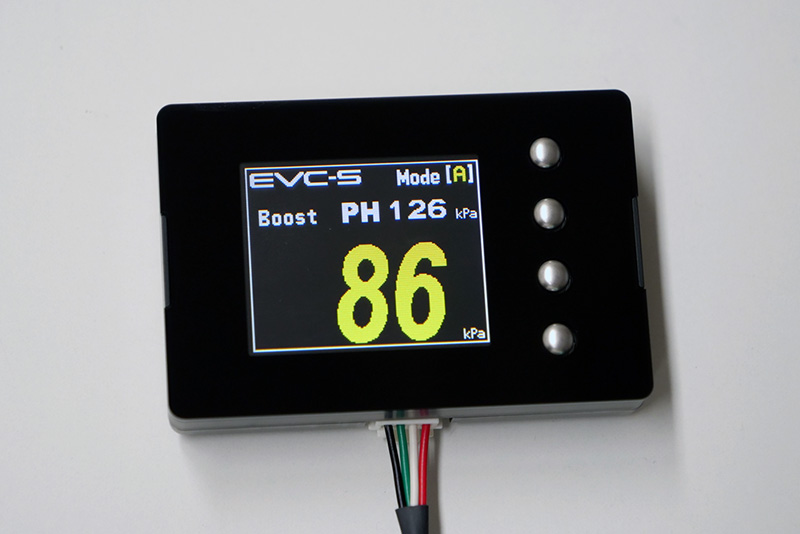

ディスプレイユニット
Display Unit

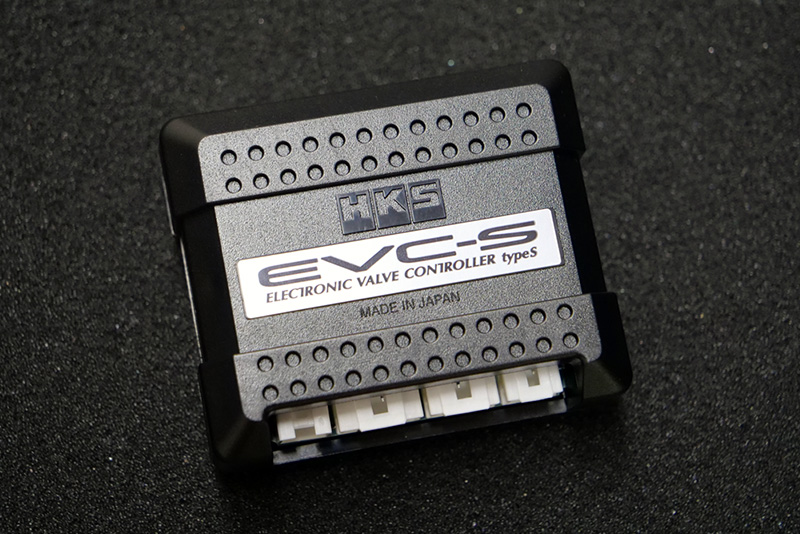

制御部
Control Unit
- ドット表示を生かした設定画面やボタンインフォメーション機能により、直感での操作を可能とし操作性の向上を実現しました。
- 最大制御ブーストを 250kPa とし、幅広いブースト制御に対応。
- ブースト設定を 従来の2モードから「A~D」の4モードに拡大。コンディションや条件に合わせたブースト選択を容易にしました。
- 新機能としてサーキットモード、スクランブルモードを搭載しました。4つのブースト設定から2つを切り替えて制御を行います。(スクランブルモードは設定時間で切替)
- ワーニング機能にオーバータイム時間の設定を追加。ワーニング値を設定時間以上超えていないとワーニング制御を開始しないため、ワーニング制御の調整幅が広がりました。
- Dot-display-based setting screens and button information functions enable easy and intuitive control.
- Supports a wide range of boost pressure control with a maximum control of 250 kPa.
- Boost settings have been expanded from the previous 2 modes to 4 modes "A to D". Makes it easier to select the boost setting that best suits the conditions and requirements.
- New features include “Circuit Mode” and “Scramble Boost Mode”. Allows control by switching 2 of the 4 boost settings. (Scramble mode is switched by timed setting)
- New Timer Function is added to the Warning Function. Warning control will not activate unless the warning value is exceeded for a set amount of time, thereby expanding the range of adjustment for warning control.
◆主要機能
- ノーマル復帰機能
- ワーニング機能
- スクランブル機能
- ブースト設定切替機能(サーキットモード)
- 4ブースト設定機能
- データメモリ機能
- データロック機能
- アフターイメージ機能
- 圧力単位選択機能
- ボタン位置左右反転機能
- ボタンインフォメーション機能
- バックライト調整機能
- ピークメモリー選択機能
◆Main Functions
- Easy return to stock status
- Warning function
- Scramble Boost function
- Easy shift of boost pressure setups
- Saving up to 4 boost pressure setups
- Data memory function
- Data lock function
- Peak boost pressure detection
- Selectable boost pressure units
- Reversible button position
- Button information function
- Backlight dimming Function
- Peak memory selection function
