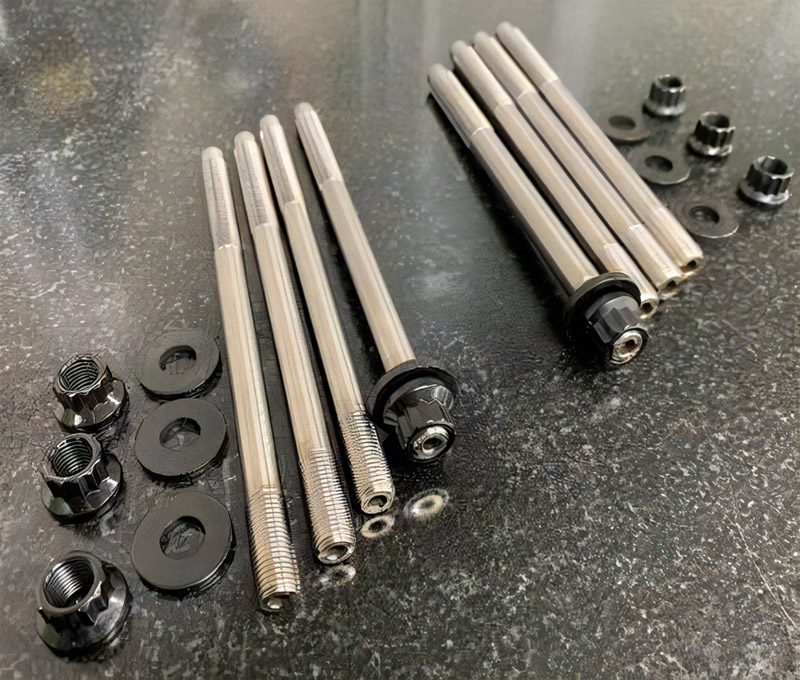

HEAD STUDS KITGR YARIS (GXPA16)
PROTO TYPE


- 燃焼圧の高いGR YARIS のG16E-GTSエンジン用として既に販売中のGROMMET HEAD GASKETのシール効果をより高めるために、強化ヘッドスタッドを開発。
- 底付きタイプのスタッドボルトにすることで、ブロック側の有効ネジが長くなり応力が分散することで、高い軸力にも対応可能となります。
- 材質はARP社で最も引張強度が高く、優れた疲労サイクル寿命、耐腐食性を備えたCustom Age 625 Plusを使用。
- Strengthened head stud bolts for GR YARIS' G16E-GTS engine are under development to further enhance the sealing effect of the GROMMET HEAD GASKET, which is already available for G16E-GTS engine with high combustion pressure.
- By using bottomed type stud bolts, the active threads on the block side are longer and the stress is dispersed, allowing for higher axial force to be endured.

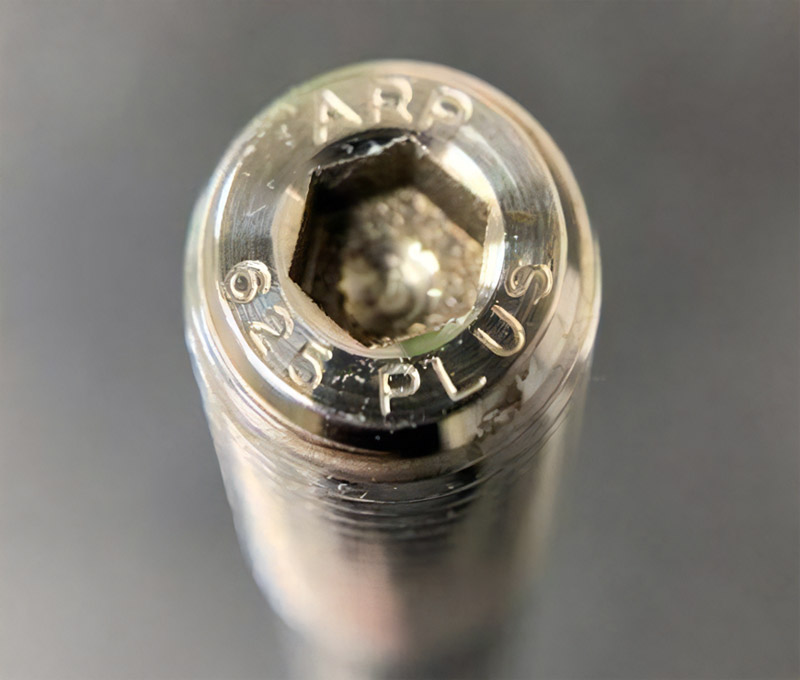

- ARP' Custom Age 625 Plus material gives the highest tensile strength, excellent endurance cycle life, and corrosion resistance.
