BLOW OFF

PRODUCT INFORMATION

SSQV IV D

[SSQV IV D]

This newly designed SSQV IVD uses a "boost drive controller" for positive boost operation.
This new system SQV can function on vehicles which have no vacuum, such as diesel engines as well as conventional turbo cars.
An on/off switch allows operation of the SQV to be switched on or off at any time and a trigger switch can allow activation of the SQV on demand.


■System Structure

* 1KD installation

■Product Contents

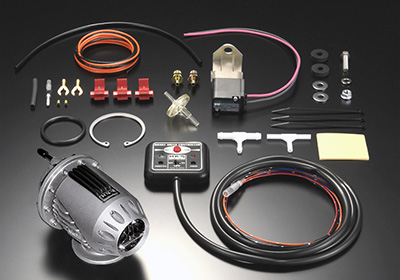

- SSQV IVD Main Unit
- Boost Drive Controller
- Solenoid Valve
- Other short parts for fitting

* Some other parts are necessary (Flange, Pipe, Hose etc) when fitting to a vehicle. Please check these items before purchase.。


(1) Trigger Switch

The SQV can be operated on demand. Illuminates when SQV is operating.

(2) Green indicator

Light illuminates when BCD is not in standby mode.

(3) Activation point adjustment

Adjust the accelerator point where the SQV will activate.

(4) Red indicator

Light illuminates when BDC is in standby mode.

(5) Operation duration adjustment

Adjusts the operation time of the SQV.

(6) On/Off Switch

Switches SQV function on or off.


Indication contditions
  At Idling During acceleration Acceleration OFF SQV working Acceleraitor OFF SQV stopped ON/OFF switch OFF
Green Indicator on     on
Red Indicator   on
Trigger switch     on
