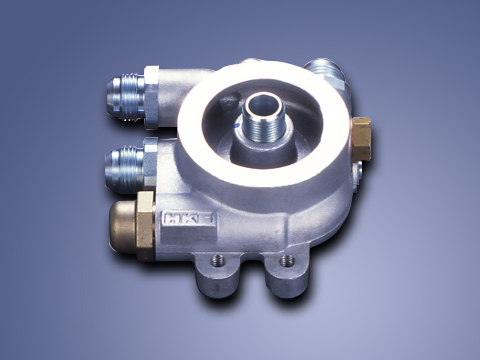

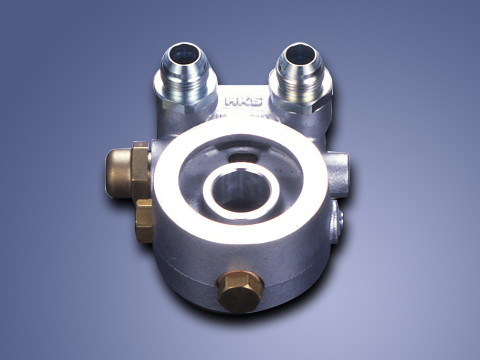

  • Attachment (for S type)

  • Adapter bolt A / Adapter bolt B (for S type)

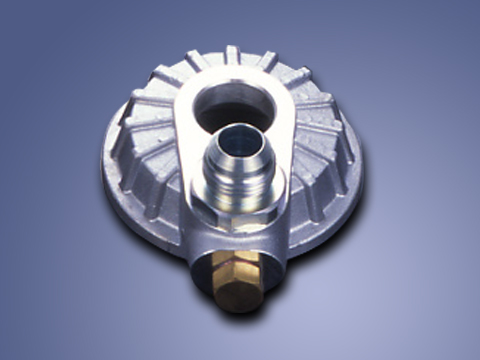

  • Attachment (for R type)

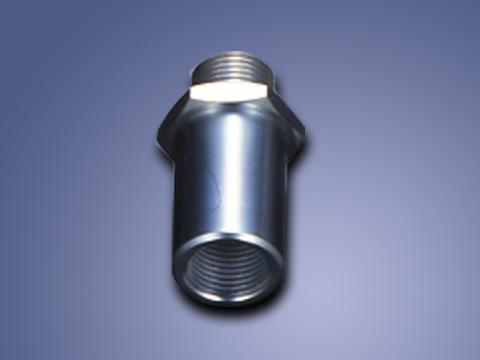

  • Adapter thermo (for R type)

  • Attachment bolt A / Attachment bolt B (for R type)

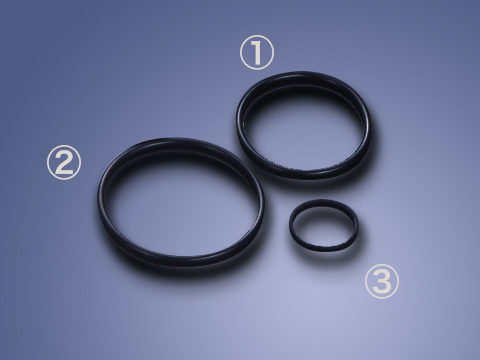

  • O ring:
    (1)φ56 t=3.5 (2)φ67 t=3.5 (3)φ26 t=3.5
    * 2 for each set

  • Oil Cooler Fitting

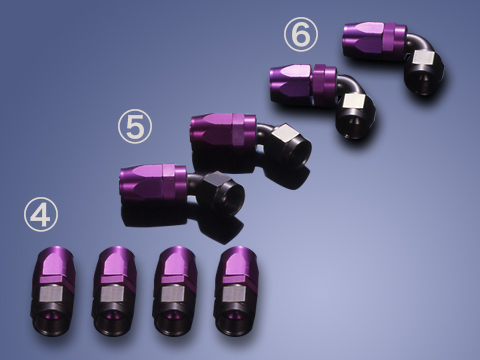

    (4)#10 straight (5)#10-45° (6)#10-90°

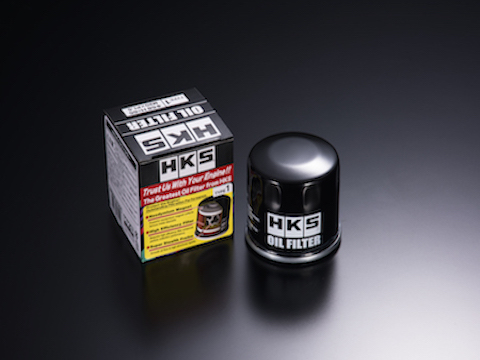

  • Oil Filter

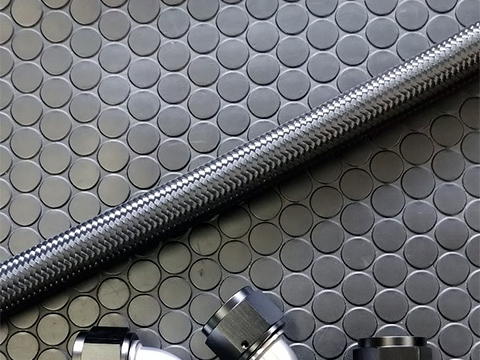

  • BLACK MESH HOSE

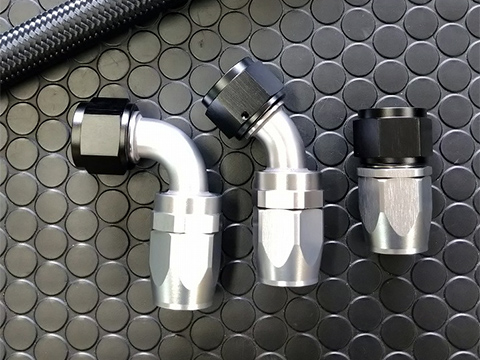

  • BLACK X SILVER FITTING

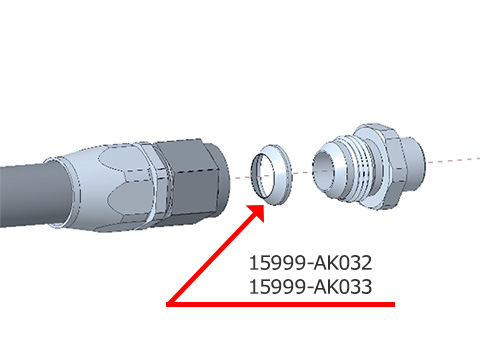

  • CONICAL SEAL

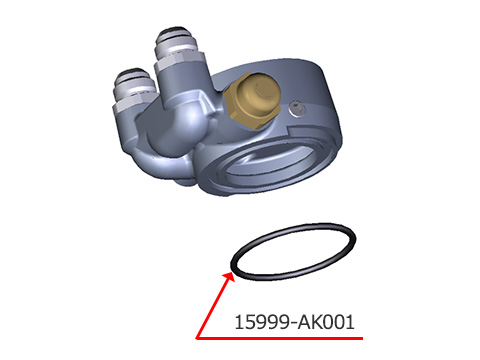

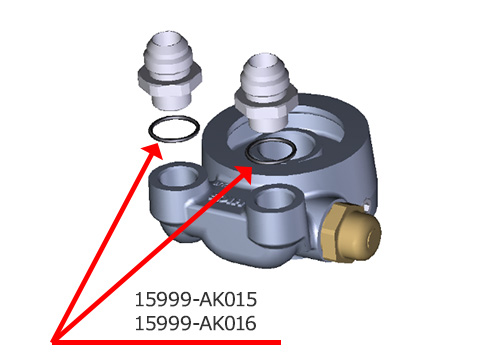

  • O-ring for Oil Cooler Kit

O-ring for Oil Cooler Kit

【For D60 O-ring KIT】
15004-AF111:S Type O/C KIT VAB WRX STI BLK
15004-AH104:S Type O/C KIT FK8 CIVIC TYPE-R BLK
15004-AN103:S Type O/C KIT BNR32 BLK
15004-AN104:S Type O/C KIT BCNR33 BLK
15004-AN105:S Type O/C KIT BNR34 BLK
15004-AS102:S Type O/C KIT ZC33S BLK
15004-AT113:S Type O/C KIT GXPA16 BLK

O-ring for Oil Cooler Kit

【For D56 O-ring KIT】
15004-AF106:S Type O/C KIT GDB C-E BLK
15004-AF107:S Type O/C KIT GDB F EJ207 BLK
15004-AF110:S Type O/C KIT GRB BLK
15004-AH103:水冷 OIL COOLER KIT JW5 S660 BLK
15004-AN124:S Type O/C KIT SINGLE Z34 VQ37VHR BLK
15004-AT014:S-Type OIL COOLER KIT ZN8/ZD8
15004-AT110:S Type O/C KIT ZN6/ZC6 for NA BLK
15004-AT111:S Type O/C KIT ZN6/ZC6 for S/C BLK
15004-AT112:S Type O/C KIT ZN6E for S/C BLK

Notes for general Oil Cooler Kit installation.

Be careful before you buy

  • Cannot be installed for some vehicles.
  • Please check below instructions before purchase.

(1) Size of the Oil Filter instllation area screw.

Installable for 3/4-16 UNF or M20×P=1.5

(2) Attachment installing part

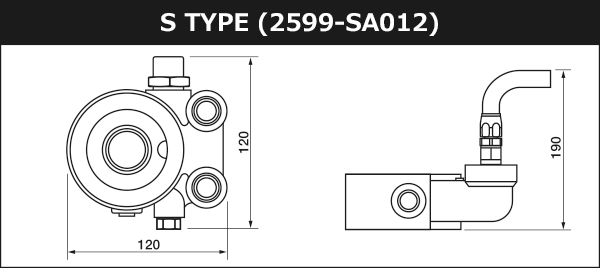

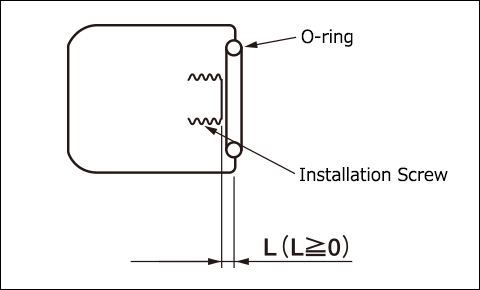

Need a clearance for engine block attachment installing part as shown in the diagram on the right (unit:mm).

(3) Oil Filter

Be careful not to set the screw part stick out of the stock filter O ring.

Parts for Oil Cooler

Select Appropriate Core size for Vehicle's Specifications

The oil temperature must be strictly managed for a tuned engine. For proper oil temperature management and an oil cooler is a must item. Not only for a tuned engine but also for a stock engine, the engine performance stability and engine oil durability are greatly affected by oil temperature management. For proper management, HKS offers 17 different sizes of high performance oil cooler cores. Their cooling performance is highly reliable, and a countermeasure to the internal resistance is adequately taken. Select one to meet your needs and vehicle's specifications.

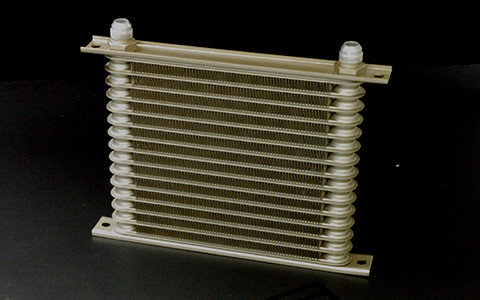

Oil Cooler's Core Size

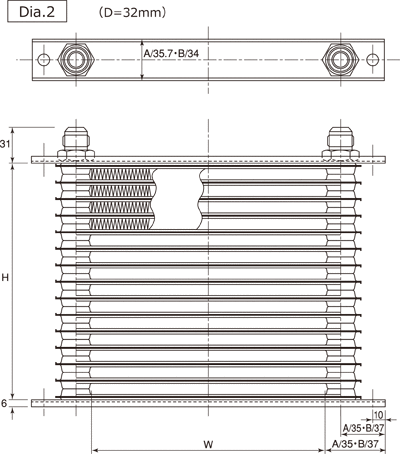

The size of the oil cooler is the core itself, which does not include a bracket, etc. Actual outer size includes a bracket's length, hose's installation parts, etc. See the diagram 1 and 2 below.

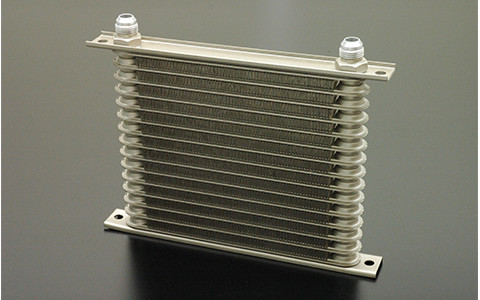

OIL COOLER CORE

RECOMMEND ITEM

▲
