【F-CON V Pro Ver.5.0】
F-CON V Pro – The Next Generation ECU. Now upgraded with support for electronic throttle, direct injection, and coordinated control. Initially released as a dedicated model for 86/BRZ.
Overview
- The iconic F-CON V Pro returns—reborn as a next-generation ECU. Now equipped to handle electronic throttle, direct injection, and coordinated control. The first release is a dedicated model for the 86/BRZ (ZN6/ZC6). Future releases will include support for the GR86/BRZ (ZN8/ZD8) and a universal kit.
- Constructed from magnesium alloy, the case combines light weight with outstanding electromagnetic shielding. It also features waterproof and dustproof protection equivalent to IP65.
*This product does not guarantee full waterproof and dustproof protection. We recommend installing it inside the vehicle using the dedicated mounting bracket provided. - We switched the cables and communication adapter for monitoring and data transfer to USB Type-C, boosting communication speed.

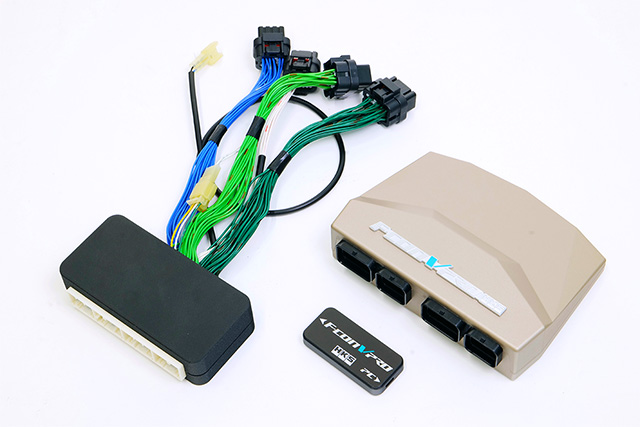

- A dedicated wiring harness is included for easy installation.
*The V Pro main unit and the dedicated wiring harness are sold separately.
*This product is available exclusively through authorized HKS Power Writer dealers.
*A dedicated communication adapter and the F-CON V Pro 5.0 Power Writer are required for setting adjustments and other configuration changes. For more details, please contact your nearest HKS Power Writer dealer.
Features
- Supports dual-channel electronic throttle control for enhanced precision and reliability.
- Provides control for up to 8 direct injection injectors. Ideal for high-performance setups.

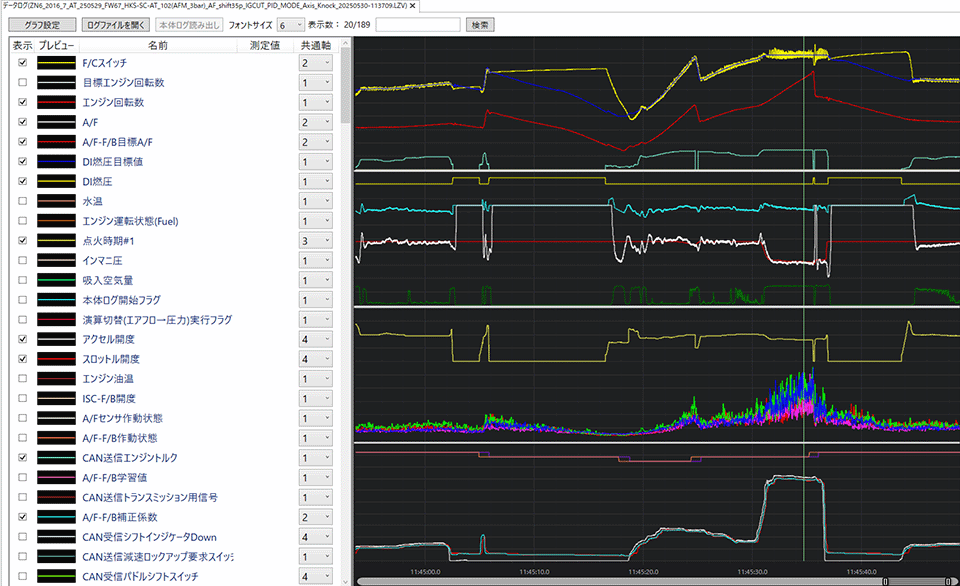

- The V Pro unit features a built-in logging function capable of recording up to 80 parameters for 8 hours, with sampling rates starting from 10 milliseconds. When used with the dedicated Power Writer software, up to 400 parameters can be monitored and logged—an invaluable tool for precise tuning.
- Built-in data protection ensures your settings are safely secured.

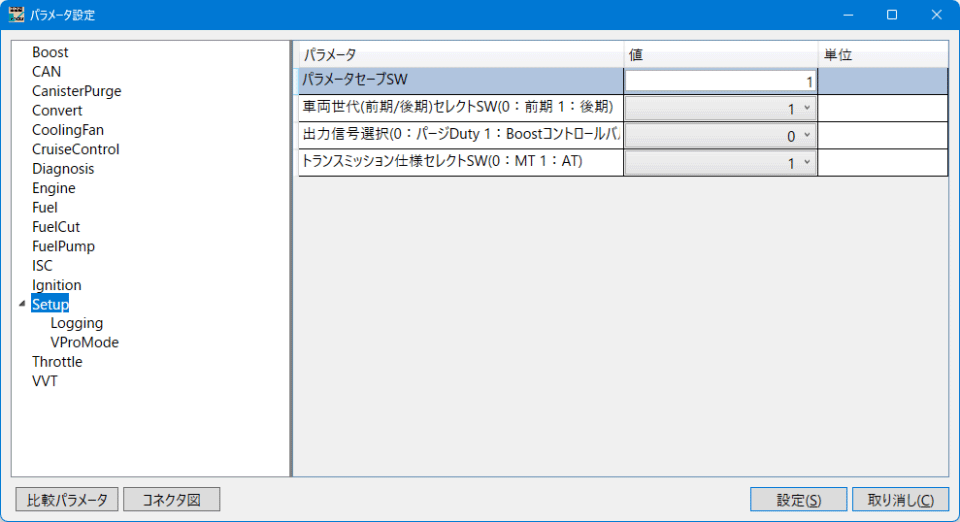

- Pre-configured base setting data is available. Simply select the appropriate file for your vehicle (early or late model, MT or AT), and the engine can be started immediately—greatly reducing setup time.
*Tuning must be adjusted to match the vehicle configuration and usage conditions.
*A/F sensor is required when performing tuning. Recommended: A/F Knock Amp. (Part No. 44006-AK004)
*To make full use of the A/F feedback control, we recommend keeping the A/F sensor installed even after tuning is complete. - Features a wide range of functions such as flat shift, anti-lag, launch control, exhaust popping, pit rev limiter, and ignition cut. These can be optimally tuned to suit your vehicle’s specifications and intended use.
*The above features may cause considerable strain on the catalytic converter and engine. Please exercise caution during tuning and operation. We also recommend considering our engine parts, such as our stroker kits “HKS Capacity Upgrade Kit,” to support enhanced performance.
Gallery

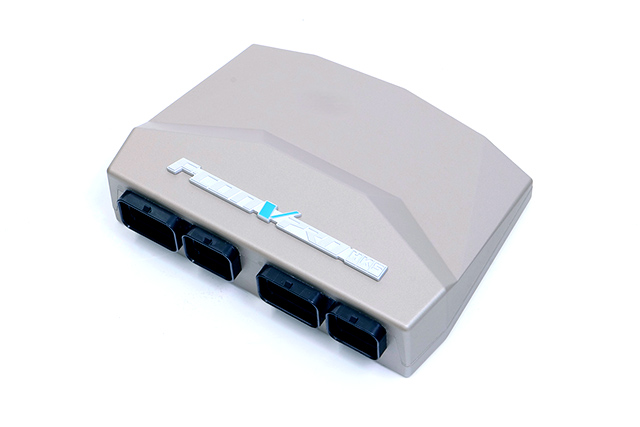

F-CON V Pro Ver 5.0 Main Unit

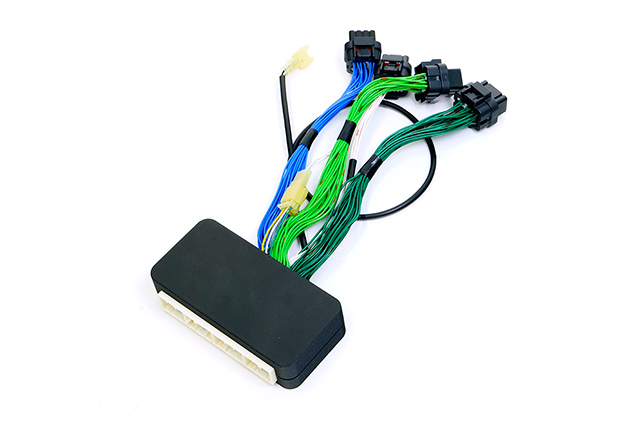

*Emblem is provided as an optional accessory.Dedicated Wiring Harness for 86/BRZ (ZN6/ZC6)

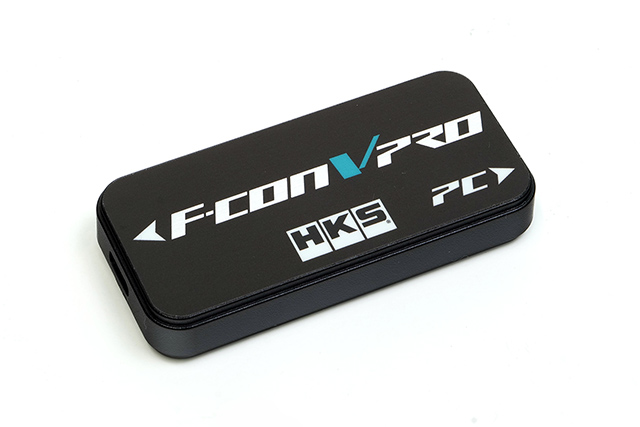

Dedicated Communication Adapter

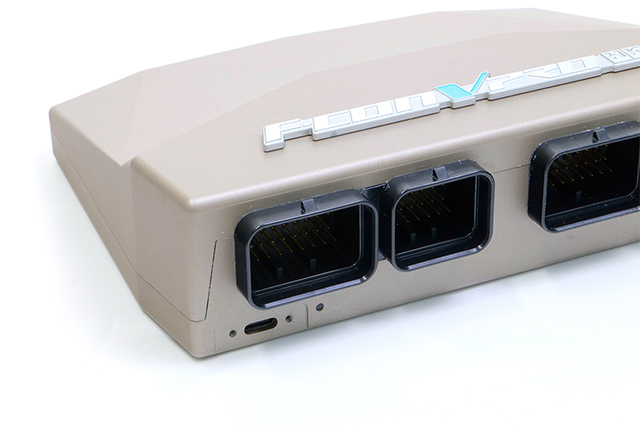

High-speed communication achieved through USB Type-C

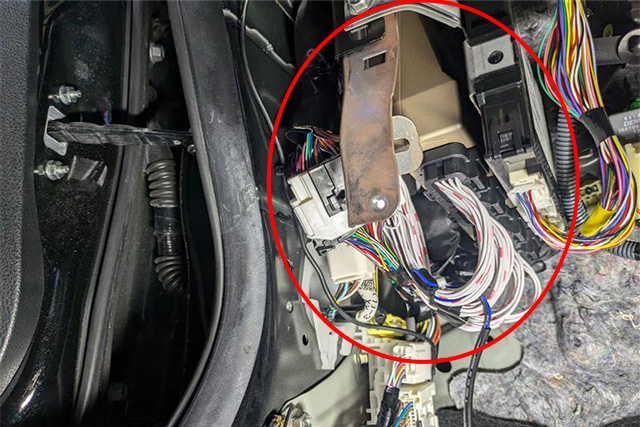

*Use only the supplied communication cable.Vehicle Installation
Can be securely mounted behind the passenger side glove box using the dedicated bracket.
