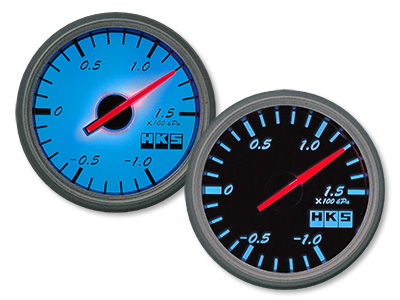

* This is a photo of φ52 meter. The scale of the φ60 meter is different.

DIRECT BRIGHT METER

[DIRECT BRIGHT METER]

HKS Direct Bright Meter is mechanical gauge with Light Emitting Diode type illumination.

HKS Direct Bright (DB) Meters are Electro-Luminescent version of the popular 60mm mechanical unit and is available for boost, pressure and temperature monitoring. DB meters are offered in either a white face with black text, or a black face with white text. The EL lighting technology emits a soft-blue illumination that provides excellent visibility during night time driving. DB meters incorporate a direct sensor input design for simplicity, reliability and accuracy.

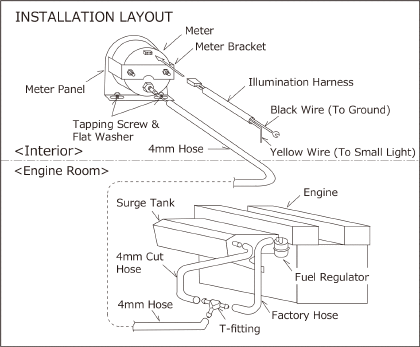

■44004-AK001, 44004-AK002 boost gauge

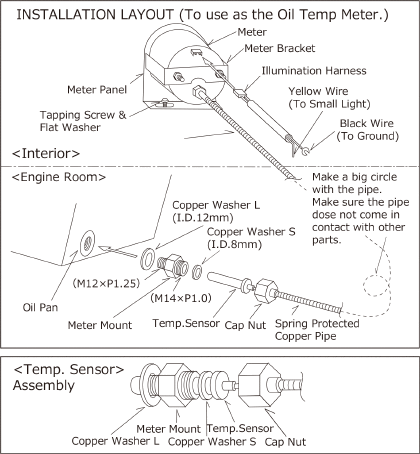

■44004-AK003, 44004-AK004 thermometer

* M12×P1.25 FITTING is the standard atachment.

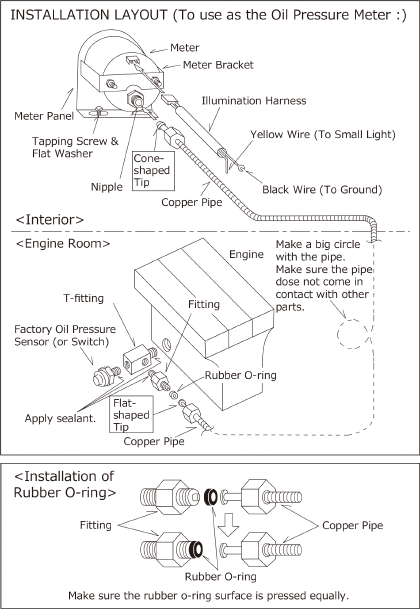

■44004-AK005, 44004-AK006 manometer

* All meter has the meter panel. (It can't be used for 53002-AK001 display stand)


* PT1/8 Fitting and T-fitting are included.
