R35 PARTS

ACTIVE TORQUE SPLIT COMPUTER
  • The 4WD system of the R35 GT-R is electronically controlled. The front torque distribution is controlled by the drive condition. ATSC is the device to control the front torque distribution to be an appropriate level.

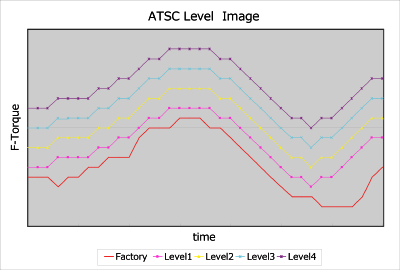

  • Front torque distribution is available in 4 levels.
    Just press a switch to change the setting level.
    The number of the LED blinking represents the setting level.

Features

  • Oversteering during a high load driving can be overcame.
    Therefore, stable driving under high load is possible.
  • Recommended for a highly tuned vehicle (GT800SPEC / GT600PACKAGE / GT570PACKAGE)
    Proper torque distribution can optimize the engine performance.
  • Simple installation.
  • ATSC controls the torque when the speed goes beyond 50km/h without applying a brake. It won't lead instability at start or during a low speed driving.

Performance

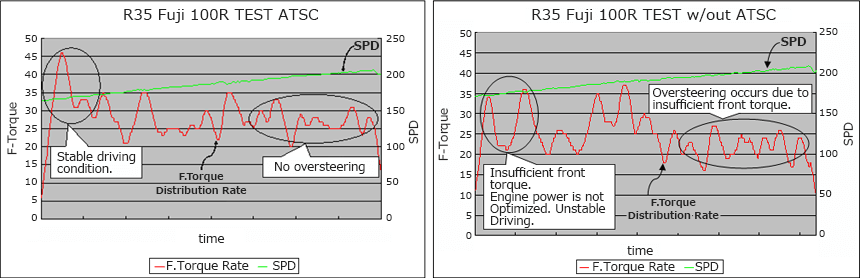

Fuji Speedway 100R Drive Test

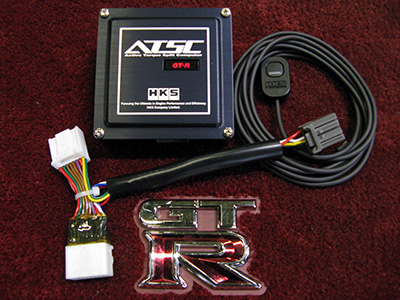

Parts

  • Coupler-ON Harness
  • Main Unit
  • ON/OFF Switch

Confirmed car

Vehicle Type Engine Year Remarks
GT-R R35 VR38DETT 07/12-

Installation

Install the main unit to the E-TS Unit underneath the driver's seat using the Coupler-ON Harness.
Required installation time is approximately 2 hours.
