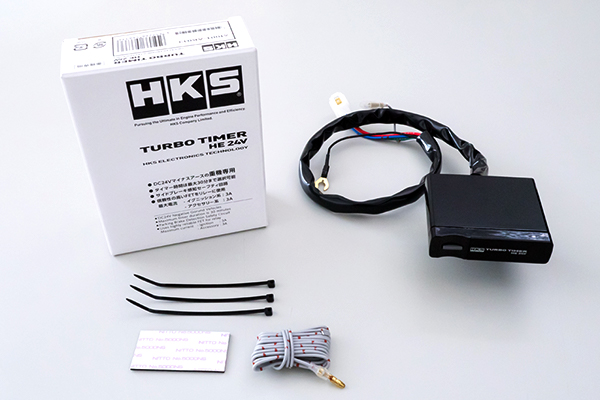

【TURBO TIMER HE 24V】
Newly set the turbo timer specially for heavy machinery from revising the existing turbo timer used in the automotive.
It can be possible to provide a stable operation even in a harsh environment.
Features
- Employing the FET Relay
It achieves stable operation by using a reliable FET relay even in an environment where vibrations often occur.
Maximum current *Ignition line: 3A *Accessory line: 3A - Dust Prevention Switch
Reliable switch operation can be possible by equipping the dust prevention switch with the product. - Meet the operating voltage of the heavy machinery
Meet the operating voltage of the negative earth of maximum DC 32V under the heavy machinery of 24V.
Functions
- Turbo Timer
5 time ranges selectable between 1, 3, 5, 10, and 30 min. - Battery constant voltage protection
A timer will stop automatically when the battery voltage gets low (under 18V). - Safety Circuit
The engine stops when releasing the parking brake while the turbo timer is running.

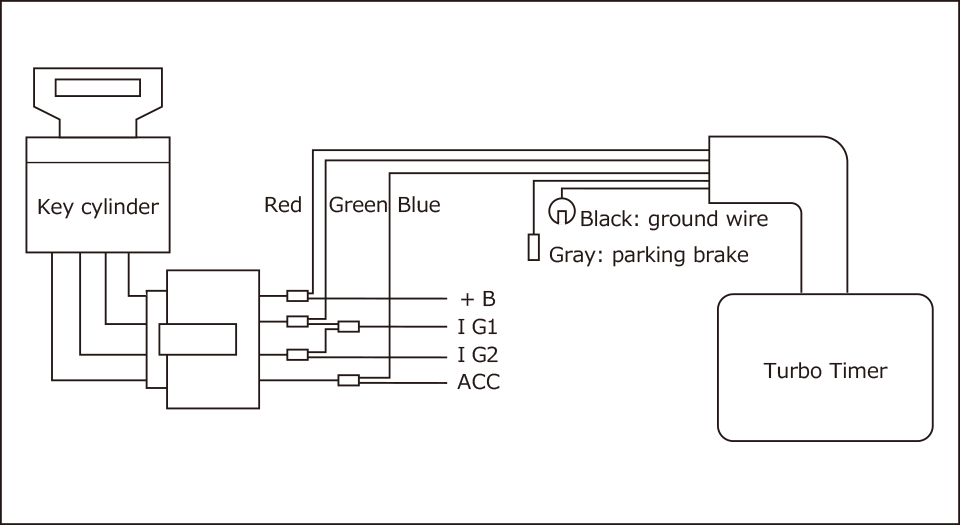

Wiring Diagram
![](images/layout.gif)
Operation confirmed models
Manufacturer | Type of vehicle | Model | Model Year |
---|---|---|---|
KOMATSU | Wheel loader | WA100-3 | |
WA100-5 | |||
WA100-7 | Jan. 2016 | ||
Hydraulic shovel | PC200-10-AC | Mar. 2015 | |
PC200-10 |
Note: Please confirm the maximum current of the ignition line (green) and accessory line (blue) is not over 3A when using the product on other unconfirmed models.
