CAMSHAFT + VALVE SPRING SET

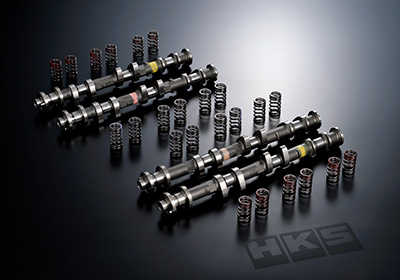

[Camshaft + Valve Spring Set]

for VR38DETT/R35 GT-R

This product was designed for high performance without losing the power at all engine RPM range and with well-balanced power curve. Using the Valve Spring designed for this specific engine and this newly designed and high lift camshaft can dramatically improve the performance.
Furthermore, once this product is combined with the HKS STEP2 parts and GT800 Full Turbine Kit, the boost pressure can provide smooth and quick engine power increase and achieve 850ps or more.


Features

POINT-1 HKS Original Materials

  • Exclusive chill camshaft material for HKS is used.

POINT-2 Must be used with the special Valve Spring.

  • Duration and valve lift were both designed larger than a stock.
  • The Valve Spring included in this set must be used with this high lift camshaft.

POINT-3 Optimized Camshaft Profile

  • Lift volume was decided after the cylinder head measurement and flow test.
  • Duration was decided to be well-balanced with a selected lift volume on the power curve at all range.
  • The camshaft profile was optimized to clear points of the valve flow and/or cam lobe friction.

POINT-4 Stock Valve Timing.

  • The knock pin phase to position the cam pulley is the same as a stock so the valve timing can be same as a stock.
  • The cam sensor trigger position is the same as a stock so the malfunction of the stock ECU won't happen.

POINT-5 Higher Reliability by In-house Design & Production

  • HKS controls from the production, inspection, package, and shipment for quality assurance.
  • MADE IN JAPAN (HKS In-house Production)
Specification
  Stock HKS
IN Valve Lift (mm) 9.2 11.0
EX Valve Lift (mm) 9.5 11.0
IN Valve Duration 238° 270°
EX Valve Duration 248° 278°
Base Radius (mm) 35.5 35.5
IN-VP (mm) 2.6
EX-VP (mm) 8.7

STEP2 CAMSHAFT ENGINE OUTPUT

Test vehicle specification

GT800 FULL TURBINE
FORGED PISTON+CONROD STEP2

SUPERIOR SPEC-R
EVC for R35
FUEL UPGRADE KIT

INTERCOOLER KIT
FULL CONTROL SYSTEM
SUPERFIRE RACING M45HL
