GT SUPERCHARGER

GT SUPERCHARGER Universal Kit

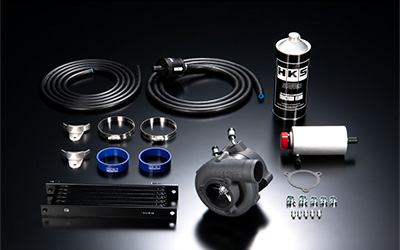

It is a kit that has main unit of GT2 SUPERCHARGER and the traction oil related parts. Please use this kit for a vehicle that's not in the Vehicle Specific Kit.

COMPLETE PARTS
  • Main unit
  • Traction Fluid I 800ml
  • Oil cooler
  • Hose Assy for Traction Fluid×2
  • Oil Tank
  • Others

(* Pulley is not included.)

MODEL MAX IMPELLER
SPEED		 MAX PRESSURE
RATIO		 MAX
FLOW		 POWER
RANGE		 DRIVE UNIT
RATIO		 UNIT
WEIGHT
rpm - kg/s ps - kg
GTS7040 110,000 2.7 0.51 150～400 9.444 4.2
GTS7040L 110,000 2.7 0.51 150～400 9.444 4.2
Characteristics Pulley Test Restrictor Test Specification
GT2 SUPERCHARGER MAIN UNIT
GT/GT2 SUPERCHARGER PULLEY

Other Parts

These are other supporting parts for installation for GT/GT2 Supercharger Universal Kit. The parts needed would be different for each vehicle and might have to modify the parts.

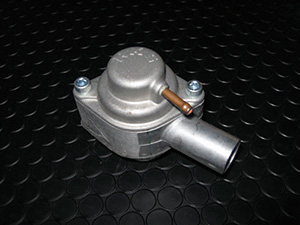

  • STD BLOW OFF VALVE STD BLOW OFF VALVE

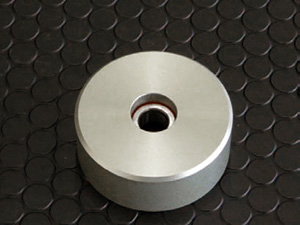

  • PULLEY Φ85

    PULLEY Φ85

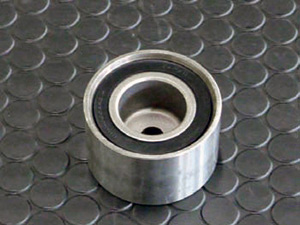

  • PULLEY Φ70

    PULLEY Φ70

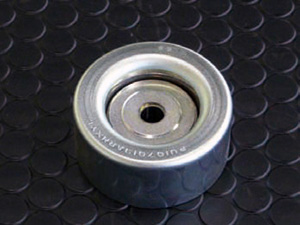

  • PULLEY Φ60

    PULLEY Φ60

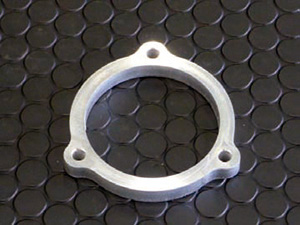

  • BLOW OFF VALVE FLANGE

    BLOW OFF VALVE FLANGE

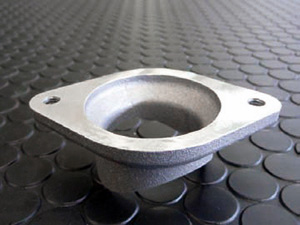

  • SUCTION FLANG

    SUCTION FLANG

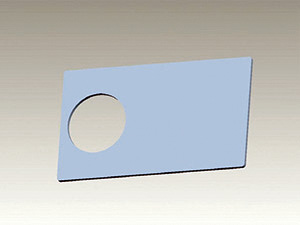

  • Braket GTS8550/7040/4015HP

    Braket GTS8550/7040/4015HP

GT/GT2 SUPERCHARGER SUPPORT PARTS
