New suspension kit is aimed to provide better street ride and new level of certaintly for legendary JIMNY. Enjoy driving with firmer and more reliable handling.

HIPERMAX G+ LOW DOWN


  • ＜Product Basic Structure＞
  • ●Single Tube Damper Assembly
  • ●Special Low-down Style Spring
  • ※The stock upper mounts are used.
 HIPERMAX G+

Features

  • Driving on the paved road with the stock suspension, driver may feel uncomfortable due to the vehicle behaviour: yaw, pitch and excessive body roll.
  • The kit lowers vehicle 30mm-35mm and lowers center of gravity. Front and back spring rates raised to 39N/mm - the best match for single tube shock absorber and quick damping is a great imrovement over unstable factory suspension.
  • Excessive body roll was reduced, cornering and overal vehicle behaviour was improved drastically.
  • 30-way adjustable damping force allows to fine tune suspension for the best personal driving experience.

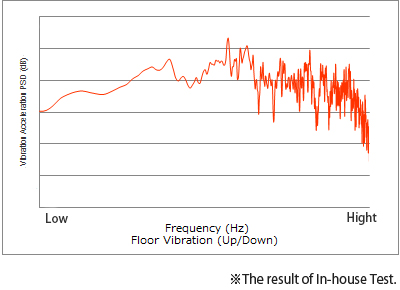

Frequency measured by G-sensor

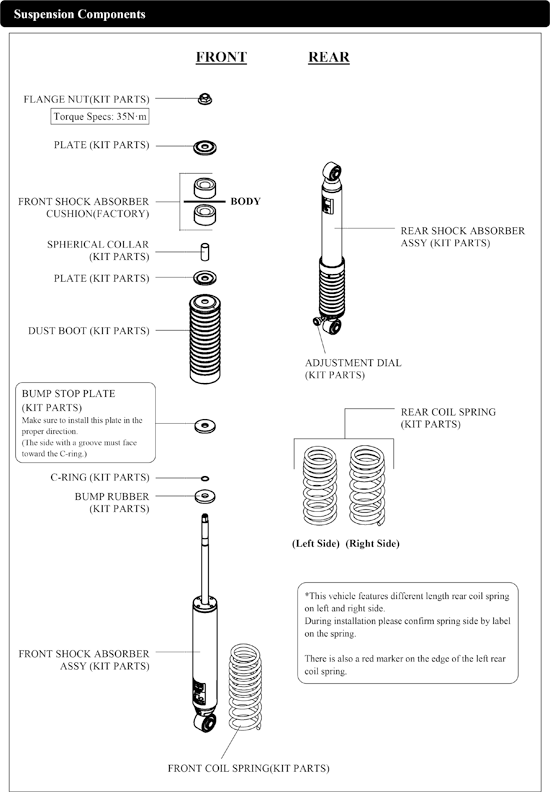

Kit Parts
Frequency measured by G-sensor Kit Parts

Setting Chart
Setting Chart
VEHICLE MODEL ENGINE YEAR SPRING RATE
[N/mm (kgf/mm) ]		 SPRING VEHICLE'S HEIGHT
Default(High-Low)		 CODE NO. UPPER
MOUNT		 UPPER
MOUNT		 SPRING RATE
CHANGE		 Remarks
JIMNY JB64W R06A 18/7～ F=39(4) R=39(4) Specially-developed F=-30 R=-35 80270-AS001 F=Stock Rubber
R=Stock Rubber		 N/A N/A Equipped with damping force adjustment 30 levels.
Please use a stock bump rubber.
