Perfect Balance of Dynamic Style and Ride Comfort on the Street

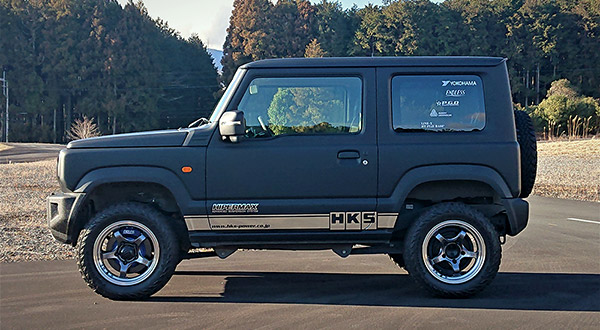

for JIMNY (JB64W) ＜Product Basic Structure＞ ●Single Tube Damper Assembly ●Lift Up ※The stock upper mounts are used.

Features

• Achieved to emphasize signature style of Jimny by increasing the ride height by 20-25mm as well as to offer the setting that perfectly matches to the spring with increased spring rate
• Reduced excessive roll and yaw with reliable damping force offered by a single tube shock absorber, also focused on ride comfort on paved roads
• With 30 steps of damping adjustment, this setup offers relaxed and comfortable ride as well as high-performance with tight ride control, depending on your preference

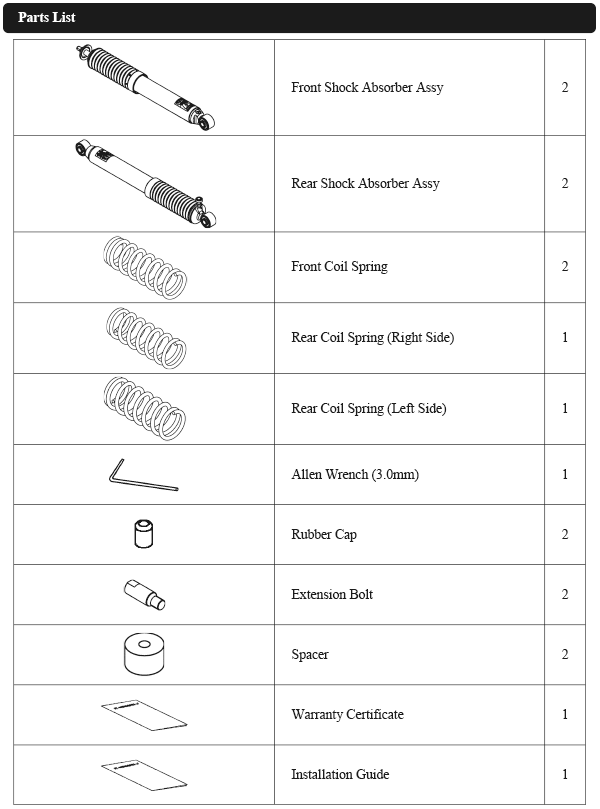

Kit Parts

Vehicle	Model	Engine	Year	Spring Rate [N/mm (kgf/mm)]	Spring	Vehicle's height Default (High-Low)	Code No.	Upper Mount	Upper mount Assy before shipment	Spring Rate Change	Remarks
JIMNY	JB64W	R06A	18/7～	F=42(4.3) R=39(4)	Special shape	F=+35 R=+20	80270-AS003	F=Stock Rubber R=Rubber	No	F=No R=No	This vehicle is basically selling for the Japanese domestic market only (as Kei car).
