Dynamic lifted-up style with ensuring comfort in street driving.

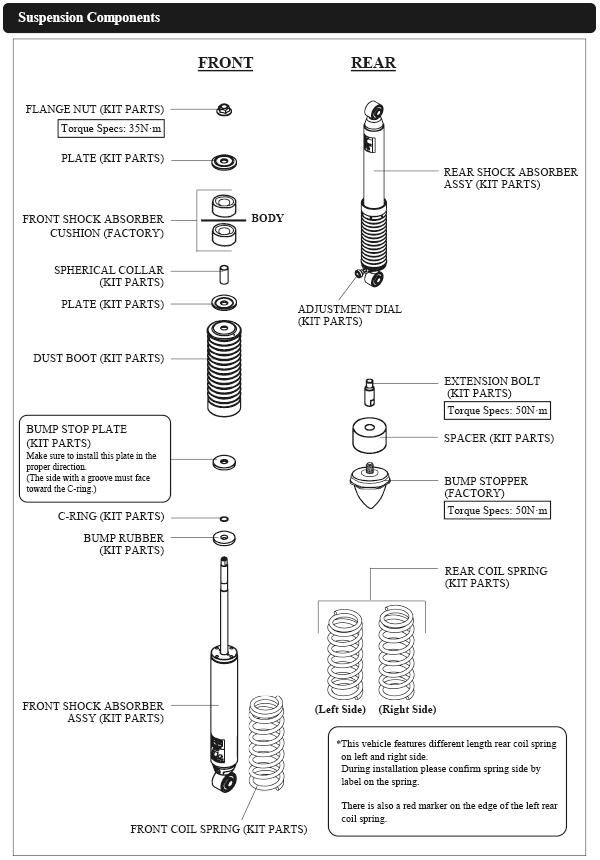

for JIMNY (JB74W) ＜Product Basic Structure＞ ●Single Tube Damper Assembly ●Lift Up ※The stock upper mounts are used.

Features

• Lifting up the vehicle height 20 to 25 mm higher makes JIMNY SIERRA more stylish and it also set to a good match with the high rate spring.
• Reduce excessive body roll or yawing due to the strong damping force made by the single-tube shock absorber. It also provides a comfortable ride on the paved road. Significantly improved the stability when turning by reducing the degree of body roll and speed.
• Offers 30 steps of adjustable damping force that can be selected for your preferable ride.

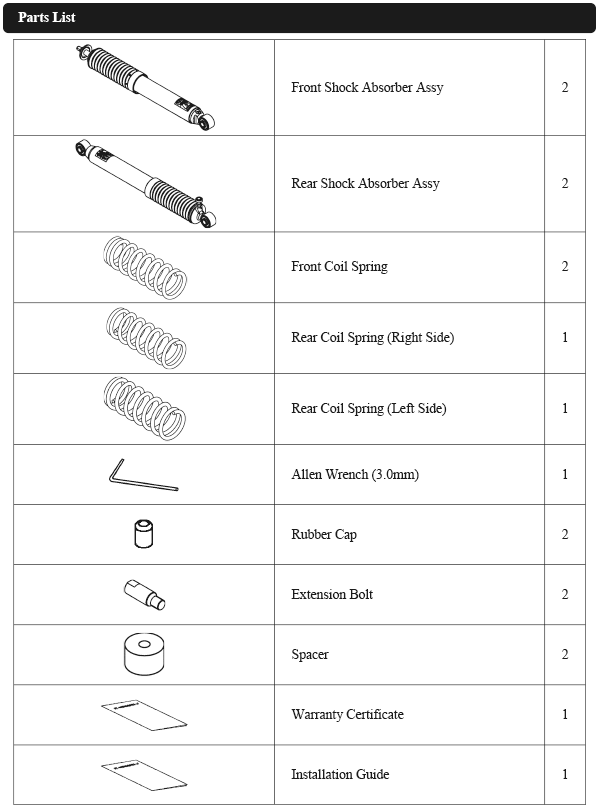

Kit Parts

Vehicle	Model	Engine	Year	Spring Rate [N/mm (kgf/mm)]	Spring	Vehicle's height Default (High-Low)	Code No.	Upper Mount	Upper mount Assy before shipment	Spring Rate Change	Remarks
JIMNY SIERRA	JB74W	K15B	18/7～	F=45(4.6) R=39(4)	Special shape	F=+25 R=+20	80270-AS004	F=Stock Rubber R=Rubber	No	F=No R=No
