HKS GT TURBINE
[ HKS GT TURBINE SERIES ]
The selection of universal turbochargers from 500ps to over 1000ps has been developed.
Concepts
- Big turbocharger for inline 6, V8, V6 and inline 4 tuning engines.
- HKS takes on the challenge of reaching high power zones that have not been covered previously.
- The turbo system offers a comprehensive application in some of fields, such as drag racing, drifting and track time attack.
Features
- Compared to previous HKS turbochargers, this turbocharger provides a massive charging air flow despite the small diameter of both compressor/turbo wheels.
- The V-band turbo housing is made of stainless steel. (*Material may vary from model to model.)
- Recommended for those who use big singles for track day.
- CHRA Bearings are ball bearings.
- The GTIII-5R and 4R designs have a machined aluminum ported shroud that combines the bell mouth design and T51R type recirculation channel to provide both anti-surging and smooth intake air flow.
- A special, highly corrosion-resistant matt black coating treatment on the surface of the compressor housing prevents aluminum corrosion over time. It also combines with a champagne gold anodized ported shroud to unify the design exterior.
-
High corrosion resistant anodized aluminum coating (Matt Black)
-
Machined aluminum ported shroud (Champagne Gold)
-
T51R type recirculation channel
[ Highly corrosion-resistant matte black coating treatment]
- A highly corrosion-resistant matt black coating treatment is applied to protect the exterior of the compressor housing from corrosion.
- This coating is a surface treatment with the ability to provide no surface corrosion even after 240 hours in accelerated corrosion tests.(combined cycle)
*In-house data
[ Bellmouth shape ported shroud ]
- The ported shroud design inherited from the TO4Z and evolved in the GTIII-4R and 5R.
- The standard ported shroud has a piped inlet, but the bell-mouth shaped intake air flow channel with a wide inlet diameter is shaped as a "hole" to allow intake air to be taken in through the suction pipe.
- The structure also makes it easy to produce the turbo spool sound, also known as the 'T51R sound'.
*The volume and sound of the intake sound differs depending on the model. *All models have HKS ported technology.
The bell-mouth ported shroud
The standard ported shroud

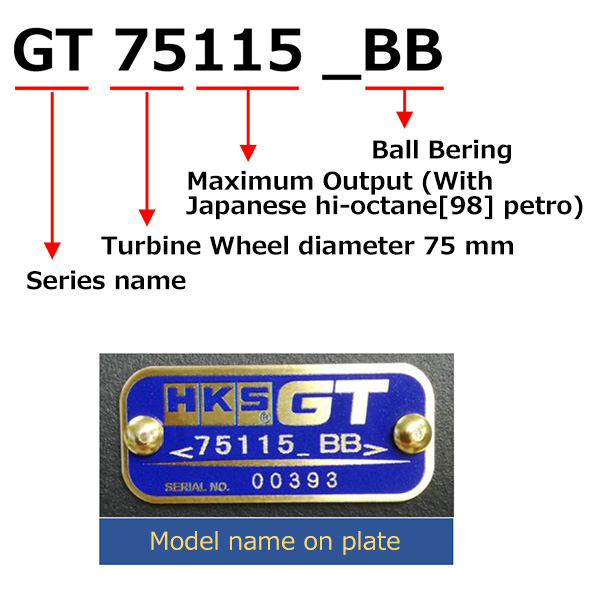

[ Origin of the model name ]
The model name is based on maximum output (compressor side) and turbine wheel diameter.

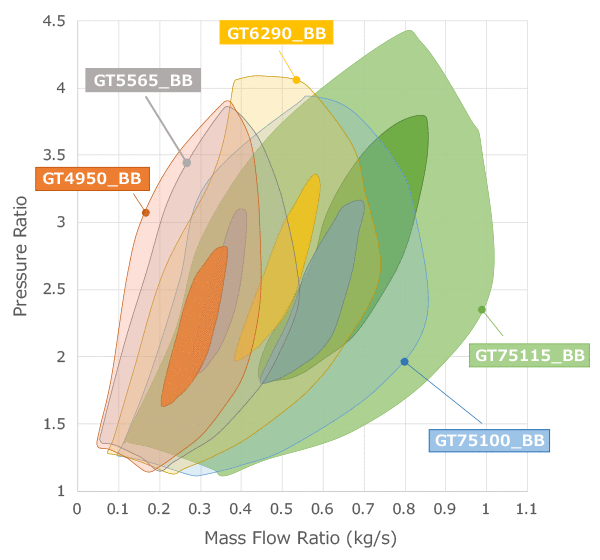

[ Compressor map ]
Wide maximum efficiency range extending from low boost pressures with a pressure ratio of 2 to high boost pressures with a pressure ratio of 3. Growth potential at high boost pressure.
[ Dimensions ]
Model | Output (ps) |
Compressor | Turbine | Inlet | Outlet | Watergate | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | A/R | Material | |||||
GT75115_BB | 1150 | 79mm | 98mm | 65 | 0.85 | 82mm | 75mm | 84 | 1.01 | Stainless Steel Copper |
V-Bamd | V-Bamd | Free Float |
1.15 | |||||||||||||
GT75100_BB | 1000 | 73mm | 91mm | 65 | 0.90 | 82mm | 75mm | 84 | 1.01 | Stainless Steel Copper |
V-Bamd | V-Bamd | Free Float |
1.15 | |||||||||||||
GT6290_BB | 900 | 68mm | 84mm | 65 | 0.75 | 68mm | 62mm | 84 | 0.61 | Stainless Steel Copper |
V-Bamd | V-Bamd | Free Float |
0.83 | |||||||||||||
GT5565_BB | 650 | 58mm | 71mm | 65 | 0.72 | 60mm | 55mm | 84 | 0.61 | Stainless Steel Copper |
V-Bamd | V-Bamd | Free Float |
0.83 | |||||||||||||
GT4950_BB | 500 | 48mm | 60mm | 65 | 0.70 | 54mm | 49mm | 84 | 0.72 | Stainless Steel Copper |
V-Bamd | V-Bamd | Free Float |
0.92 |
[ Upcoming sizes ]
○GT6290_BB: GTIII-4R compressor housing + turbo housing
○GT4950_BB/GT5565_BB: T25 flange turbo housing
○GT4950_BB: GTIII-RS compressor housing (inlet diameter 100mm)
○GT7095_BB: Turbo size planned to be between GT6290_BB and GT75100_BB.
GT75115_BB
[ GT75115_BB ]
- Assumed outputs
1100ps - Engine
RB26 (2.8L) / 2JZ (3.4L) - Features
Assuming high boost with the aim of 1000ps OVER, the compressor is V-band.
GT75100_BB
[ GT75100_BB ]
- Assumed outputs
1000ps - Engine
RB26 (2.8L) / 2JZ (3.4L) - Features
Aimed at 1000ps. with the same spool-up as the T51R SPL.BB with boost keeping at high rpm.
GT6290_BB
[ GT6290_BB ]
- Assumed outputs
900ps - Engine
RB26 (2.8L) / 2JZ (3.4L) - Features
Turbo characteristic between the GTIII-4R and the GTIII-5R; intercept is shifted to the high rpm side compared to the 4R, but there is no sagging at high rpm and maximum output is improved.
GT5565_BB
[ GT5565_BB ]
- Assumed outputs
650ps - Engine
RB26(2.8L)Twin turbo / SR20(2.2L) / 4G63(2.3L) - Features
The size is like GT3037 + α for 500ps Over.
GT4950_BB
[ GT4950_BB ]
- Assumed outputs
650ps - Engine
RB26 Twin / SR20 / EJ20 / G16E / VR38 Mirror Twin - Features
Upgrade from GT III-RS to aim for 500ps.
HKS parts for turbo flanges and piping components are set up. Please refer to the parts list required for installation. (*Parts list of support parts is included in turbos.)
