HKS Oil Cooler Kit for 86/BRZ NA engine was redesigned and is now offered at more affordable price.
Installation requires no major modification. All necessary parts for installation are included in the kit.

■Features

• Including the pre-assembled hose, bracket, and air guide and locating the core in front of the radiator enable an easy installation. Also, there is no major modification required to the chassis.
• Special spacer and center bolts were designed exclusively for this kit to install the oil cooler attachment without modification.
• The thin 15-layer core improves the cooling performance and makes installation easier.
• This kit is applicable only to the NA engine.
• The compatible oil cooler kits for the GT2 Supercharger Pro kit and the Bolt-on Turbo kit GTIII-RS, GT4525, and GT4135 are as follows;
  Model Year:  16/08-21/10 >>> Code No.  15004-AT112
  Model Year: 12/04-16/07 >>>  Code No.  15004-AT111

■The following parts are included

Oil Cooler Core / S-type Attachment / Spacer / Center Bolt / Banjo / Banjo Bolt / Bracket / Air guide / Accessory Parts

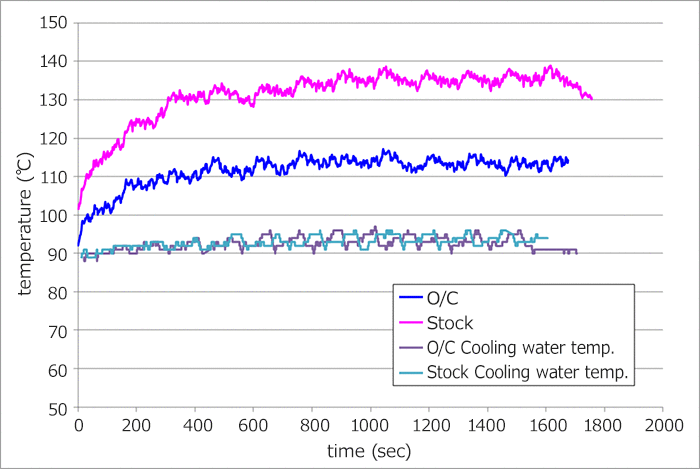

■The characteristics of oil temp. and the water temp.

* This is the result of the test HKS conducted. The result may vary depending on the test conditions.

●Test Data

Test Vehicle: TOYOTA 86
Specifications: LEGAMAX Premium / Premium Suction
Test Course: Fuji International Speedway Racing Course
Weather: Sunny
Temperature: 27℃

* The oil temperature of a vehicle without the oil cooler reached 140℃ 5 minute after start driving the course, and the vehicle had to go slow to cool the oil temperature down.
The oil temperature of a vehicle with HKS Oil Cooler was maintained around 115℃ through the 30 min test drive without any trouble.

Vehicle	Model	Engine	Model Year	Core Size・Row	Core Location	Type	Hose Size	Aluminum Air Guide	Code No.	Manual	Remarks
86	ZN6	FA20	12/04 -21/10	200x200x32・15	In front of the radiator	S type	#10	○	15004-AT110		For NA, E(16/8 models and later) - Small radiator support modification is necessary.
