R type INTERCOOLER
CIVIC TYPE R
CIVIC TYPE R FL5

R type INTERCOOLER

Code No. 13001-AH007





R TYPE INTERCOOLER & PIPING KIT for CIVIC TYPE-R FL5





■Features

Intercooler Core

  • A huge 22.4% increase in core’s area leads to immense improvement in cooling.
  • The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade.
  • The core is designed to be also installed with OEM piping

Piping Kit

  • Upon enlarging the pipe diameter and smoothing out the inner design in comparison to OEM we are able to increase power output.
  • The OEM hose is prone to expand under high boost, but aluminum pipe has completely solved the issue of pressure loss due to hose expansion.
  • The aluminum pipe is given a mirror buff finish, and the cast pipe and core feature the HKS logo, which gives a fantastic dress-up look.

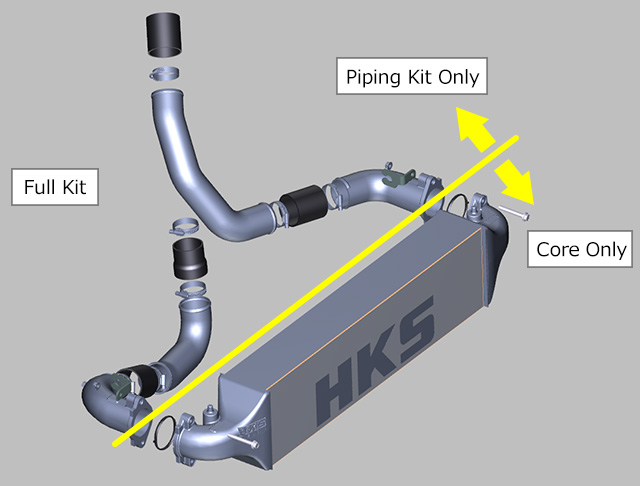

■Configuration



[Core Only]

  • Intercooler core
  • Masking sheet for logo spray

[Piping Kit Only]

  • Aluminum bent pipe (IN/OUT)
  • Cast pipe (IN/OUT)
  • Silicone hose
  • Hose band
  • Bracket (IN/OUT)
  • Special bolts and nuts

[Full Kit]

  • Core only + piping kit




■Important Notes

*1. To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required.
*2. To install the piping, it is necessary to shave the bracket on the vehicle body.
*3. For the FULL KIT, *1 and *2 must be met.





■Core Size Comparison

  HKS Stock
Exterior

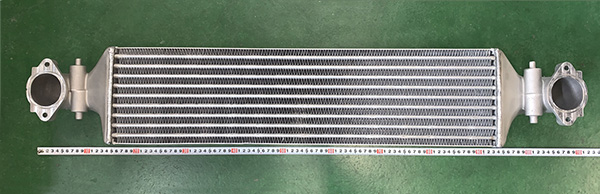

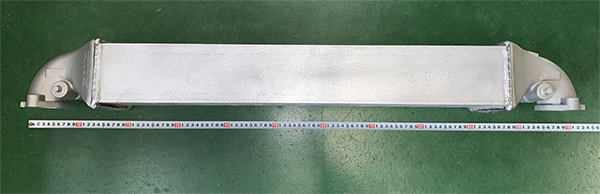

Material & Specs Core Size: 695 x 178 x 100
Core specs: 10 fins, 9 Tubes
Tank: Aluminum cast

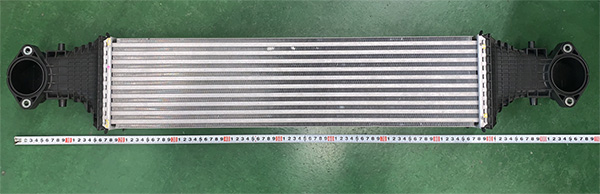

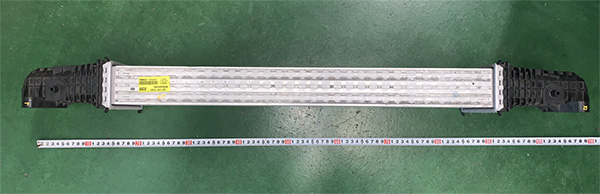

Core Size: 639 x 158 x 64
Core specs: 11 fins, 10 Tubes
Tank: Resin
Performance Data Power: 245[kW](333[PS]/6500[rpm]
Torque: 449.5[N・m] (45.9[kg・m])/3260[rpm]

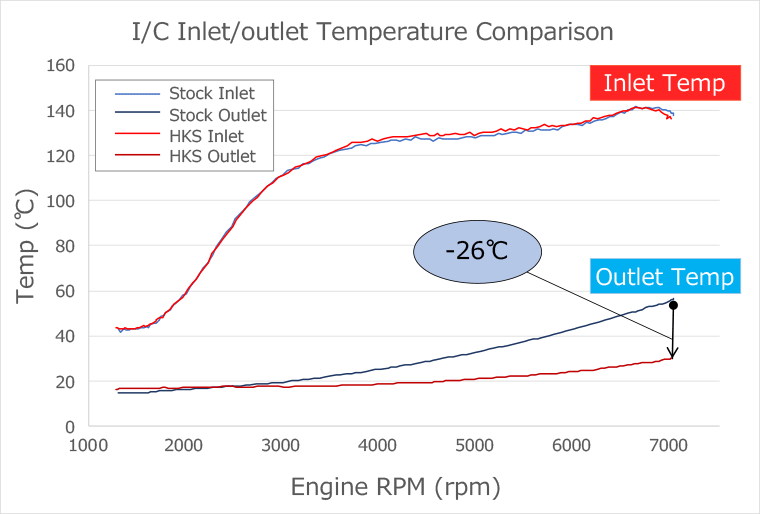

Cooling performance: I/C outlet 30.3℃ (7000[rpm])

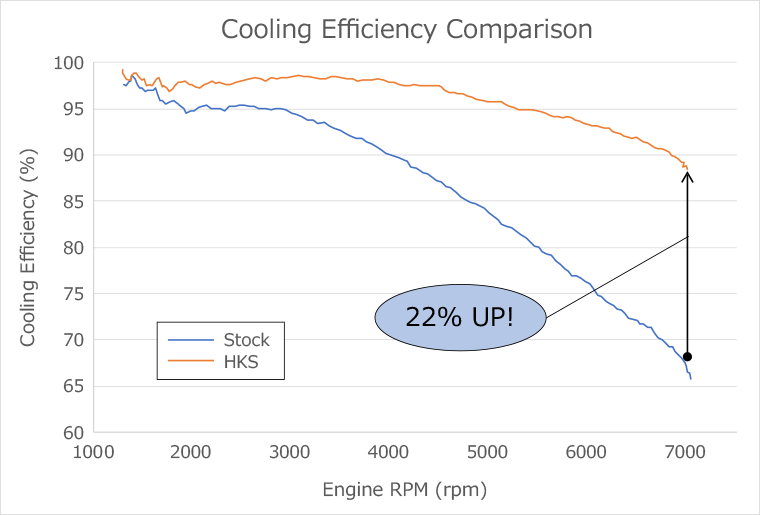

Cooling efficiency: 88%(7000[rpm])
Power: 243[kW](331[PS]/6420[rpm]
Torque: 445.8[N・m] (45.5[kg・m])/3360[rpm]
Cooling performance: I/C出口56.0℃ (7000[rpm])
Cooling efficiency: 67%(7000[rpm])

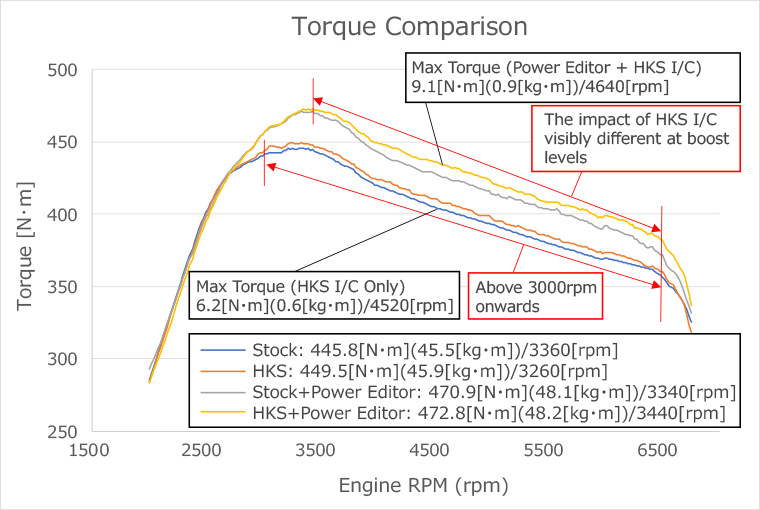

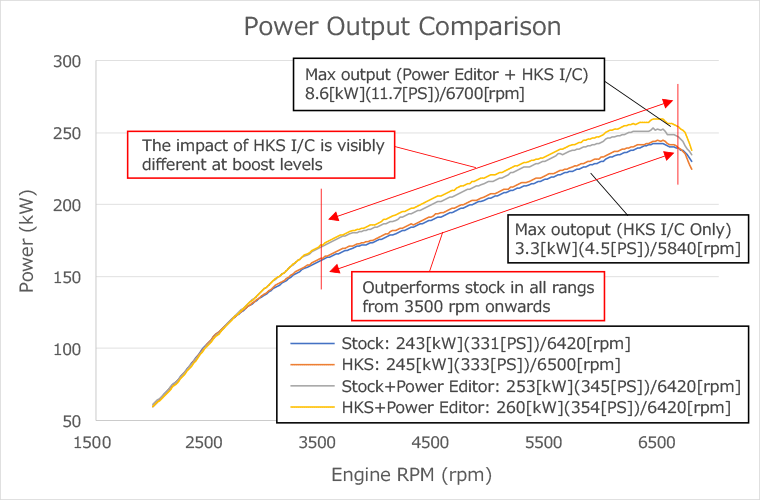

Performance Comparison

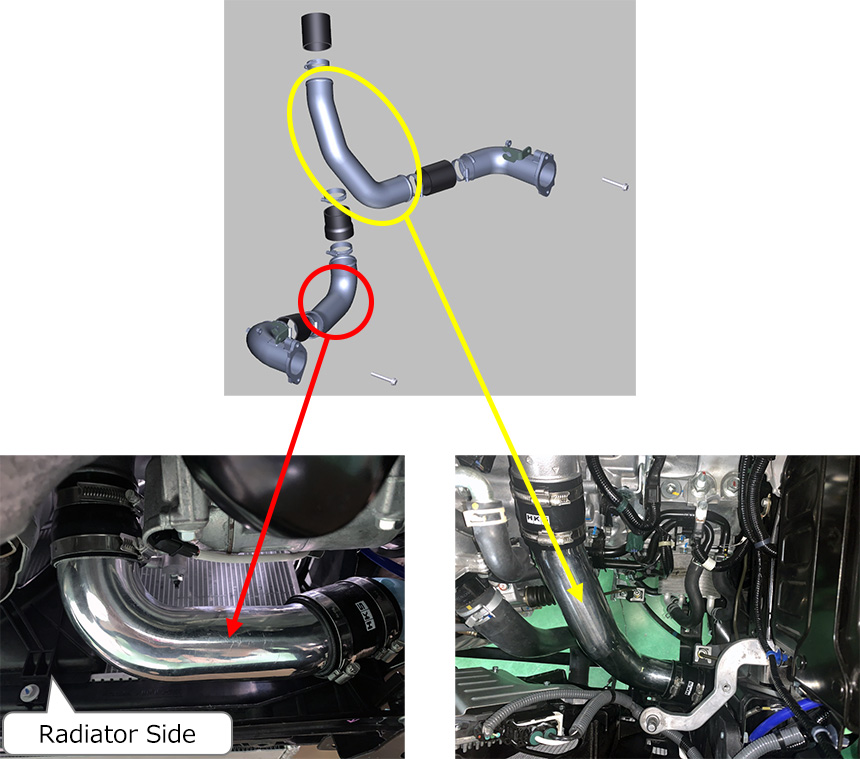

■Piping Comparison

  HKS Stock
Exterior

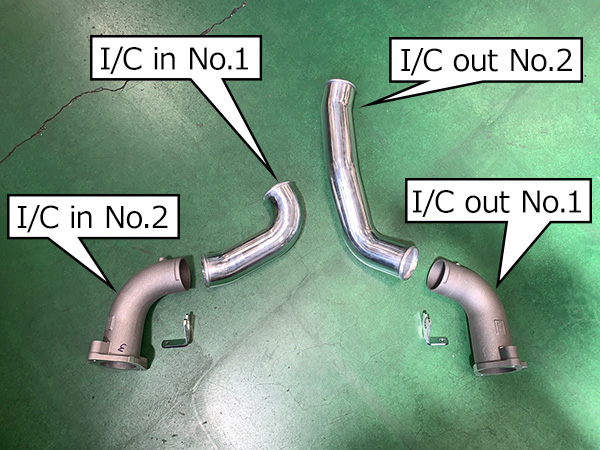

Material & specs in No.1:Aliminum bent pipe (inner diameter D60)
in No.2:Aliminum casting (bracket separate)
out No.1:Aliminum casting (bracket separate)
out No.2:Aliminum bent pipe

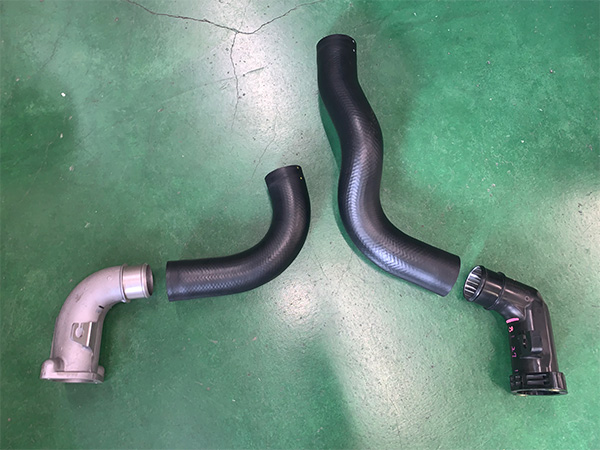

in No.1:Rubber hose (inner diameter D55)
in No.2:Aliminum casting (bracket separate)
out No.1:Resin (with bracket)
out No.2:Rubber hose

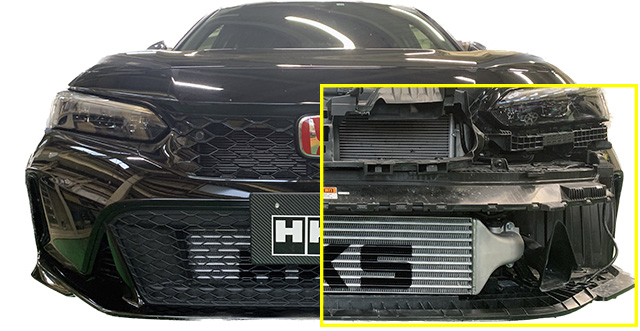

Installation Images





Vehicle Model Engine Model Year Type Core Size・Location Type Code No. Manual Remarks
CIVIC TYPE R FL5 K20C 22/09 - R type INTERCOOLER 695×178×100・Front mount (Factory replacement) R type 13001-AH007 Core + Piping Kit
