PIPING KIT
GR COROLLA
Explanation of the product Application chart
GR COROLLA GZEA14H

Code No. 13002-AT003







Boost-up specification enhances response and ensures secured piping





■Features

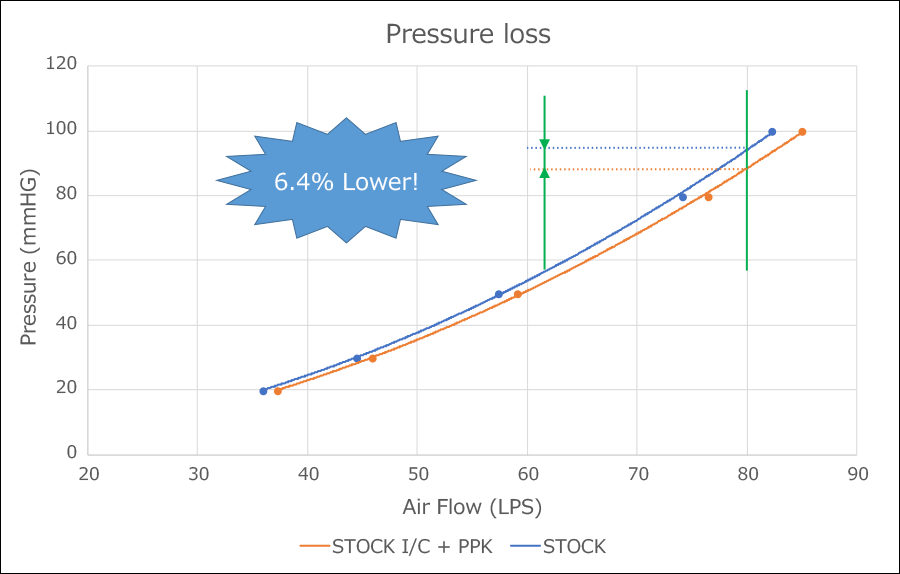

  • To accommodate higher output, the diameter has been enlarged from the stock diameter of 45 to 50. In addition, the layout has been designed to minimize bending, reducing pressure loss.
  • By replacing the parts where the stock hose is prone to coming loose with our aluminum pipes, the piping remains secured while driving.
  • A 3-cylinder engine is subject to a lot of vibration, so we used a 4-ply silicone hose to achieve high pressure resistance and vibration absorption.　
  • By replacing the plastic pipe parts with our aluminum pipes, durability is ensured during boost up.





■Parts Included

  • 1 inlet pipe
  • 2 outlet pipes
  • 4 silicone hoses





■Illustration

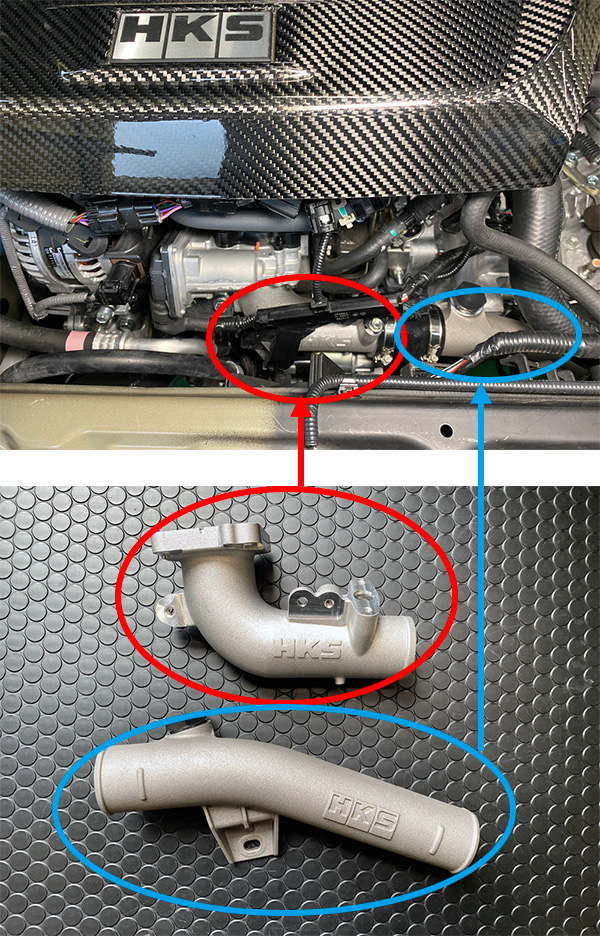

Inlet

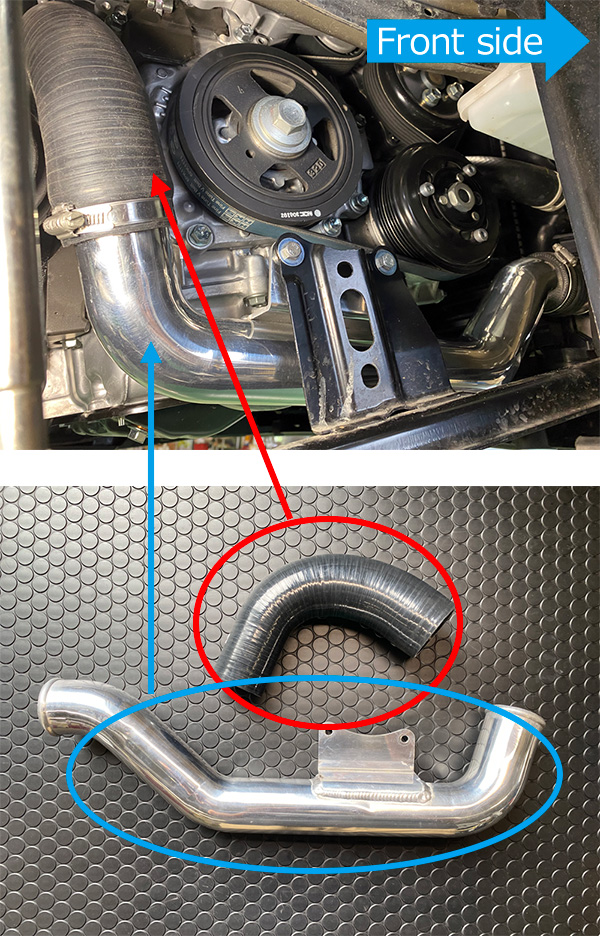

Outlet









Vehicle Model Engine Model Year Type Number of pipes Code No. Manual Remarks
Suction pipe In pipe Out pipe Recirculation pipe Super power flow
GR COROLLA GZEA14H G16E-GTS 22/12 - IC 1 2 13002-AT003 To be used with Stock I/C
