Water Cooled Intercooler
S660
Explanation of the product Application chart
S660 JW5

Water Cooled Intercooler

Code No. 13001-AH103





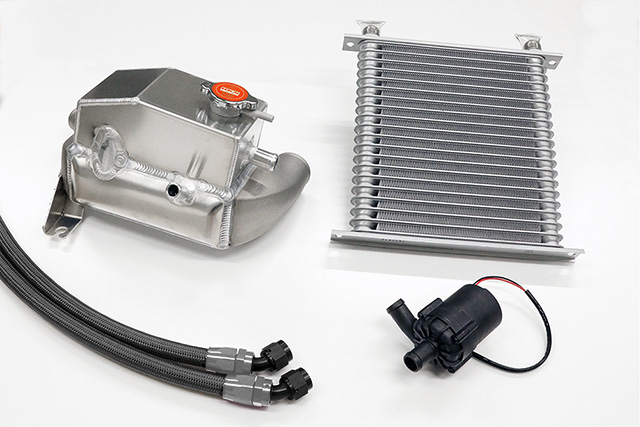

WATER-COOLED INTERCOOLER KIT BLACK×SILVER





Our water-cooled INTERCOOLER well-known for its excellent cooling performance, has been renewed with "lightweight black mesh hose."













■Renewal Points

Approximately 20% lighter than stainless steel mesh hose
　Stainless steel mesh hose (our product) 310g/m
　Black mesh hose (newly adopted product) 250g/m

  • This kit uses a black mesh hose and black and silver fittings.
  • The hose and fittings are pre-assembled, just like existing kits.
  • The angled fitting has a swivel structure that makes it easy to adjust twisting during installation.





■Features

  • By installing an HKS water-cooled intercooler, you can achieve stable cooling performance without being affected by the wind while driving.
  • By installing a separate radiator for the intercooler, there is no effect on the engine coolant temperature.



[Additional parts required]

  • Cooling water volume: Use about 3.5L coolant.
  • Relay: Usable power approx. 200W x 1
  • Fuse holder: Allowable current approx. 20A x 1
  • Connection terminal: Appropriate amount
  • Wiring cord: AV2.00sq, Maximum allowable conductor temperature 80℃ or higher, 5m





Achieves stable cooling compared to air-cooled intercoolers and significantly reduces intake air temperature.

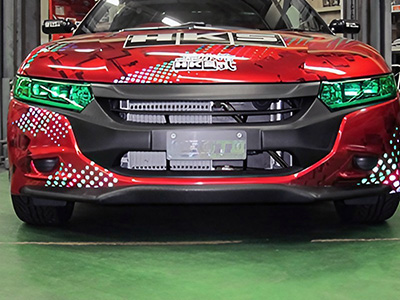

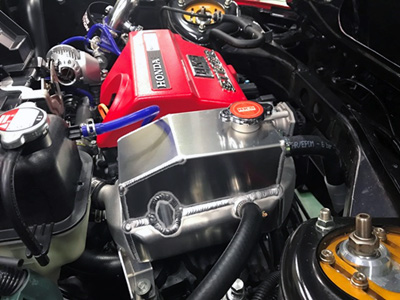

■Layout





■Test Data

  • When the HKS water-cooled intercooler is installed, stable cooling performance is ensured, and 20 minutes of continuous full throttle driving is possible without knock retard.
  • Compared to the air-cooled type, the core is smaller, and the intake temperature is more stable.

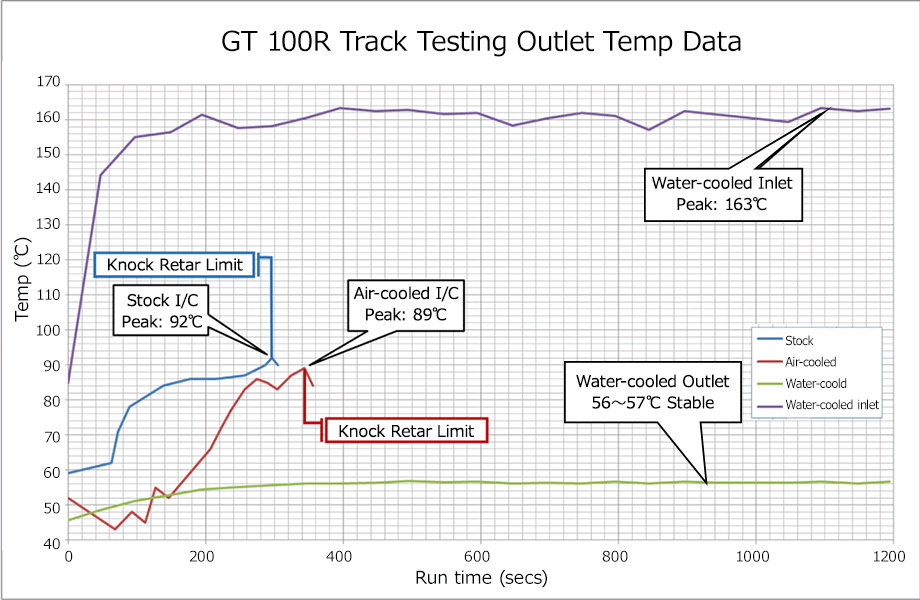

  • In the test data below, the I/C outlet temperature for the stock I/C was 92°C about 5 minutes after the start of driving, and the air-cooled prototype I/C was 89°C.
  • In contrast, the water-cooled I/C succeeded in stabilizing the temperature at 57°C even after driving for more than 20 minutes.







Test Vehicle Specs
Vehicle S660
Turbo GT100R
Boost 125kPa
Test Condition
Weather 27℃ (sunny)

[Intercooler outlet temperature for each model]

  • Stock intercooler: 92°C
  • Air-cooled prototype intercooler: 89°C
  • Water-cooled intercooler: 57°C

*Intercooler inlet temperature was approximately 160°C for all models







Vehicle Model Engine Model Year Type Core Size・Location Type Code No. Manual Remarks
S660 JW5 S07A(TURBO) 15/04 -22/03 Water Cooled Intercooler - ･ ENGINE ROOM Water Cooled 13001-AH103 For vehicles equipped with a commercially available rear tower bar, remove the tower bar if it interferes with the intercooler.
