OIL COOLER KIT BLACK
LANCER EVOLUTION IX
LANCER EVOLUTION IX CT9A
Code No. 15004-AM110
The Lancer Evolution IX has high stock oil cooling system, but HKS has made it even better.
■Features

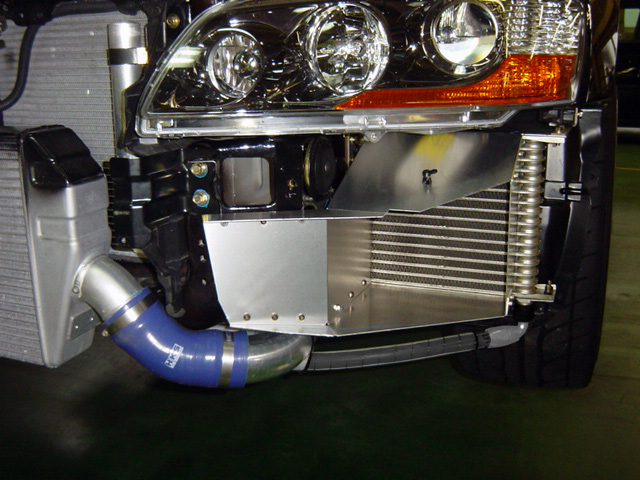

- We have put twin core oil cooler in the left bumper which use the stock oil cooler together.
- As the oil line gets longer the oil pressure loses. But this kit will have more pressure than stock because HKS designed core will not lose the pressure.
- With the separate low temp. thermostat (15999-AM001), it will have better performance.
- The water temperature rise can be prevented with the low oil temperature.
- For HKS intercooler piping kit(the air guide modification installable even for a stock piping) needs to move or change to a new washer tank (Nissan stock 27480-H1001) when using intercooler spray because you need to remove intercooler spray tank.

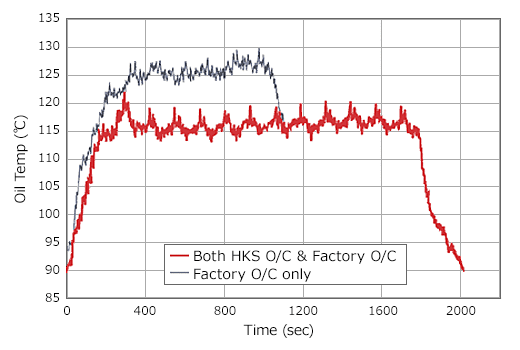

Oil pan oil temperature comparison (at Fuji Speedway racing course)
TEST CAR SPEC.
| Racing Suction Kit | 70008-AM005 | METAL CATALYZER | 33005-AM002 |
| Intercooler Piping Kit | 13002-AM002 | Hi-Power Muffler SPEC-R type B | 31025-AM003 |
| Stainless Front Pipe | 14018-AM001 | Oil cooler Low Temp. Thermostat | 15999-AM001 |
| Vehicle | Model | Engine | Model Year | Core Size・Row | Core Location | Type | Hose Size | Aluminum Air Guide | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LANCER EVOLUTION IX | CT9A | 4G63(TURBO) | 05/03 -06/08 | 200x220x48・15 | Inside left fender | Combine with stock | #10 | ○ | 15004-AM110 |
|
For HKS I/C piping. Stock piping would require modification. Intercooler spray tank requires moving or changing |
