OIL COOLER KIT BLACK For GR YARIS

Stable Oil Temperature Control for High-Output and Circuit Driving!
Renewed Design – Compatible with GR Yaris GEN1 / GEN2

■Features

• To support the sub-radiator adopted on GEN2 models and DAT-equipped vehicles, the oil line routing has been revised, and a newly designed filter mount has been developed.
• When used in combination with the factory water-cooled oil cooler, the system effectively suppresses oil temperature rise even during continuous spirited or circuit driving, ensuring stable and efficient oil temperature control.
• A turn-flow type core is employed, delivering high cooling performance despite a limited core surface area.
• The vehicle-specific core design efficiently utilizes the front bumper opening, minimizing any impact on engine coolant temperature.
• Optimized oil line layout enables compatibility with GEN2 models (MT / DAT) while also allowing installation on GEN1 vehicles.

■Kit Components

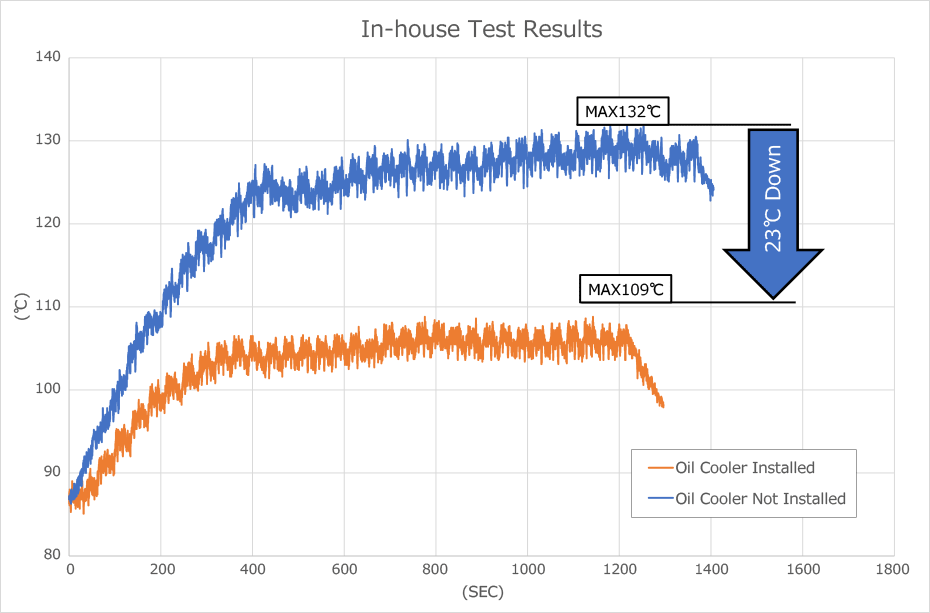

■Test Data

• While oil temperature climbs to 132°C without an oil cooler, the HKS oil cooler suppresses the maximum oil temperature to 109°C, ensuring stable performance during continuous driving.

■Notes on Installation and Use

• Installation of this product requires minor modification to the vehicle.
  Modified areas: Radiator upper air guide plate / Engine under cover (LH)
• Installation of this product increases the required engine oil capacity by approximately 500ml.
  Please ensure the correct oil level during oil changes.
• When installing this product, be sure to use the dedicated oil filter (HKS Part No.: 52009-AK015).
