F-CON D
CX-5
Explanation of the product Application chart
CX-5 KE2AW

Code No. 42007-AZ001





F-CON D, The device to extract diesel engine performance.






Installed on the ECU





■Product Outline

  • This product is compatible with Mazda clean diesel engines. This product can control the fuel of piezo-injector diesel turbo engines.

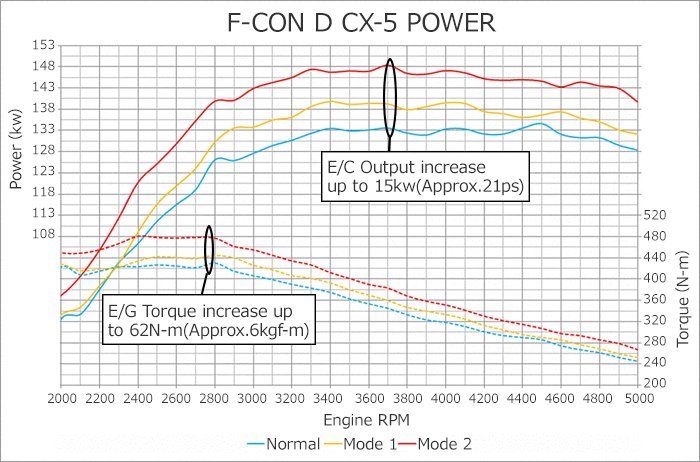

  • With the SH-VPTS engine, the engine output increases up to approximately 21ps. The difference is noticeable right after stepping on the accelerator.



■Features

  • There are 3 modes that can be selected for appropriate conditions using the provided switch.
    Stock Mode: Stock Control
    Mode 1: For street driving focusing on the output improvement at the mid speed range.
    Mode 2: For the output improvement at all speed range.(Up to approx. 21ps increase)
  • Not only the engine output, but also the torque can be improved. The time to reach the target speed can be shortened.
  • The waterproof & heat resistance design enables the unit to be installed in the engine bay safely.





■Kit Parts

Main Unit / Harness / Switch / Installation Bracket / Short Parts





■Installation

No wiring modification is required. It is simply connected by a coupler.









F-CON D ECO-TEST

SH-VPTS 2200 Diesel (Model: KE2FW) Fuel Efficiency
F-CON D  ON(Mode2)
Driving Distance: 627.7km  Fuel Consumption: 33.7L		 18.6km/L
Stock Vehicle
Driving Distance: 622.5km  Fuel Consumption: 32.5L		 19.2km/L

※These are the results of the in-house tests.





Vehicle Model Engine Model Year Code No. Manual Remarks
CX-5 KE2AW SH-VPTS 12/02 -14/12 42007-AZ001
