F-CON iD (Application Chart)
HILUX
HILUX GUN125

Code No. 42011-AT034





F-CON iD for TOYOTA HILUX









■Concept and Fechers

HKS F-CON iD can be data rewritten fuel control sub-computer for common rail type diesel engine.
Easy plug and play installation to control fuel injection.
Direct injector signal processing enables the use of this product for universal.
Easy Writer for F-CON iD to edit the data and fine tune fuel injection.





■Easy Writer

Easy Writer software is NOT included with the product.
If you need Easy Writer software for FCON iD, Please contact with our support center. (PC with Windows10, 8.1, 8, or 7 is require)

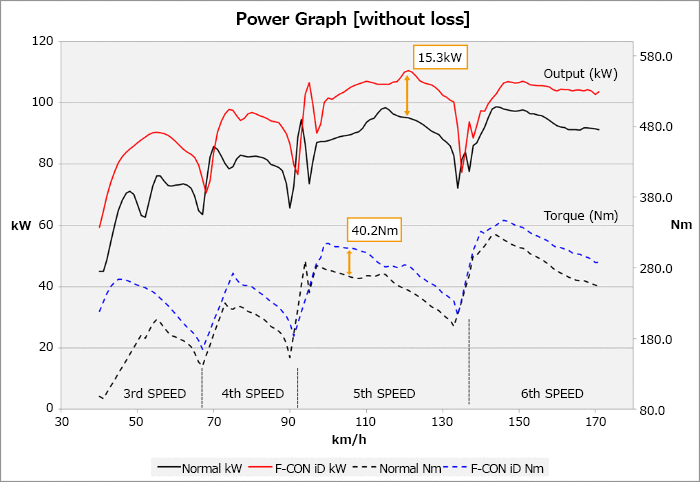

■Initial settings

  Stock F-CON iD
POWER 98.07kw (134.2PS) 110.5kW (150.2PS)
TORQUE 326.6Nm (33.3kgf・m) 347.2Nm (35.4kgf・m)





■Note

F-CONiD HARNESS TOYOTA HILUX GUN 125





Product Model Year Engine Code Remarks
F-CONiD HARNESS TOYOTA HILUX GUN125 TOYOTA HILUX 2017- 2GD-FTV 42002-AT002 This harness can be used only for TOYOTA HILUX.



Vehicle Model Engine Model Year Code No. Manual Remarks
HILUX GUN125 2GD-FTV 17/09 -20/04 42011-AT034 Make to order item
This harness can be used only for TOYOTA HILUX.
