POWER EDITOR VEHICLE SPECIFIC KIT
SKYLINE
Explanation of the product Application chart
SKYLINE RV37

Code No. 42018-AN001





Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.










■Outline

  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.
  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.

Note:
Easy Writer is NOT included in the product.
Use provided USB cable to connect to computer.





■Main Functions

  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
    Note: PC with Windows 10, 8.1, 8, or 7 is required.





■Features

  • Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Note:
- This product is applicable to a stock vehicles and vehicles equipped　with HKS products.
- This product is for a stock ECU data and not available to use with a customized data prepared by a Reflash tool.




Power Editor用Easy Writer





■Specification of Test car

● NISSAN SKYLINE [RV37] JDM Spec.

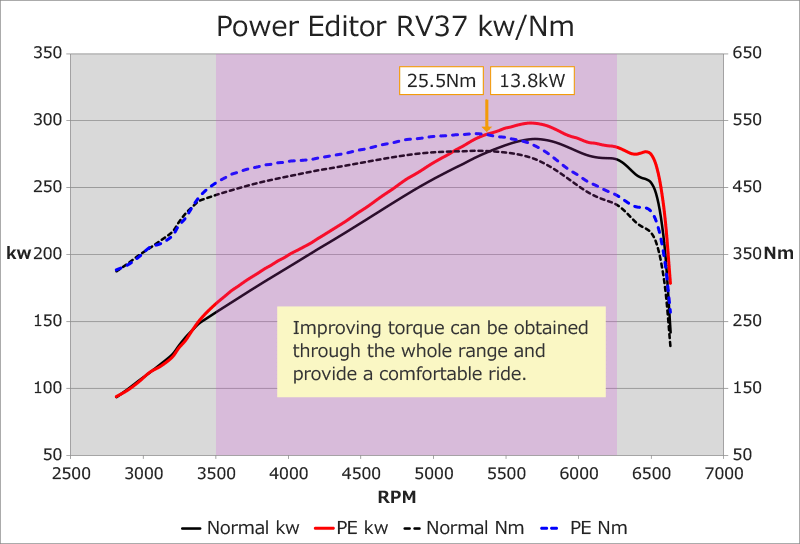

■Performance

  Stock Power Editor
Maximum Variation (Output) － 13.8kW (18.7PS) / 5300rpm
Maximum Variation (Torque) － 25.5Nm (2.6kgf・m) / 5300rpm
Maximum Output 286.4kW (389.4PS) / 5700rpm 298.1kW (405.3PS) / 5700rpm
Maximum Torque 505.1Nm (51.5kgf・m) / 5300rpm 530.6Nm (54.1kgf・m) / 5300rpm
Maximum Boost Pressure 98.1kPa (1.0kgf/cm2) 107.9kPa (1.1kgf/cm2)









■The recommended installation position of the Power Editor Main Unit and the position of the Pressure Sensor





Vehicle Classification Model Engine Model Year Code No. Manual Remarks
SKYLINE 5BA- RV37 VR30DDTT 19/09 - 42018-AN001 42018-AN001 For 400R. 3.0 GT is not confirmed.
