POWER EDITOR VEHICLE SPECIFIC KIT SKYLINE Explanation of the product Application chart
SKYLINE RV37

Code No. 42018-AN002

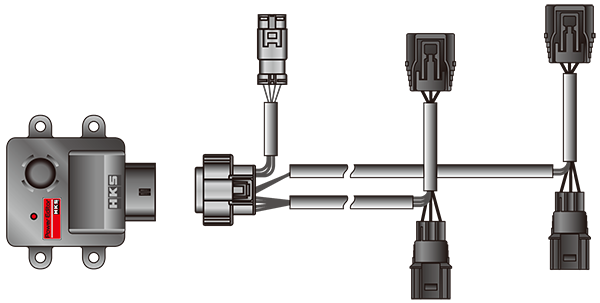

■Outline
  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.
  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.

Note:
Easy Writer is NOT included in the product. Use provided USB cable to connect to computer.











■Main Functions
  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
    Note: PC with Windows 10, 8.1, 8, or 7 is required.





■Features
  • Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Note:

  • This product is applicable to a stock vehicles and vehicles equipped with HKS products.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.




Easy Writer for Power Editor





■Preset Data

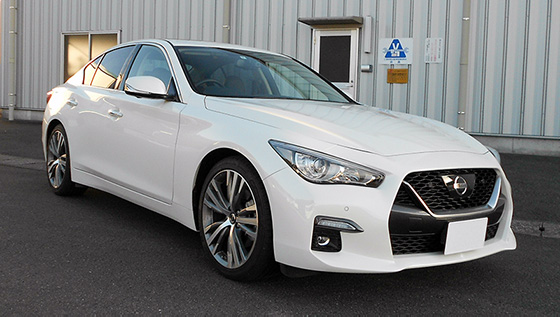

● NISSAN SKYLINE [RV37 3.0GT] JDM SPEC

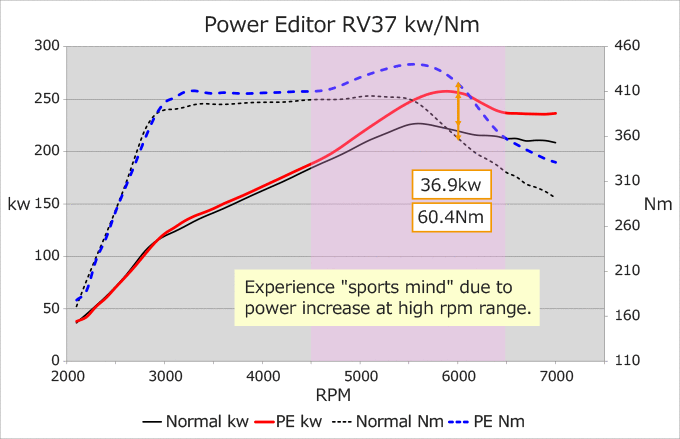

■Performance

*Test performed on the normal vehicle.

  Stock Power Editor
Power Increase - 36.9kW(50.2PS) / 6000rpm
Torque Increase - 60.4Nm(6.2kgf・m) / 6000rpm
Power 226.5kW(308.0PS) / 5600rpm 257.5kW(350.1PS) / 5900rpm
Torque 405.3Nm(41.3kgf・m) / 5100rpm 440.3Nm(44.9kgf・m) / 5500rpm
Boost 70.6kPa (0.72kgf/cm2) 93.2kPa (0.95kgf/cm2)









■Recommended Power Editor installation location and Pressure sensor location



Vehicle Classification Model Engine Model Year Code No. Price Remarks
SKYLINE   RV37 VR30DDTT 19/07- 42018-AN002 For 3.0GT model
