POWER EDITOR VEHICLE SPECIFIC KIT
CIVIC
CIVIC FL1

Code No. 42018-AH012





Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.









■Outline

  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.
  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.

Note:
Easy Writer is NOT included in the product.
Use provided USB cable to connect to computer.







■Main Functions

  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
    Note: PC with Windows is required.





■Features

  • Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Note:
- This product is applicable to a stock vehicles and vehicles equipped with HKS products.

- This product is for a stock ECU data and not available to use with a customized data prepared by a Reflash tool.




Easy Writer for Power Editor

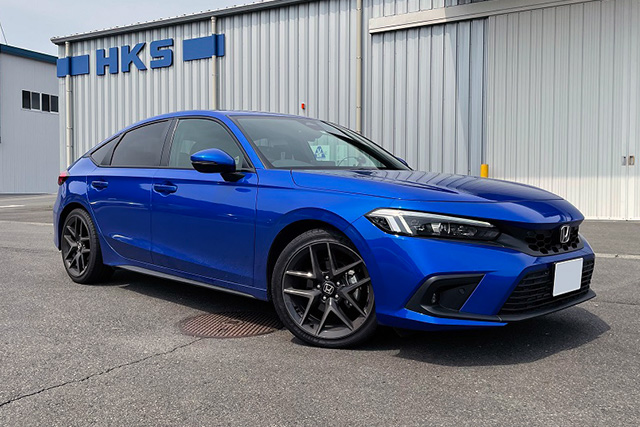

Specification of Test car
HONDA CIVIC FL1 (JDM Spec.) 6MT

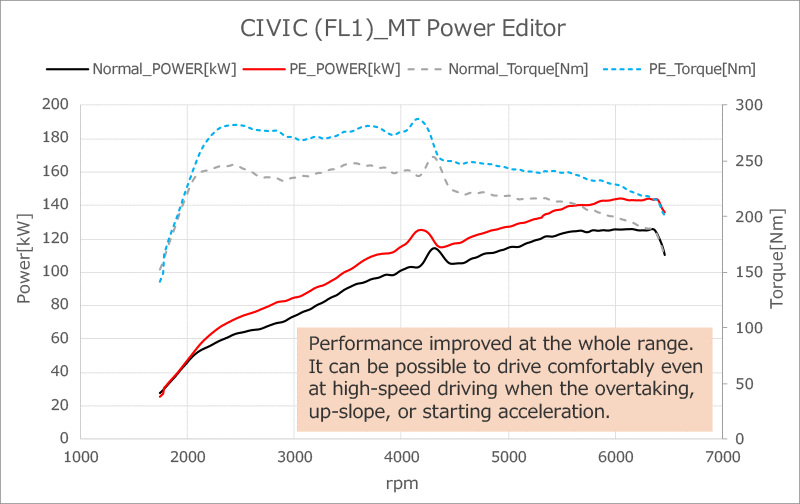

■Performance data (6MT)

  Stock Power Editor
Maximum Output 125.7kW(170.9PS)/6150rpm 144.1kW(196.0PS)/6050rpm
Maximum Torque 248.0Nm(25.28kgf・m)3550/rpm 287.5Nm(29.31kgf・m)4150/rpm
Maximum Boost Pressure 102.1kPa(1.04kgf/cm2) 139.6kPa(1.42kgf/cm2)











Specification of Test car
HONDA CIVIC FL1 (JDM Spec.) CVT

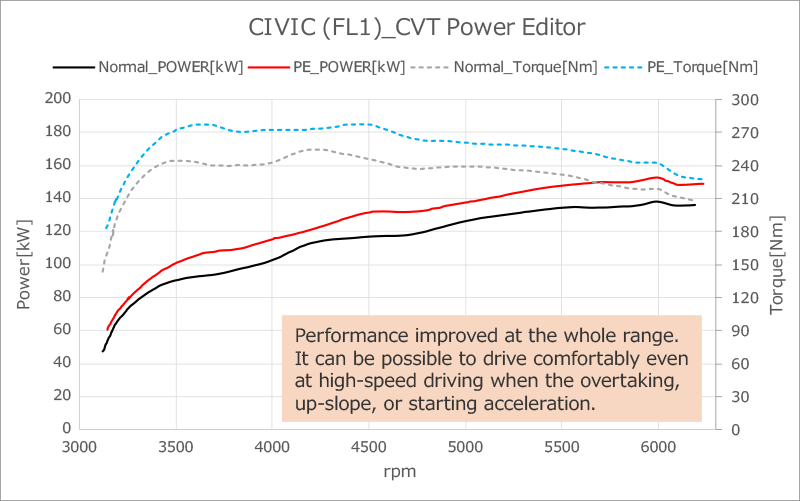

■Performance data (CVT)

 Measured in CVT SPORT MODE 4th

  Stock Power Editor
Maximum Output 137.43kW(184.3PS)/5979rpm 152.1kW(204.0PS)/5979rpm
Maximum Torque 253.0Nm(25.7kgf・m)4199/rpm 275.6Nm(28.1kgf・m)3641/rpm
Maximum Boost Pressure 102.1kPa(1.04kgf/cm2) 146.1kPa(1.49kgf/cm2)









Vehicle Classification Model Engine Model Year Code No. Manual Remarks
CIVIC FL1 L15C(TURBO) 21/09 - 42018-AH012
