Code No. 42018-AN001

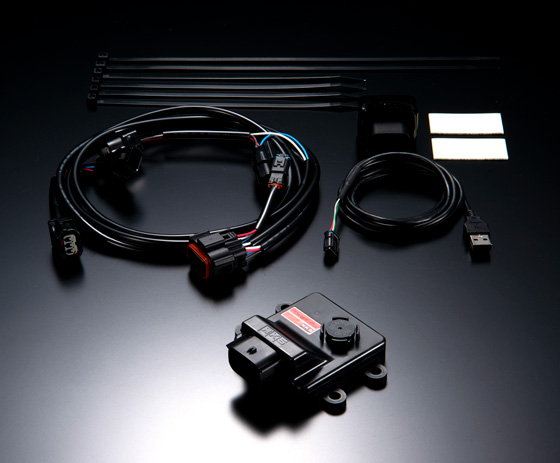

Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.
■Outline
- Easy plug and play installation to increase the boost pressure.
- Boost pressure increase data is preset to Power Editor.

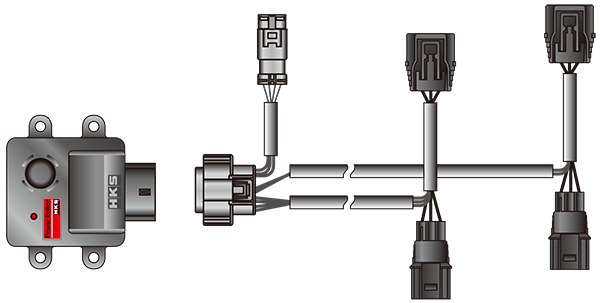

- A bypass connector is included. It allows to bypass the unit even after connecting this kit.
- Easy Writer for Power Editor can edit the preset data.
Note:
Easy Writer is NOT included in the product.
Use provided USB cable to connect to computer.
■Main Functions
- Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
- Status indicating LED: Checking the unit status by LED.
- Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
Note: PC with Windows 10, 8.1, 8, or 7 is required.
■Features
- Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
- Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
- Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.
Note:
- This product is applicable to a stock vehicles and vehicles equipped with HKS products.
- This product is for a stock ECU data and not available to use with a customized data prepared by a Reflash tool.
Power Editor用Easy Writer
Specification of Test car
NISSAN FAIRLADY Z [RZ34] JDM Spec.

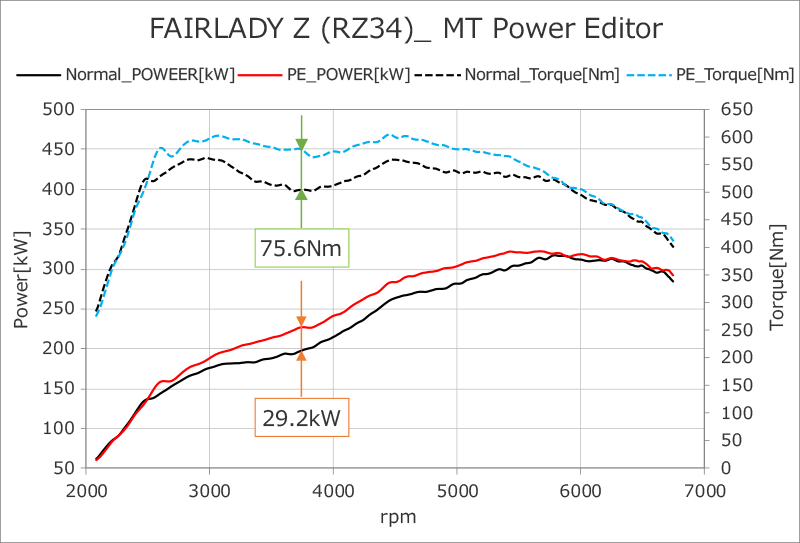

■Performance Data_MT
| Manufacturer | NISSAN | Model Name | FAIRLADY Z |
| Model | 3BA-RZ34 | Model Year | 2022/07- |
| Engine | VR30DDTT | Remarks |
■Performance
| Stock | Power Editor | |
| Maximum Variation (Output) | － | 29.2kW(39.7PS)/3690rpm |
| Maximum Variation (Torque) | － | 75.6Nm(7.7kgf・m)/3690rpm |
| Maximum Output | 317.3kW(431.4PS)/5800rpm | 321.6kW(437.2PS)/5680rpm |
| Maximum Torque | 562.6Nm(57.4kgf・m)/2960rpm | 605.3Nm(61.8kgf・m)/4450rpm |
| Maximum Boost Pressure | 107.9kPa(1.1kgf/cm2) | 127.5kPa(1.3kgf/cm2) |
*The preset data came from the JDM spec vehicle.
Specification of Test car
NISSAN FAIRLADY Z [RZ34] JDM Spec.

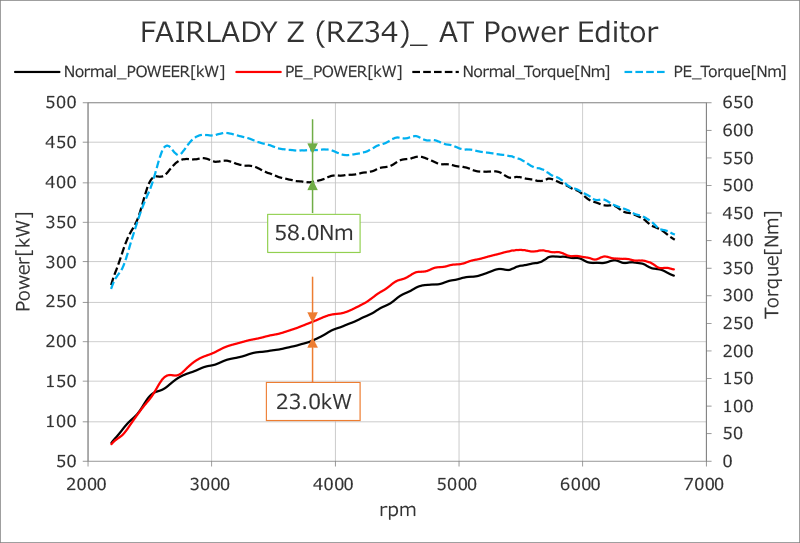

■Performance Data_AT
| Manufacturer | NISSAN | Model Name | FAIRLADY Z |
| Model | 5BA-RZ34 | Model Year | 2022/07～ |
| Engine | VR30DDTT | Remarks |
■Performance
| Stock | Power Editor | |
| Maximum Variation (Output) | － | 23.0kW(31.3PS)/3790rpm |
| Maximum Variation (Torque) | － | 58.0Nm(5.9kgf・m)/3790rpm |
| Maximum Output | 308.0kW(418.8PS)/5760rpm | 314.9kW(428.2PS)/5500rpm |
| Maximum Torque | 552.3Nm(56.4kgf・m)/4670rpm | 594.9Nm(60.7kgf・m)/3110rpm |
| Maximum Boost Pressure | 107.9kPa(1.1kgf/cm2) | 127.5kPa(1.3kgf/cm2) |
*The preset data came from the JDM spec vehicle.

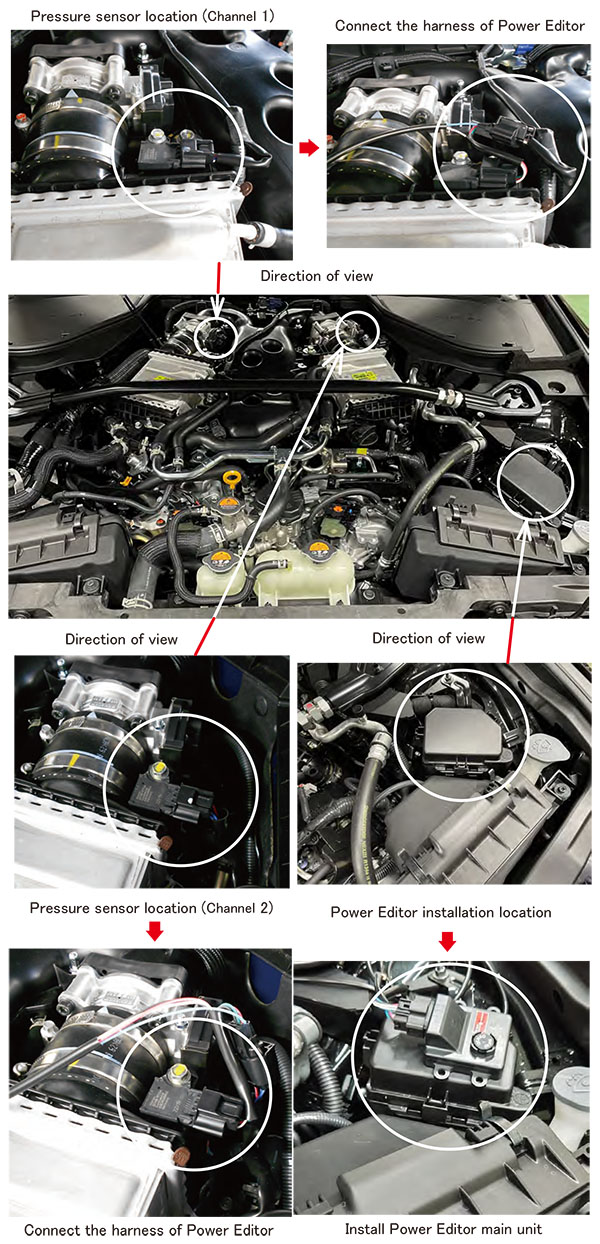

■Recommended Power Editor installation location and Pressure sensor location
| Vehicle | Classification | Model | Engine | Model Year | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|
| FAIRLADY Z (Z) | 3BA-, 5BA- | RZ34 | VR30DDTT | 22/07 - | 42018-AN001 |
|
Make to order item |
