GR86/BRZ SUB CONTROL SYSTEM
GR86
Explanation of the product Application chart
GR86 ZN8

Code No. 42011-AT035





Specific control device for GR86/BRZ w/bolt-on turbo or supercharger!









■Features

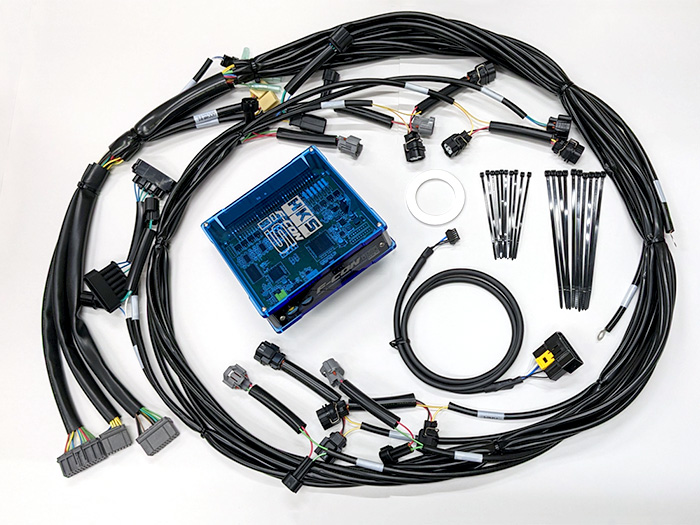

  • Exclusively designed F-CON iS for GR86/BRZ equipped with TOYOTA D-4S injection system.
  • A coupler-on harness is included for installation with no need to cut the stock wiring.
  • The data is preset to match the specifications of the GT2 SUPERCHARGER SYSTEM [12001-AT013] even with the restrictor replaced to the supplied D43mm restrictor.
  • It is also compatible with fuel upgrades that replace the port-side injectors with larger-capacity injectors, and together with the restrictor upgrade, can aim for higher power output (data resetting is required).

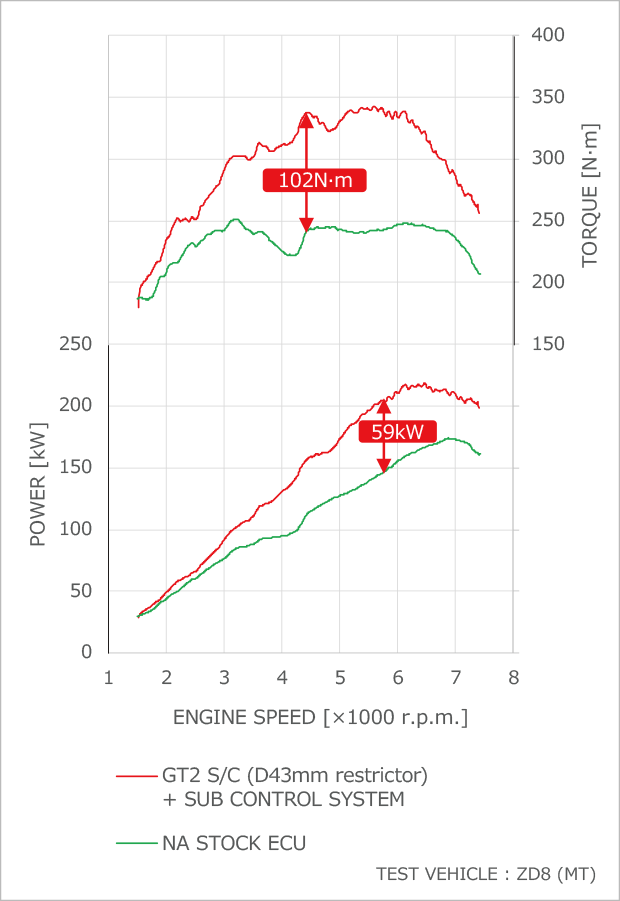

■Performance

(In-house Test)





  NA
STOCK ECU		 GT2 S/C (φ43)
SUB CONTROL SYSTEM
Max. Power
kW〔PS〕/rpm		 174〔236〕/ 6,880 218〔297〕/ 6,470
Max. Torque
N・m〔kgf・m〕/rpm		 251〔25.6〕/ 3,200 343〔35.0〕/ 5,600
Max. Boost Pressure
kPa〔kgf/cm2〕/ rpm		 － 46〔0.47〕/ 5,700







■Note

  • Grommets will need to be cut to pull the harness into the interior.
  • Cannot be used in conjunction with other products that connect to the OBD2 connector because information from the OBD2 connector is required for control and a dedicated harness is connected.
  • A significant power increase puts a strain on the stock catalytic converter and in some cases may cause damage to it. Highly recommend replacing it with Super Manifold GT Spec [33005-AT010] at the same time.
  • Please contact an HKS authorized shops for data resetting.





Vehicle Model Engine Model Year Code No. Manual Remarks
GR86 ZN8 FA24 21/10 - 42011-AT035 Both MT/AT models are compatible. Applied D models are not confirmed to be compatible.
