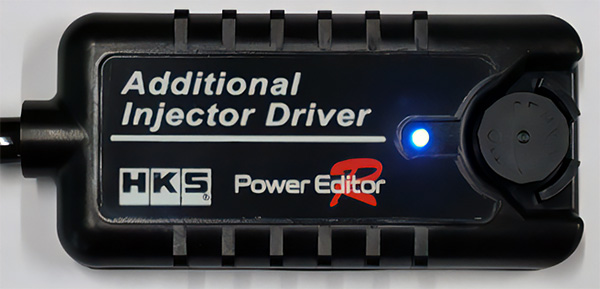

With this optional Power Editor R part, you can drive two additional injectors per vehicle.
The Power Editor R’s additional injector control map allows you to increase the amount of fuel according to conditions such as airflow, rotation, and vehicle speed.
Using additional injectors can eliminate the power output plateau that occurs when replacing the turbo in a vehicle with torque-based control.

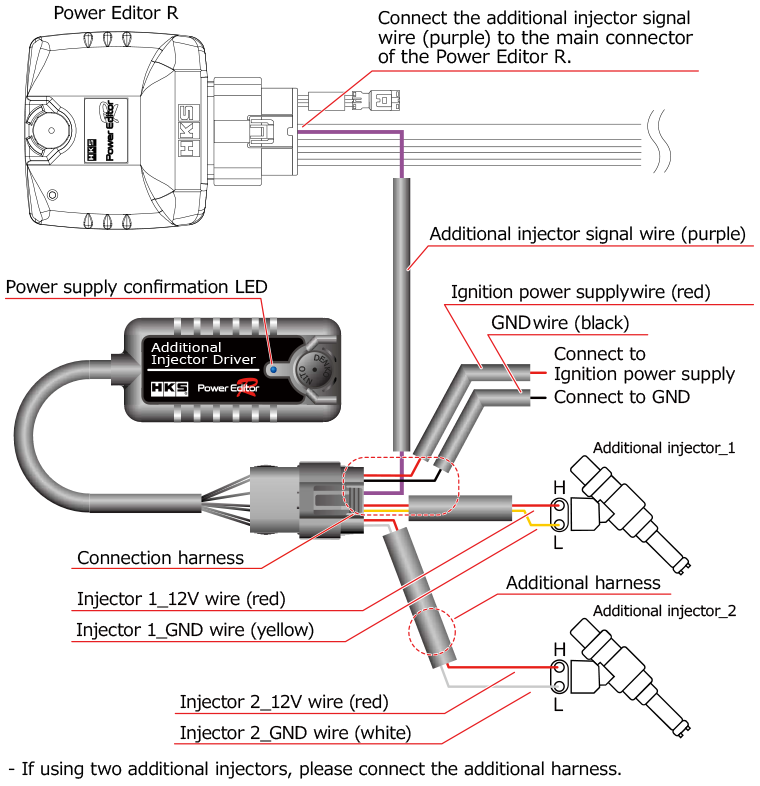

■Diagram
To use this product, the firmware version of your Power Editor R must be "PER_FW.002" or later. If the firmware version of your Power Editor R is "PER_FW.001", please contact the retailer where you purchased it. The firmware version of the main unit can be checked from the [Help] menu of Easy Writer for Power Editor R.
The initial release version of Easy Writer [Ver.2.3.6.6] is not compatible with this product. Please download and use the latest version from the HKS website (https://www.hks-power.co.jp/en/index.html).
