METAL CATALYZER：86

METAL CATALYZER

Explanation of the product Application chart

86 ZN6

Code No. 33005-AT006

SUPER MANIFOLD with CATALYZER R-SPEC for ZN6/ZC6

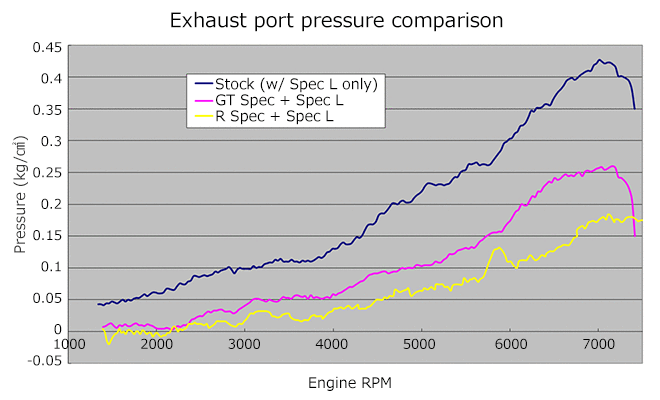

SUPER MANIFOLD with CATALYZER R-SPEC is more advanced and upgraded product of SUPER MANIFOLD with CATALYZER GT-SPEC. By removal of the catalyzer at the exhaust manifold, we could have a substantial reduction of the exhaust pressure. We also redesigned layout of front pipe with HKS metal catalyzer (this product comes with front pipe that passed Japan exhaust regulation).
* Only used with stock muffler will be compliant for Japanese safety standard.

■Features

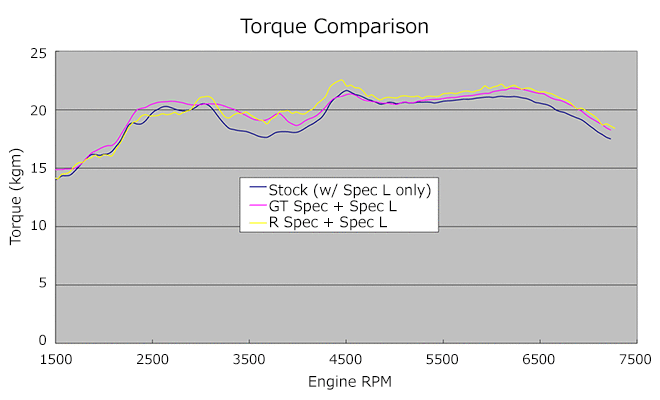

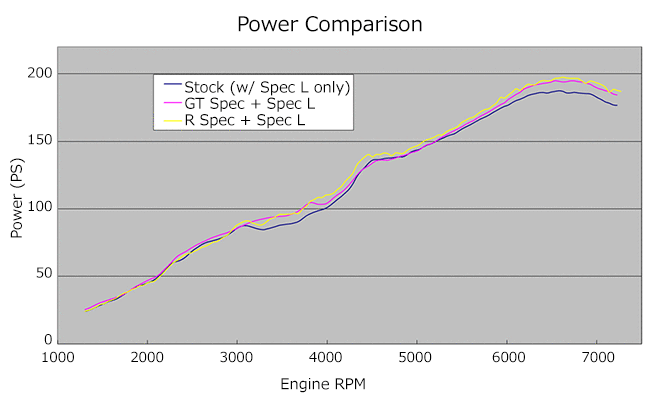

It will have great performance around 3,000PRM because we adopted 4-2-1 layout manifold which improves output at normal and high RPM range. And also because of the metal catalyzer, it will perform great at high RPM because of the less exhaust pressure.
SUS304 is used for the main material to have a good durability to perform better at circuit drive.
There is no need for parts modification for installation. So it will take about 1hr to 2hrs in cool situation.

■Cautions

* Only for MT
* Only used with stock muffler will be compliant for Japanese safety standard.

Vehicle	Classification	Model	Engine	Model Year	Pipe Size	Code No.	Manual	Remarks
Vehicle	Classification	Model	Engine	Model Year	Pipe Size	Code No.	Manual	Remarks
86	DBA-	ZN6	FA20	12/04 -16/07	Φ42.7-50.8-60	33005-AT006		[R-SPEC] For MT, early model. A front pipe set includes the 1st catalyst which was changed to the straight layout manifold and the 2nd catalyst which is replaced with the metal catalyzer. For meeting the vehicle emissions control in Japan, the combination use of the stock muffler is necessary.
