Code No. 80130-AT106
*Discontinued.
Application
| Engine | 2ZR-FXE(2ZR-3JM) |
|---|---|
| Model Year | 09/05 - 15/11 |
| Remarks | G touring Selection |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | ○ | ○ |
| Upper mount | Rubber | Stock |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Impossible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) | - | - |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 637 | ← | 674 ～ 609 | 674 ～ 609 |
| Against stock | -37 | ← | 0 ～ -65 | 0 ～ -65 | |
| REAR | Ride height *1 | 638 | ← | 655 ～ 616 | 655 ～ 616 |
| Against stock | -44 | ← | -27 ～ -66 | -27 ～ -66 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 39 ( 4 ) | 31 ( 3.2 ) |
| Free height (mm) | 250 | - |
| Spring type | Straight Barrel type | Special shape |
| Recommended range to change spring rate N/mm(kgf/mm) | ±10 | - |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 490 / 147 | 333 / 108 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 51 / 62 | 61 / 99 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
299 | ← | 336 | 275 | 350 | ← | 357 | 337 |
| Spring Set length(mm) |
209 | ← | 209 | 213 | - | - | - | - |
| Length to ride hight adjuster (mm) |
28 | ← | 65 | 0 | 40 | ← | 54 | 22 |
| Lever ratio | 1.00 | 1.20(spg) , 0.92(dmp) | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | - (830) | - (530) | |
| Tire size (Air pressure) kPa | 215 / 45 - 17 ( 250 ) | 215 / 45 - 17 ( 240 ) | |
| Wheel size | 7 JJ × 17 off 48 | 7 JJ × 17 off 48 | |
| Alignment (Toe/Camber) |
Test data | in 1 mm / -1°30' | in 4 mm / -1°51' |
| Standard value | in 2 ± 2 mm / -0°10' ± 45' | in 2 ± 3 mm / -1°30' ± 30' | |
* Test data at HKS.

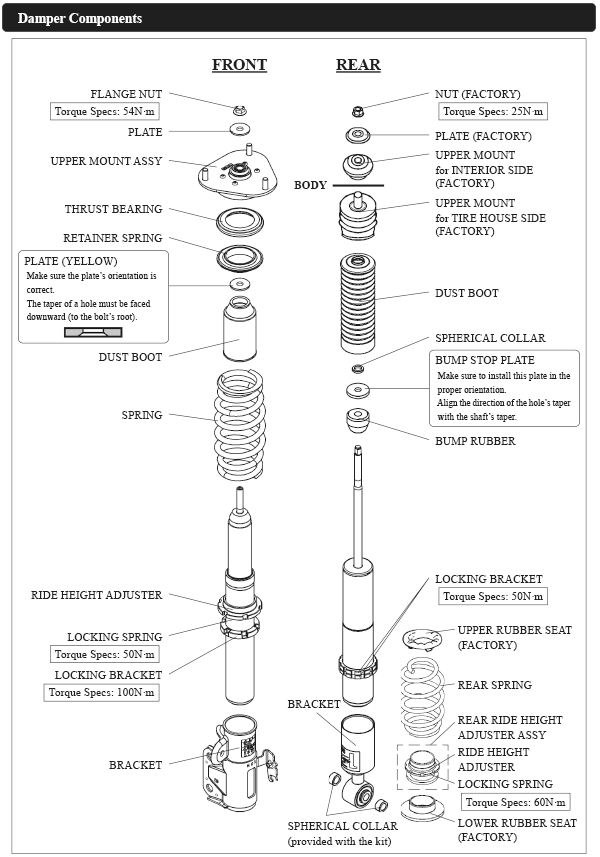

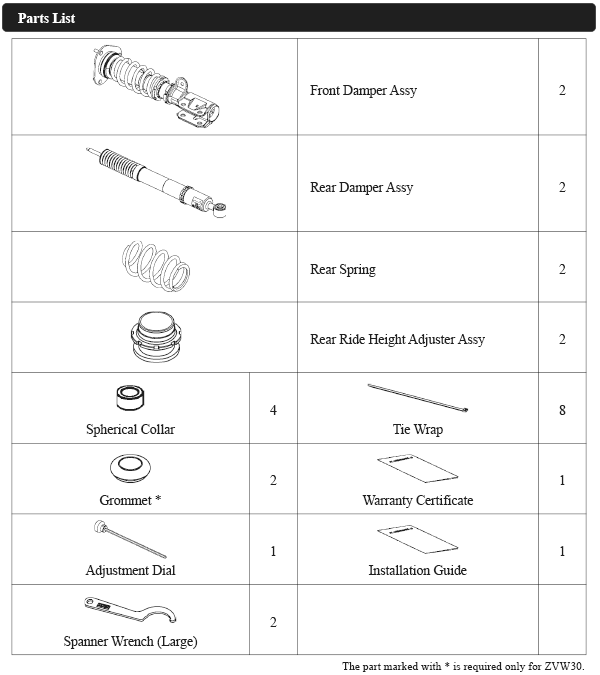

Parts List * It may be changed without prior notice.
Point
・We set it for the best driving feeling. We tried to reduce the stock’s fluffy feeling.
・C-Wagon was more of sporty setting to drive in the winding roads, but for this suspension, we set it more soft to have a comfortable drive.
・We set it a little more sporty compare to the S-Style C.
・If the front case length is shorter than the specified drivable limit, the ABS harness could be damaged for a full stoke or a full steering.
・If the front case length is longer than the specified drivable limit, the stabilizer and lower arm could interfere each other..
・Recommend dial setting for street drive is; Front-15, Rear-14
●About modification for installation.
Need an hole for damping force adjustment(rear inside).
Need to cut off the rear stock dust boot.
