MAX IV GT
MARK X
MARK X GRX120

MAX IV GT

Code No. 80230-AT003

*Discontinued.

Awesome control and comfort ride on the street for a sporty drive. The new Max IV sporty suspension.

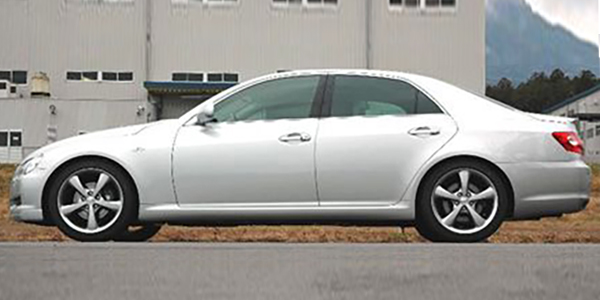

▲The model in the photo is GRX120.





Application

Engine 4GR-FSE
Model Year 04/11 - 09/09
Remarks GRX120 (4GR-FSE) height data.

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Rubber
Inverted/Normal type Normal Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Possible Possible
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
○ ( 19.8 ) ○ ( 19.8 )
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 666 669 687 ~ 622 687 ~ 629
Against stock -21 -18 0 ~ -65 0 ~ -58
REAR Ride height *1 665 684 ~ 599 684 ~ 599
Against stock -19 0 ~ -85 0 ~ -85

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 69 ( 7 ) 59 ( 6 )
Free height (mm) 200 250
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )

Specification of damper

  F R
Damping force (Rebound/Damping)N* 853 / 226 745 / 196
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 53 / 62 62 / 93

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
410 412 423 408 380 393 380
Spring
Set length(mm)
225 225 225 248 277 277 321
Length to ride hight
adjuster (mm)
87 89 101 62 44 57 0
Lever ratio 1.49 1.51

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg - (830) - (700)
Tire size (Air pressure) kPa 225 / 45 - 18 ( 230 ) 225 / 45 - 18 ( 230 )
Wheel size 8 JJ × 18 off 50 8 JJ × 18 off 50
Alignment
(Toe/Camber)
Test data 0 mm / -1°15' in 3 mm / -2°00'
Standard value in 1 ± 2 mm / -0°20' ± 45' in 3 ± 1 mm / -1°05' ± 45'

* Test data at HKS.


Parts List  * It may be changed without prior notice.




Point

・MAX IV production concept was aimed at "Comfort & Fun of steering". In normal driving, such as streets and highways has the exquisite taste of fine and comfortable ride with HKS large bore single-cylinder piston. The stock's a little stiffness is reduced. And for a big bump MAX IV gives smooth and mild response. Also the steering can be set in detail for your needs by setting up the damping.
・MAX IV is all length adjustable type, so that the height can be set to your needs and wants for your style.
・The standard dial for both front and back is the dial 15, and for smoother ride, set dial at 20 to 30. For European style suspension, set it at dial 3 to 5. The new design will not be stiff even under 10 steps setting.
・HKS has developed the MAX IV according to thorough data analysis of many cars in the market and tested them. We didn't only rate damping but also analyzed balance and stroke, which made this product more safe and fun to drive.
・We also redesigned the inner parts and developed new parts for MAX IV. MAX IV has new design of needle which gives more stable damping and steering characteristic at a low to mid speed range. We also revised dial adjustment by oil path and this new design makes even under 10 step dial, it will not be stiff.
・Please be careful with the later model setting since it has a different bumper design, the height of the fog lamp is different,
* We have confirmed MAX IV with HKS GT Supercharger Kit. We have checked with powered up cars, too, and this new design makes even under 10 step dial, it will not be stiff.
*5 get rid of the helper S/P
● Process for installation
・Required to make an hole for rear damping adjustment cable(rear interior)
・When the spring interferes, you might need to cut the rear inner fender.
