Code No. 80230-AT005
*Discontinued.
Awesome control and comfort ride on the street for a sporty drive. The new Max IV sporty suspension.

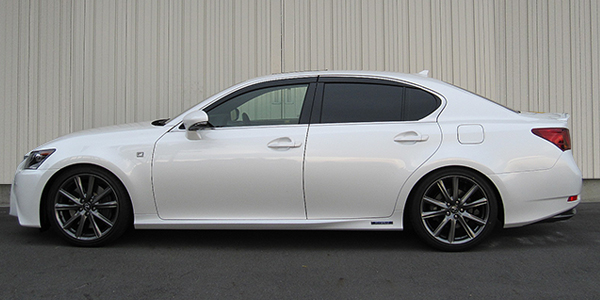

▲The model in the photo is GWL10.
Application
| Engine | 2GR-FXE(2GR-1KM) |
|---|---|
| Model Year | 12/03 - 20/07 |
| Remarks | Confirmed with 450h F Sport |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | ○ | ○ |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Normal | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | - | ○ |
| Helper spring (Spring rate N/mm) | ○ ( 19.8 ) | - |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 693 | 673 | 708 ～ 607 ※5 | 708 ～ 636 |
| Against stock | -15 | -35 | 0 ～ -96 ※5 | 0 ～ -72 | |
| REAR | Ride height *1 | 666 | 673 | 673 ～ 626 | 673 ※6 ～ 635 |
| Against stock | -44 | -37 | -37 ～ -84 | -37 ※6 ～ -75 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 78 ( 8 ) | 98 ( 10 ) |
| Free height (mm) | 250 | 220 |
| Spring type | Straight | Straight Barrel type |
| Recommended range to change spring rate N/mm(kgf/mm) | +20 (-0～+2) | -20 (0～-2) |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 1300 / 400 | 800 / 300 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 65 / 50 | 83 / 52 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
487 | 472 | 498 | 457 | 477 | 467 | 467 | 445 |
| Spring Set length(mm) |
278 | 278 | 278 | 289 | - | - | - | - |
| Length to ride hight adjuster (mm) |
84 | 69 | 95 | 43 | 72 | 75 | 75 | 32 |
| Lever ratio | 1.40 | 2.70(spg) , 1.29(dmp) | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | 954 (970) | 933 (910) | |
| Tire size (Air pressure) kPa | 235 / 40 - 19 ( 240 ) | 265 / 35 - 19 ( 240 ) | |
| Wheel size | 8 JJ × 19 inset 45 | 9 JJ × 19 inset 60 | |
| Alignment (Toe/Camber) |
Test data | 0 mm / -1°00' | 4 mm / -3°00' |
| Standard value | in 1 mm / -0°15' | in 3 mm / -1°30' | |
* Test data at HKS.
Parts List * It may be changed without prior notice.
Point
MAX IV GT for GS450h is set with F Sport. We tried to set it stylish low-down and still have the stock GS450 ride. GS450hF Sport has more comfortable ride and has less unstability with handling in a roll than the GS350F Sport. GS450hF Sport is more comfortable and has better drivability. And we kept these advantages. We made to have S mode drivability and N mode comfort at dial 20. We set them comfortable as stock and still has upgraded handling for best drivability by the adequate adjustment for the spring and damper force. We set the enough stoke for a comfortable ride for both driver and the passengers. We tested with electronic device to have a best stability by delaying the electronic interference.
※When Changing the stock tire and wheel, the front tire shoulder and fender easily interfere with each other that tire shoulder should be inset and the tire size should not be bigger than the stock size. For setting exactly, you might need to fold the edge of fender.
※For the tested vehicle height, the fog height does not meet the Japanese regulation. Depending on the height setting, you might need to take it off.
※Fog/winker height for factory setting: 253mm (all in the headlight), For Testing: 234mm (all in the headlight)
※5. For changing the bump rubber to L=5.
※6. To have more height, please change it to L=250 (Approximate adjustable length: 0 to 49mm).
