MAX IV GT
FIT
FIT GP4

MAX IV GT

Code No. 80230-AH004

*Discontinued.

Awesome control and comfort ride on the street for a sporty drive. The new Max IV sporty suspension.





▲The above photo is an item for GE8.





Application

Engine LEA-MF6
Model Year 12/05 - 13/08
Remarks For RS FF
The vehicle height data is of GE8.

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Stock Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 615 640 ~ 568 640 ~ 589
Against stock -25 0 ~ -72 0 ~ -51
REAR Ride height *1 620 651 ~ 602 651 ~ 602
Against stock -31 0 ~ -49 0 ~ -49

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 59 ( 6 ) 37 ( 3.8 )
Free height (mm) 220 -
Spring type Straight Barrel type Special shape
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 451 / 177 206 / 147
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 41 / 58 36 / 89

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
320 342 307 387 418 370
Spring
Set length(mm)
210 220 - - - -
Length to ride hight
adjuster (mm)
54 76 31 32 57 18
Lever ratio 1.15 1.25(spg) , 1.00(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg - (700) - (380)
Tire size (Air pressure) kPa 205 / 45 - 16 ( 230 ) 205 / 45 - 16 ( 220 )
Wheel size 7 JJ × 16 inset 41 7 JJ × 16 inset 41
Alignment
(Toe/Camber)
Test data out 1 mm / -1°45' in 3 mm / -1°27'
Standard value 0 ± 3 mm / 0°00' ± 1° 2 +3 -2 mm / -1°00' ± 1°

* Test data at HKS.

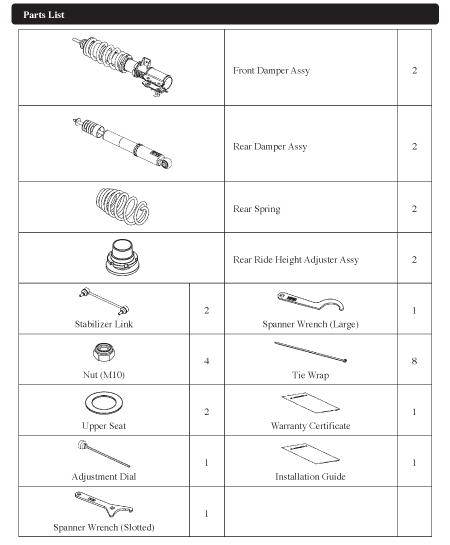

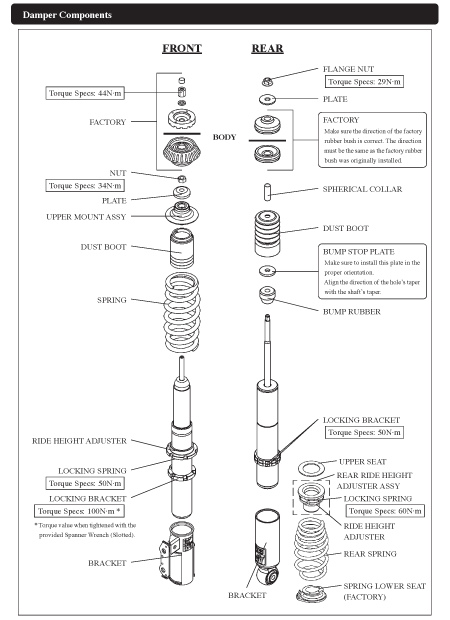

Parts List  * It may be changed without prior notice.




Point

・Has developed it for comfort in driving, but still has sporty performance.
・It has wide variety of setting since it adopted the all length adjustable type for rear damper.
・For town drive, set the dial of Front:15 & Rear:20.
・The vehicle height data from other than the test is computational data.(The numbers does not guaranteeing the height)
