MAX IV GT
LEGACY B4
LEGACY B4 BLE

MAX IV GT

Code No. 80230-AF005

*Discontinued.

Awesome control and comfort ride on the street for a sporty drive. The new Max IV sporty suspension.





▲The above photo is an item for BL5D.





Application

Engine EZ30
Model Year 03/09 - 09/05
Remarks Test vehicle: Type D.
The vehicle height is of BL5.

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Rubber
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Possible Possible
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 641 670 ~ 606 661 ~ 627
Against stock -29 0 ~ -64 -12 ~ -46
REAR Ride height *1 651 640 669 ~ 583 669 ~ 628
Against stock -18 -29 0 ~ -86 0 ~ -41

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 59 ( 6 ) 69 ( 7 )
Free height (mm) 220 200
Spring type Straight Barrel type Straight
Recommended range to change spring rate N/mm(kgf/mm) +20 (-0~+2) -10+20 (-1~+2)

Specification of damper

  F R
Damping force (Rebound/Damping)N* 647 / 206 951 / 167
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 48 / 65 38 / 62

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
278 292 278 250 250 262 245
Spring
Set length(mm)
203 200 220 190 197 190 200
Length to ride hight
adjuster (mm)
91 108 74 47 40 59 32
Lever ratio 1.02 1.56

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 887 (880) 597 (600)
Tire size (Air pressure) kPa 225 / 35 - 19 ( 270 ) 225 / 35 - 19 ( 270 )
Wheel size 7.5 JJ × 19 off 7.5 JJ × 19 off
Alignment
(Toe/Camber)
Test data 0 mm / -0°12' 0 mm / -1°00'
Standard value 0 ± 3 mm / -0°25' ± 45' 0 ± 3 mm / -0°45' ± 45'

* Test data at HKS.

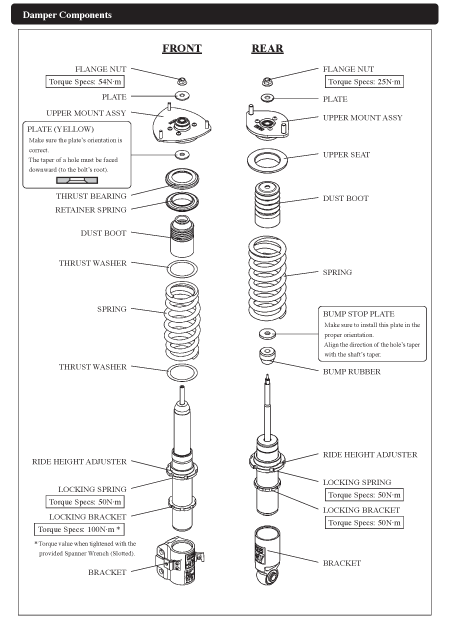

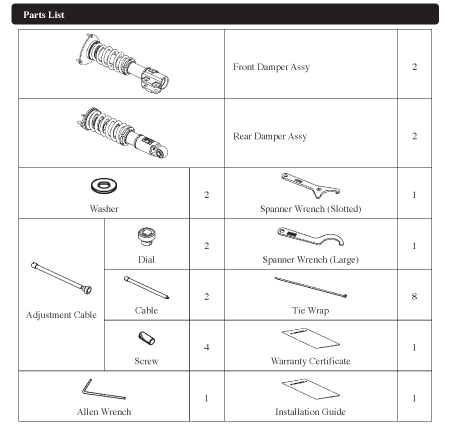

Parts List  * It may be changed without prior notice.




Point

・MAX III B.B.TUNE concept is the same and with many new technology inside.
・MAX IV setting has a comfort in driving, so you don't have to worry about lowering the automobile.
・MAX IV is made for both comfort and sport driving. You can use it for town drive with family member or have a thrilling drive at the winding roads.
・MAX IV is optimized for low speed damping force that let you have a high-quality driving experience. Also we have not set it too hard for the balance of rigid body.
・MAX IV provides safe drive with comfort when stock suspension has that bumpy feeling.
・The vehicle height data from other than the test is computational data.(The numbers does not guaranteeing the height)
・Spec B tire has bigger tire that when hit a big bump, tire and fender might interfere each other.

* Modification for installation
・Need to make a hole for rear damping adjustment cable(rear interior)
