Code No. 80230-AT005
*Discontinued.

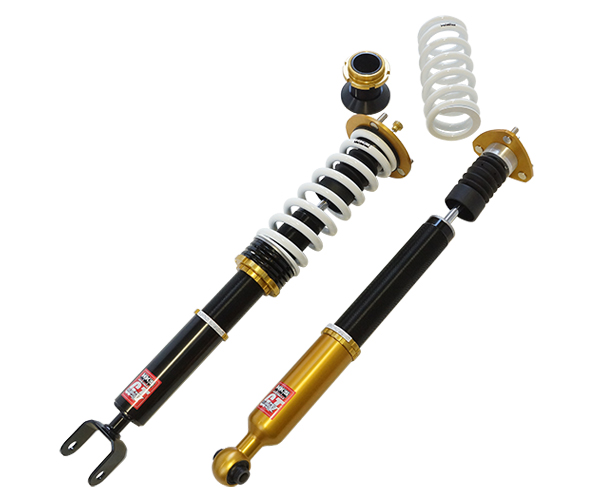

Awesome control and comfort ride on the street for a sporty drive. The new Max IV sporty suspension.

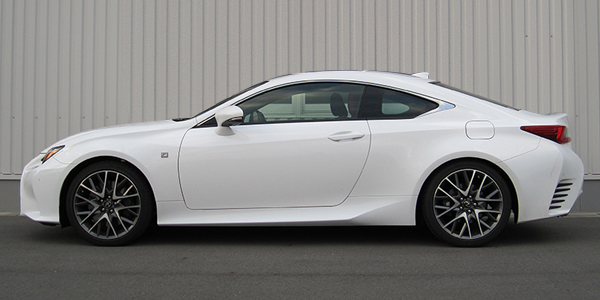

▲The model in the photo is GSC10.
Application
| Engine | 2GR-FSE |
|---|---|
| Model Year | 14/09 - |
| Remarks | Developed with 350F Sport. |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | ○ | ○ |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Normal | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | - | ○ |
| Helper spring (Spring rate N/mm) | ○ ( 19.8 ) | - |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 701 | 682 | 710 ～ 606 | 710 ～ 631 |
| Against stock | -9 | -28 | 0 ～ -104 | 0 ～ -79 | |
| REAR | Ride height *1 | 687 | 679 | 691 ～ 610 | 691 ～ 638 |
| Against stock | -11 | -19 | -7 ～ -88 | -7 ～ -60 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 78 ( 8 ) | 98 ( 10 ) |
| Free height (mm) | 250 | 220 |
| Spring type | Straight | Straight Barrel type |
| Recommended range to change spring rate N/mm(kgf/mm) | ±20 (-2～+2) | -20 (0～-2) |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 1300 / 400 | 800 / 300 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 62 / 53 | 78 / 57 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
487 | 473 | 493 | 455 | 477 | 461 | 480 | 451 |
| Spring Set length(mm) |
278 | L:275 / R:281 | 278 | 296 | － | － | － | － |
| Length to ride hight adjuster (mm) |
84 | L:73 / R:67 | 90 | 34 | 72 | 67 | 74 | 46 |
| Lever ratio | 1.40 | 2.00(spg) , 1.29(dmp) | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | - (920) | - (800) | |
| Tire size (Air pressure) kPa | 235 / 40 - 19 ( 240 ) | 265 / 35 - 19 ( 250 ) | |
| Wheel size | 8 JJ × 19 inset 45 | 9 JJ × 19 inset 60 | |
| Alignment (Toe/Camber) |
Test data | 0 mm / -1°00' | IN 1.8 mm / -2°18' |
| Standard value | IN 1 ± 2 mm / -0°20' ± 45' | IN 2 ± 2 mm / -1°55' ± 45' | |
* Test data at HKS.

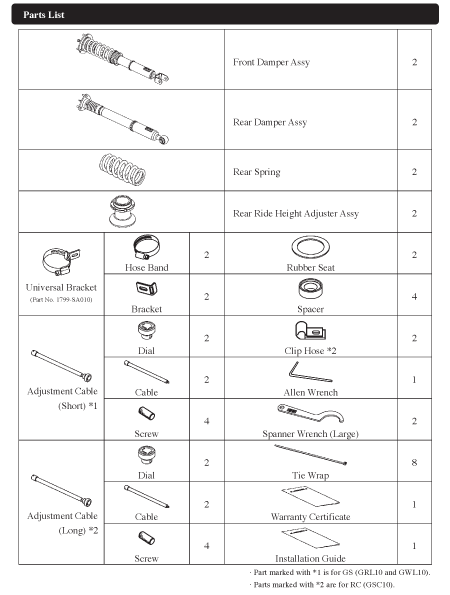

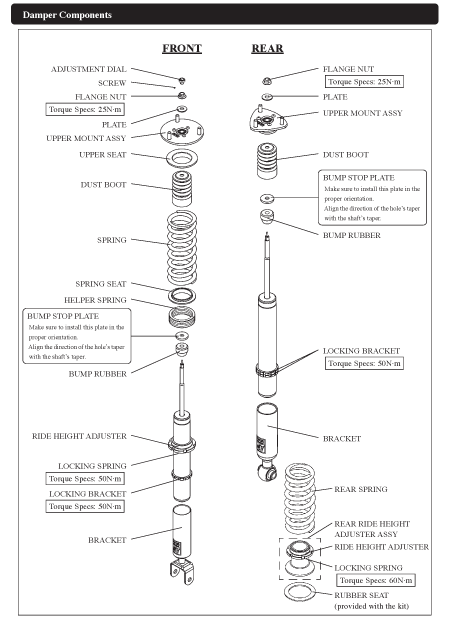

Parts List * It may be changed without prior notice.
Point
Stylish low-down appearance with enhanced potential for high performance was focused on when developing this product. The stock suspension prioritized the ride quality; therefore, the damping force is rather low even under S or S+ mode. This characteristic may spoil the stability in situations such as high speed driving, cornering, and/or lane change.
This product can improve handling without impairing the riding comfort even after lowering the ride height. The stability is enhanced by taking into consideration not only of the spring rate or damping force but also the stroke.
For relaxing ride quality like the stock setting, set the dial at 20 to 30.
NAVI and AI-AVS functions are omitted, but this product has superior function as a suspension kit to these omitted functions. Settings were determined to make the product having higher potential with full consideration of what are required by users. Higher basic performance of this product can enhance its application ability so it enables to support a wide range of application.
