Code No. 80110-AH218
*Discontinued.

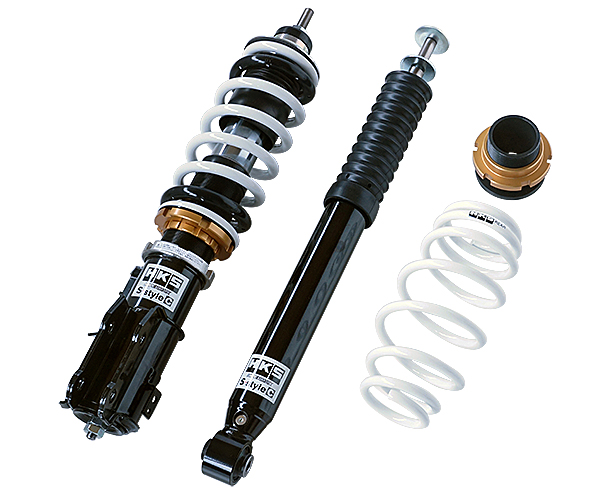

Masterpiece of HKS "S-style" series! For the Best & Firm Ride!!

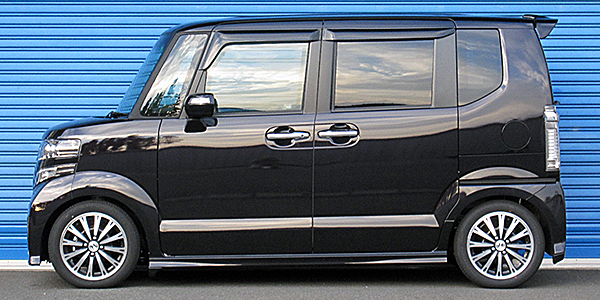

The model in the photo is JF1.
Application
Engine | S07A |
---|---|
Model Year | 12/07 - 17/09 |
Remarks | "G" NA |
Specification
FRONT | REAR | |
---|---|---|
Damping force adjustment | - | - |
Base valve | - | - |
Height adjustable lower bracket | ○ | - |
Upper mount | Stock | Stock |
Inverted/Normal type | Inverted | Normal |
Damper/Spring layout | Coilover | Separated |
Spring rate change at factory | Possible | Impossible |
Damping force adjustment with wire | - | - |
Helper spring (Spring rate N/mm) | - | - |
Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
---|---|---|---|---|---|
FRONT | Ride height *1 | 578 | ← | 618 ~ 556 | 608 ~ 556 |
Against stock | -40 | ← | 0 ~ -59 | -10 ~ -59 | |
REAR | Ride height *1 | 571 | ← | 590 ~ 552 | 576 ~ 552 |
Against stock | -51 | ← | -32 ~ -70 | -46 ~ -70 |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
F | R | |
---|---|---|
Spring rate N/mm(kgf/mm) | 39 ( 4 ) | 25 ( 2.5 ) |
Free height (mm) | 250 | - |
Spring type | Straight Barrel type | Special shape |
Recommended range to change spring rate N/mm(kgf/mm) | ±10 ( 1 ) | - |
Specification of damper
F | R | |
---|---|---|
Damping force (Rebound/Damping)N* | 402 / 284 | 206 / 147 |
Default position of dial | - | - |
Remaining damper stroke (Rebound/Damping)mm | 39 / 65 | 62 / 83 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
F | R | |||||||
---|---|---|---|---|---|---|---|---|
Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
Length of case (mm) |
280 | ← | 301 | 273 | 310 | ← | 310 | 310 |
Spring Set length(mm) |
226 | ← | 217 | 238 | - | - | - | - |
Length to ride hight adjuster (mm) |
19 | ← | 49 | 0 | 35 | ← | 40 | 16 |
Lever ratio | 1.00 | 1.00(spg) , 0.83(dmp) |
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
F | R | ||
---|---|---|---|
Vehicle weight kg | 583 (580) | 411 (420) | |
Tire size (Air pressure) kPa | 155 / 65 - 14 ( 220 ) | 155 / 65 - 14 ( 220 ) | |
Wheel size | 4.5 JJ × 14 inset 40 | 4.5 JJ × 14 inset 40 | |
Alignment (Toe/Camber) |
Test data | in 1 mm / -0°24' | in 6 mm / -1°24' |
Standard value | in 0 ± 3 mm / 0°00' ± 1°00' | in 3 ± 3 mm / -1°30' ± 1°00' |
* Test data at HKS.

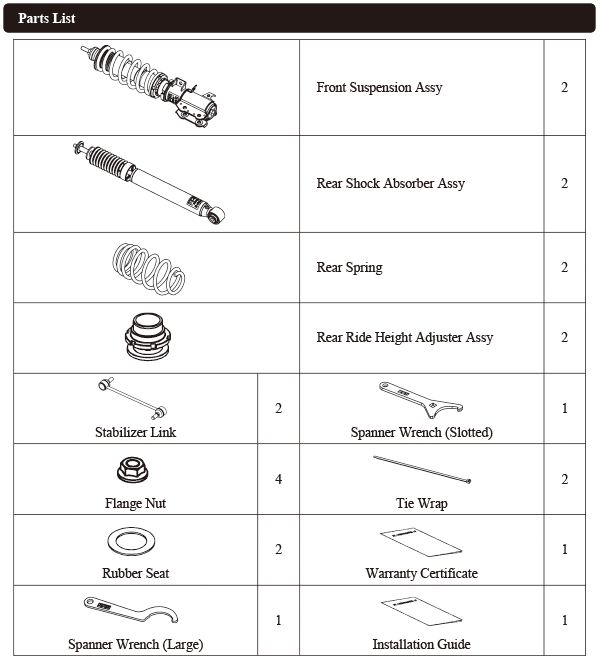

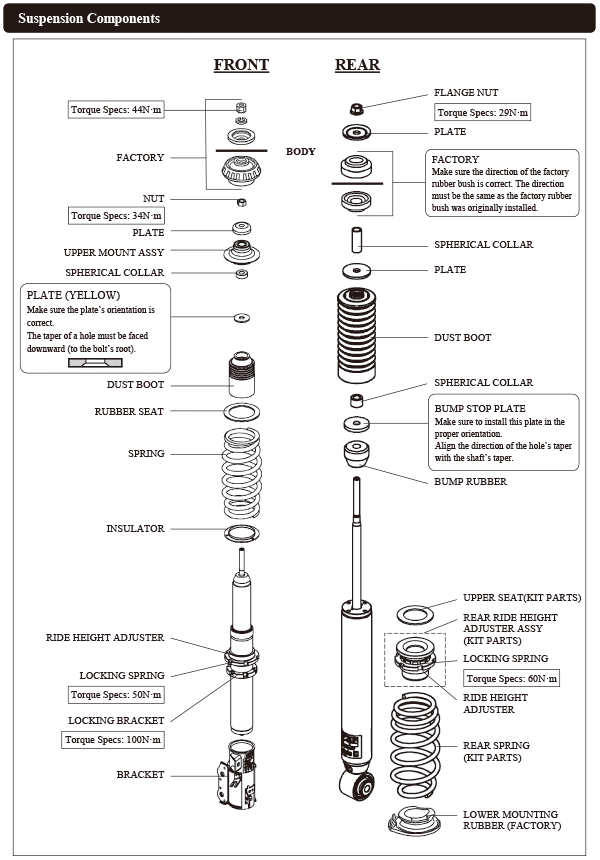

Parts List * It may be changed without prior notice.
Point
・ Replacing a stock suspension with S-Style C enable to fix instable high speed driving and body-roll during cornering and provide safe and comfortable driving.
・ Soft riding comfort is arranged for leisure with family or friends.
・ The ideal setting of spring rate and damping force provide soft but stable driving feeling. Uncomfortable upthrust and unsteadiness are eliminated as much as possible.
・ The vehicle body roll is properly controlled during cornering; therefore, comfortable driving is possible without a sudden unsteadiness.
・ Do not extend the front case length more than 301mm since the stabilizer may come in contact with the lower arm at full extension.
・ Do not shorten the front case length less than 273mm since the vehicle body may come in contact with the tie rod at full bump, and it applies excessive tension to the wheel speed sensor cable.
・ Modification of the stock rear spring mounting rubber is required in order to install this product.
・ Replacing the front spring to 220mm is able to lower the vehicle height 20mm more than the lower limit; however, the ride height adjuster may come in contact with the dust boots. Change the front spring to 220mm only when the vehicle height must be lower than 60mm of the stock height.
