S-style C
STEPWGN
STEPWGN RF3

S-style  C

Code No. 80110-AH201

*Discontinued.

Masterpiece of HKS "S-style" series! For the Best & Firm Ride!!

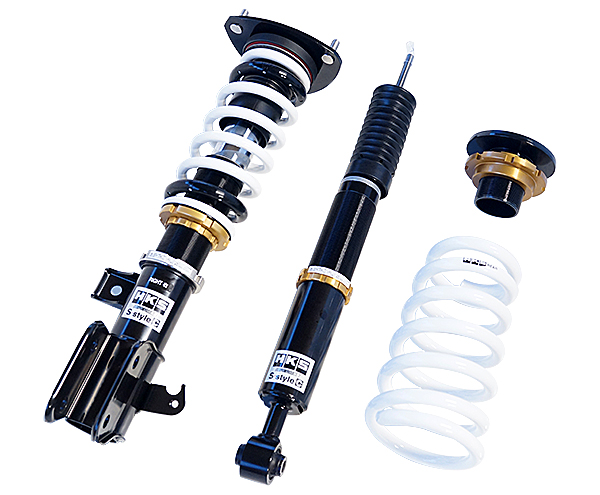

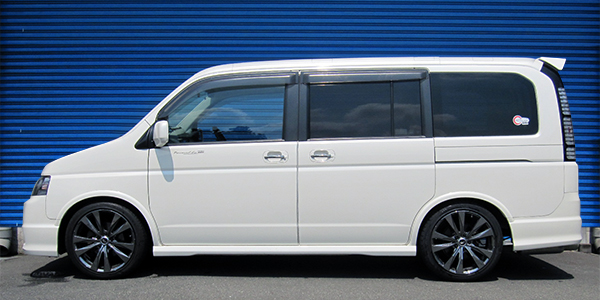

The model in the photo is RF7





Application

Engine K20A
Model Year 01/04 - 05/04
Remarks

Specification

  FRONT REAR
Damping force adjustment - -
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 646 - 687 ~ 599 687 ~ 596
Against stock -41 - 0 ~ -85 0 ~ -85
REAR Ride height *1 665 - 701 ~ 631 701 ~ 631
Against stock -36 - 0 ~ -70 0 ~ -70

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 49 ( 5 ) 85 ( 8.7 )
Free height (mm) 250 -
Spring type Straight Barrel type Special shape
Recommended range to change spring rate N/mm(kgf/mm) ±10 ( 1 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 630 / 150 420 / 160
Default position of dial - -
Remaining damper stroke (Rebound/Damping)mm 53 / 74 55 / 80

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
327 350 303 346 365 346
Spring
Set length(mm)
226 212 245 - - - -
Length to ride hight
adjuster (mm)
40 77 0 34 53 16
Lever ratio 1.10 1.89(spg) , 1.20(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg - (890) - (690)
Tire size (Air pressure) kPa 225 / 40 - 18 ( 230 ) 225 / 40 - 18 ( 230 )
Wheel size 8.5 JJ × 18 inset 45 8.5 JJ × 18 inset 45
Alignment
(Toe/Camber)
Test data - / - - / -
Standard value 0 ± 2 mm / -0°± 1° in 1 ± 2 mm / -0°15' ± 1°

* Test data at HKS.

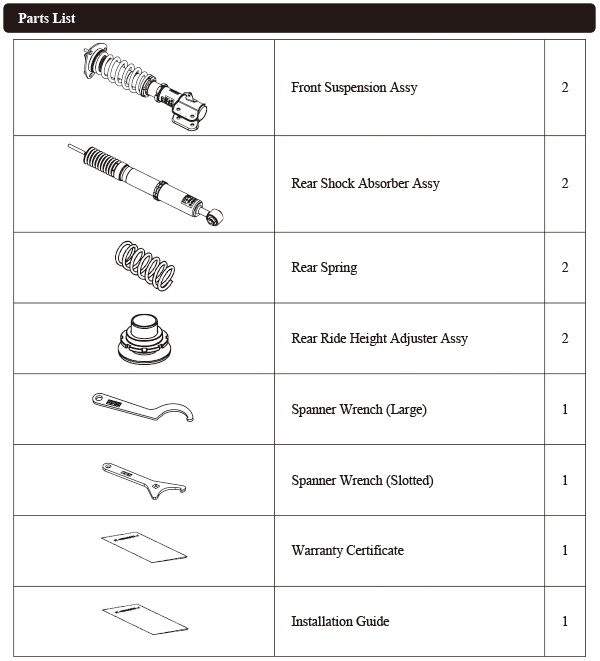

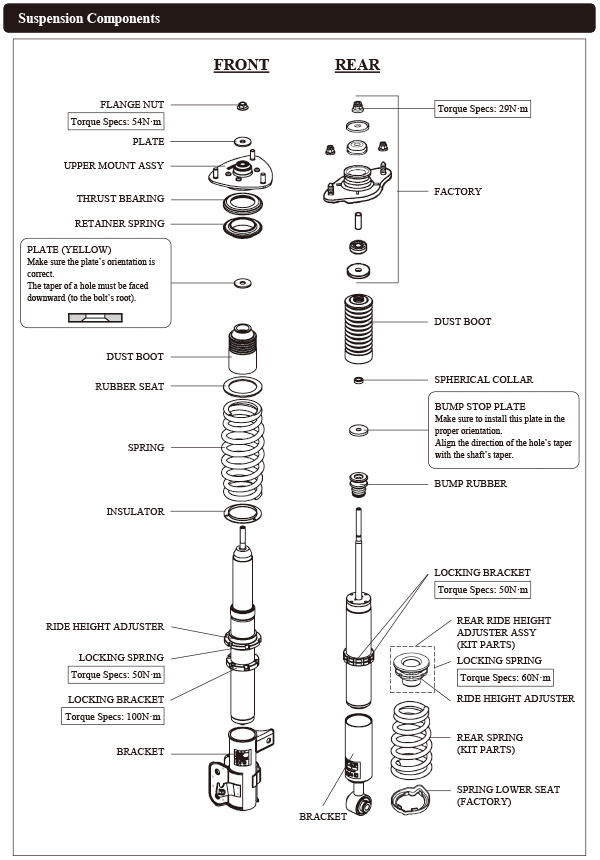

Parts List  * It may be changed without prior notice.




Point
