S-style C
ELGRAND
ELGRAND PE52

S-style  C

Code No. 80110-AN207

*Discontinued.

Masterpiece of HKS "S-style" series! For the Best & Firm Ride!!

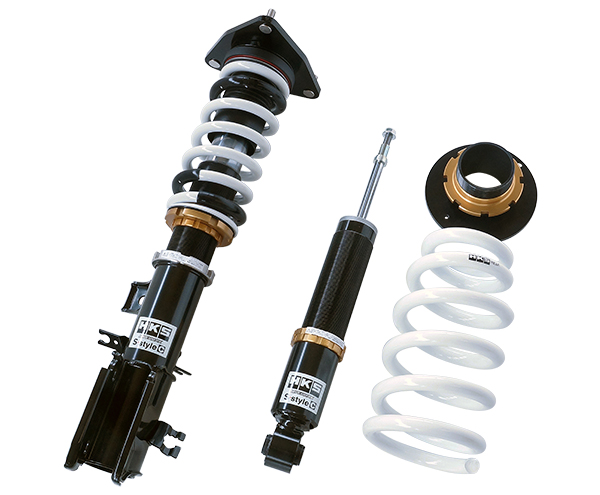

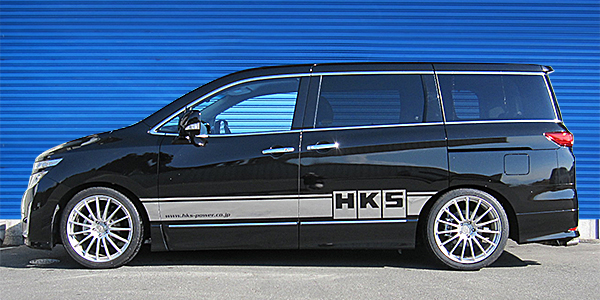

The model in the photo is E52.





Application

Engine VQ35DE
Model Year 10/08 -
Remarks Highway Star (for 7 people)

Specification

  FRONT REAR
Damping force adjustment - -
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 719 755 ~ 699 755 ~ 699
Against stock -49 -13 ~ -69 -13 ~ -69
REAR Ride height *1 718 749 ~ 679 749 ~ 679
Against stock -45 -14 ~ -84 -14 ~ -84

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 68 ( 7 ) 105 ( 10.7 )
Free height (mm) 220 -
Spring type Straight Barrel type Special shape
Recommended range to change spring rate N/mm(kgf/mm) +10 ( 1 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 554 / 285 450 / 422
Default position of dial - -
Remaining damper stroke (Rebound/Damping)mm 62 / 54 44 / 62

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
367 403 350 292 304 277
Spring
Set length(mm)
213 213 216 - - - -
Length to ride hight
adjuster (mm)
37 73 17 38 58 13
Lever ratio 1.08 1.57(spg) , 1.67(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 1121 (1110) 915 (910)
Tire size (Air pressure) kPa 245 / 40 - 20 ( 2.9 ) 245 / 40 - 20 ( 2.9 )
Wheel size 8.5 JJ × 20 inset 45 8.5 JJ × 20 inset 45
Alignment
(Toe/Camber)
Test data in 0 mm / L:-1°30' R:-1°30' in 1.5 mm / -2°30'
Standard value in 2.5 ~ 0.5 mm /
L:-0°35' ± 45' R:-0°20' ± 45'
in 4.5 ~ 1.3 mm / -0°42' ± 30'

* Test data at HKS.

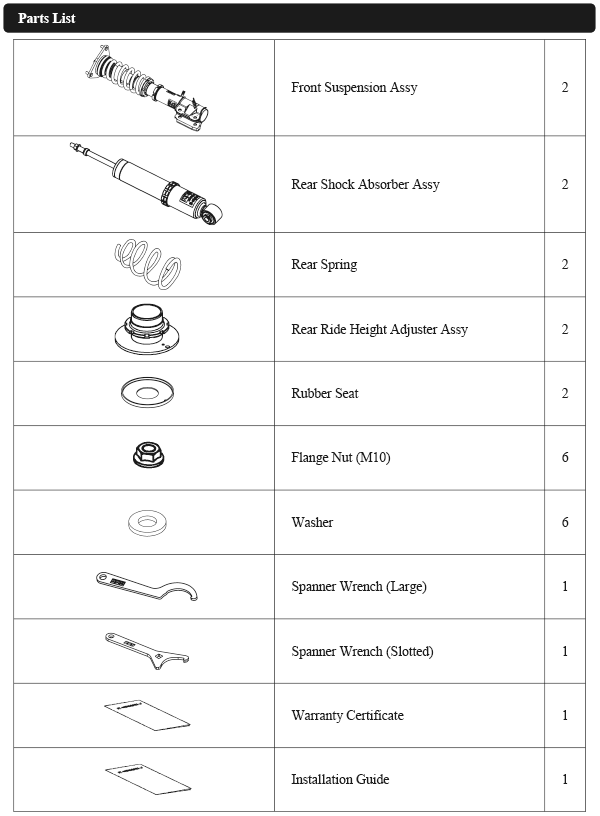

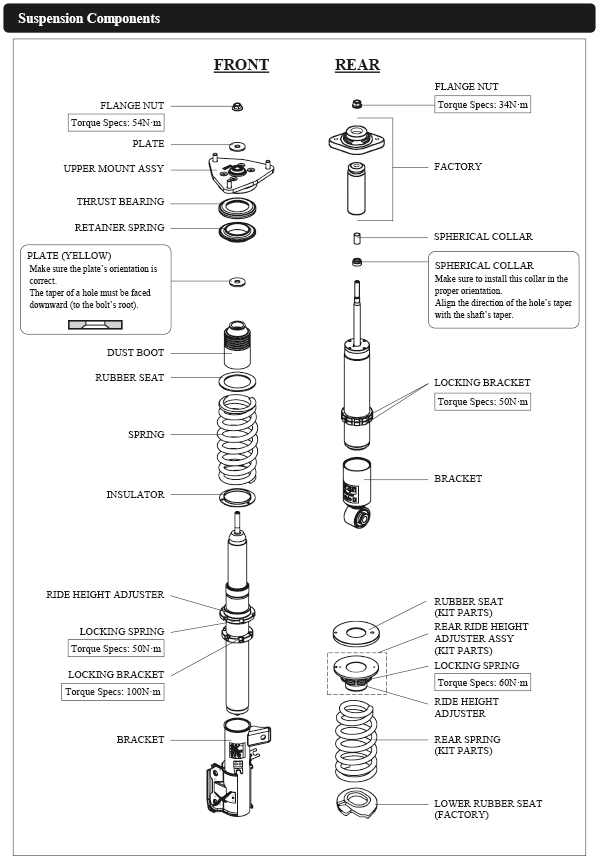

Parts List  * It may be changed without prior notice.




Point

・ The front and rear spring rates and damping force was reviewed to eliminate useless movement without sacrificing the ride comfort.
・ Without floating feeling during high speed driving, comfortable flat ride feeling is generated.
・ Do not shorten the front case length less than 364mm since the inner fender may come in contact with the tire at full stroke or steering.
・ A stock rear upper plate is reused to in order to install this product.
