Code No. 80110-AS202
*Discontinued.

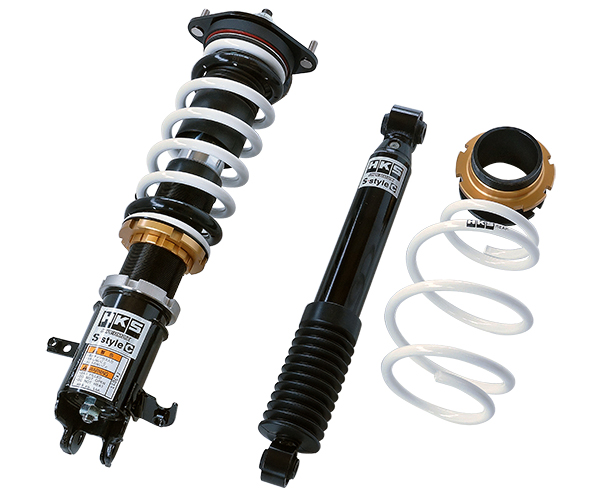

Masterpiece of HKS "S-style" series! For the Best & Firm Ride!!

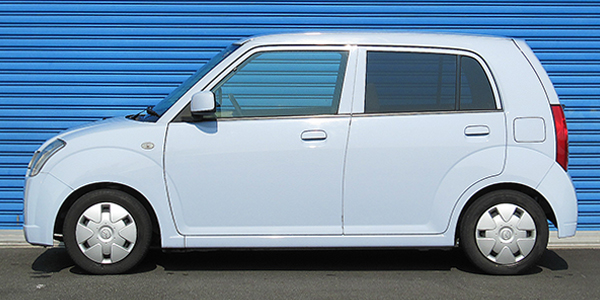

▲The model in the photo is MH24S
Application
Engine | K6A |
---|---|
Model Year | 04/09 - 09/12 |
Remarks | Not for 4WD. Test vehicle: Mazda Carol(HB24S) FF 4AT |
Specification
FRONT | REAR | |
---|---|---|
Damping force adjustment | - | - |
Base valve | - | - |
Height adjustable lower bracket | ○ | - |
Upper mount | Rubber | Rubber |
Inverted/Normal type | Inverted | Normal |
Damper/Spring layout | Coilover | Separated |
Spring rate change at factory | Possible | Impossible |
Damping force adjustment with wire | - | - |
Helper spring (Spring rate N/mm) | - | - |
Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
---|---|---|---|---|---|
FRONT | Ride height *1 | - | 557 | 590 ~ 514 | 590 ~ 514 |
Against stock | - | -33 | 0 ~ -76 | 0 ~ -76 | |
REAR | Ride height *1 | - | 557 | 575 ~ 555 | 562 ~ 555 |
Against stock | - | -37 | -19 ~ -39 | -32 ~ -39 |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
F | R | |
---|---|---|
Spring rate N/mm(kgf/mm) | 29 ( 3 ) | 18 ( 1.8 ) |
Free height (mm) | 250 | - |
Spring type | Straight Barrel type | Special shape |
Recommended range to change spring rate N/mm(kgf/mm) | +10 ( 1 ) | - |
Specification of damper
F | R | |
---|---|---|
Damping force (Rebound/Damping)N* | 529 / 186 | 274 / 196 |
Default position of dial | - | - |
Remaining damper stroke (Rebound/Damping)mm | 36 / 68 | 39 / 63 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
F | R | |||||||
---|---|---|---|---|---|---|---|---|
Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
Length of case (mm) |
263 | 257 | 267 | 252 | 245 | 245 | 245 | 245 |
Spring Set length(mm) |
218 | 218 | 198 | 252 | - | - | - | - |
Length to ride hight adjuster (mm) |
39 | 39 | 69 | 0 | 38 | 20 | 25 | 18 |
Lever ratio | 1.09 | 0.90(spg) , 0.88(dmp) |
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
F | R | ||
---|---|---|---|
Vehicle weight kg | 477 (480) | 308 (290) | |
Tire size (Air pressure) kPa | 155 / 65 - 13 ( 220 ) | 155 / 65 - 13 ( 220 ) | |
Wheel size | 4.0 JJ × 13 off 45 | 4.0 JJ × 13 off 45 | |
Alignment (Toe/Camber) |
Test data | 0 mm / -1°24' | 3 mm / -0°06' |
Standard value | in 0 ± 1 mm / 0°00' ± 1° | in 0 ± 5 mm / 0°00' ± 1° |
* Test data at HKS.

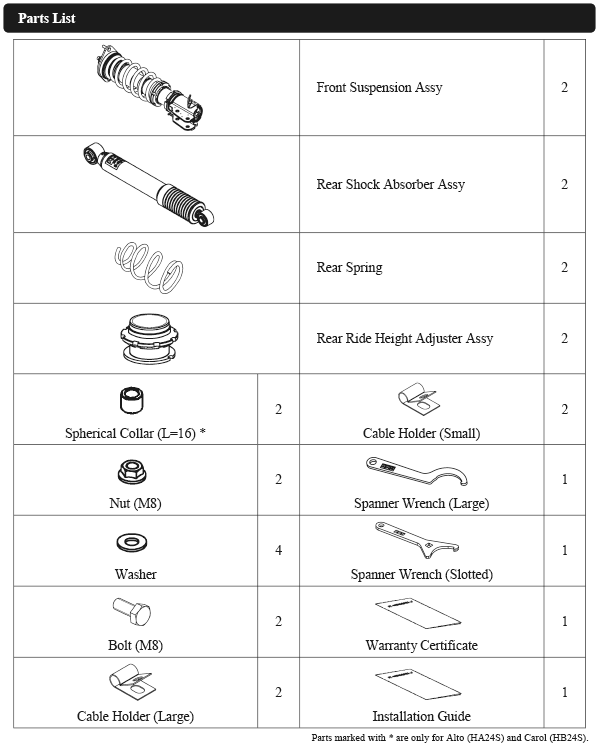

Parts List * It may be changed without prior notice.
Point
・Reducing the vehicle body roll delivers reliable and sporty drivability. Enjoy briskly driving feeling with a lightweight vehicle body.
・Lowering the vehicle height narrows the gap between the fender and tire to create better appearance.
・The front case length upper limit is the brake hose’s movable limit, and beyond its lower limit, the vehicle body may come in contact with the tie rod.
・If the vehicle height is increased more than the test condition, abnormal noise may occur when going over a bump in the road or excessive body roll is caused since the rear rebound stroke is short.

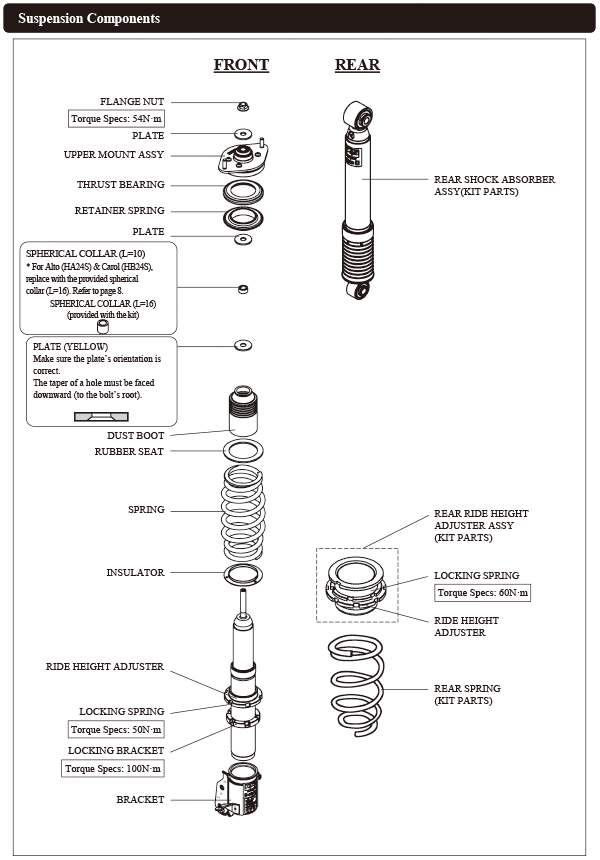

・Replace the 10mm collar with the provided 16mm collar to avoid unnecessary contact between the ECU and front upper’s shaft. After replacing the collar, adjust the overall length by 6mm. (Refer to the test setting data.)
・Before installation, adjust the adjuster thread length to approximately 200mm since the rear rebound stroke is short.
・This product is compatible with Mazda Carol (HB24S) FF model.
●Required Modification
The factory rear bump rubber must be cut and modified in order to install this product.
