MAX IV SP
GT-R
GT-R R35

MAX IV SP

Code No. 80250-AN001

*Discontinued.

The sport model to have a comfortable drive even in the winding road.

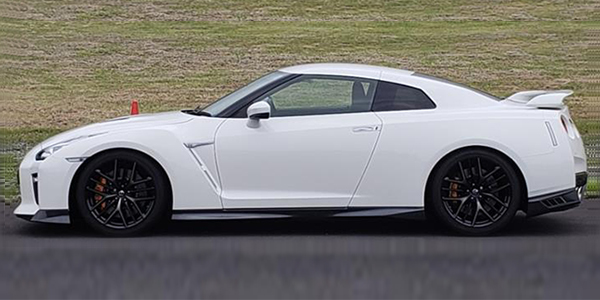

The model in the photo is R35 MY17.





Application

Engine VR38DETT
Model Year 16/07 -
Remarks MY17 Pure edition

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Spherical bearing Spherical bearing
Inverted/Normal type Normal Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
○ ( 19.8 ) ○ ( 19.8 )
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 705 719 ~ 621 719 ~ 647
Against stock -14 0 ~ -98 0 ~ -72
REAR Ride height *1 714 728 ~ 685 728 ~ 691
Against stock -14 0 ~ -43 0 ~ -37

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 157 ( 16 ) 118 ( 12 )
Free height (mm) 200 250
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )

Specification of damper

  F R
Damping force (Rebound/Damping)N* 3000 / 410 900 / 360
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 45 / 55 78 / 82

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
481 491 477 410 423 390
Spring
Set length(mm)
238 238 275 326 326 326
Length to ride hight
adjuster (mm)
59 69 18 26 39 6
Lever ratio 1.43 1.15

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 978 (960) 807 (800)
Tire size (Air pressure) kPa 255 / 40 - 20 ( 210 ) 285 / 35 - 20 ( 200 )
Wheel size 9.5 JJ × 20 inset 45 10.5 JJ × 20 inset 25
Alignment
(Toe/Camber)
Test data in 1 mm / -1°30' in 2 mm / -2°00'
Standard value - -

* Test data at HKS.


Parts List  * It may be changed without prior notice.




Point

More advanced version of very famous HIPERMAX III Sport09 which supported many records in the circuit racing.
We have tested in circuit as well as the street and could have improved stability of rear which HIPERMAX III Sport09 lacked a little. Therefore rear tires have better grounding and roll stiffness which results in improved rear traction and absorption at a high speed driving. Once you experience the new MAX IV SP, we are sure that you can feel the difference from the Sport09.
However we also set for a comfortable ride in the street.
MAX IV SP is the perfect for the circuit and high speed driving.
