MAX IV GT
CROWN
CROWN ARS220

MAX IV GT

Code No. 80230-AT015





Awesome control and comfort ride on the street for a sporty drive. The new Max IV sporty suspension.

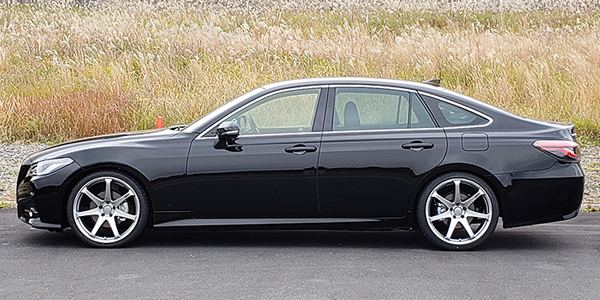

▲The model in the photo is ARS220.





Application

Engine 8AR-FTS
Model Year 18/06 -
Remarks ※After lowering the vehicle height, the irradiation range narrowness of a radar camera and misalignment of alignment center may occur that result in malfunction of Toyota Safety Sense (TSS).

Specification

  FRONT REAR
Damping force adjustment
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Rubber
Inverted/Normal type Normal Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
19 ( 2.0 ) -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 682 710 ~ 646 708 ~ 646
Against stock -28 0 ~ -64 0 ~ -64
REAR Ride height *1 683 714 ~ 625 714 ~ 625
Against stock -30 +1 ~ -88 +1 ~ -88

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 78 ( 8.0 ) 98 ( 10.0 )
Free height (mm) 250 235
Spring type Straight Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) ±19 ( 2.0 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 1059 / 314 726 / 284
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 70 / 46 59 / 77

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
472 486 462 430 453 420
Spring
Set length(mm)
284 278 299 - - - -
Length to ride hight
adjuster (mm)
62 82 37 57 72 29
Lever ratio 1.46 2.10(spg) / 1.33(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 894 804
Tire size (Air pressure) kPa 255 / 30 - 20 ( 280 ) 275 / 30 - 20 ( 280 )
Wheel size 8.5J × 20 9.5J × 20
Alignment
(Toe/Camber)
Test data in 1 mm / -1°20' in 2 mm / -2°40'
Standard value in 0 mm ± 2 mm / -0°25' ± 0°45' in 2 mm ± 2 mm / -1°35' ± 0°45'

* Test data at HKS.


Parts List  * It may be changed without prior notice.




Point

To compensate for the genuine suspension which becomes inadequate in low and flattening and high grip caused by using a larger tires, the balance of the stroke amount and the damping characteristic is mainly reviewed by testing with 20 inch wheels to achieve high speed touring performance taking advantages of tires characteristics.
Experience the driving that is inevitable with the design of this new Crown which became the sportiest appearance in the past.

※After lowering the vehicle height, the irradiation range narrowness of a radar camera and misalignment of alignment center may occur that result in malfunction of Toyota Safety Sense (TSS). HKS will not be responsible for any accident caused by TSS malfunction after installing this product.
※Modification of the rear inner fender is required in order to install this product.

●The straight ID65 springs are utilized for both front and rear sides. Replacing the spring widens the setting ranges according to the purpose of driving.
●The front and rear lower brackets are aluminum billet type, and the front bracket is totally new design.
