G+
JIMNY
JIMNY JB64W

G+

Code No. 80270-AS001





New suspension kit is aimed to provide better street ride and new level of certaintly for legendary JIMNY. Enjoy driving with firmer and more reliable handling.





HIPERMAX G+ LOW DOWN

for JIMNY (JB64W)

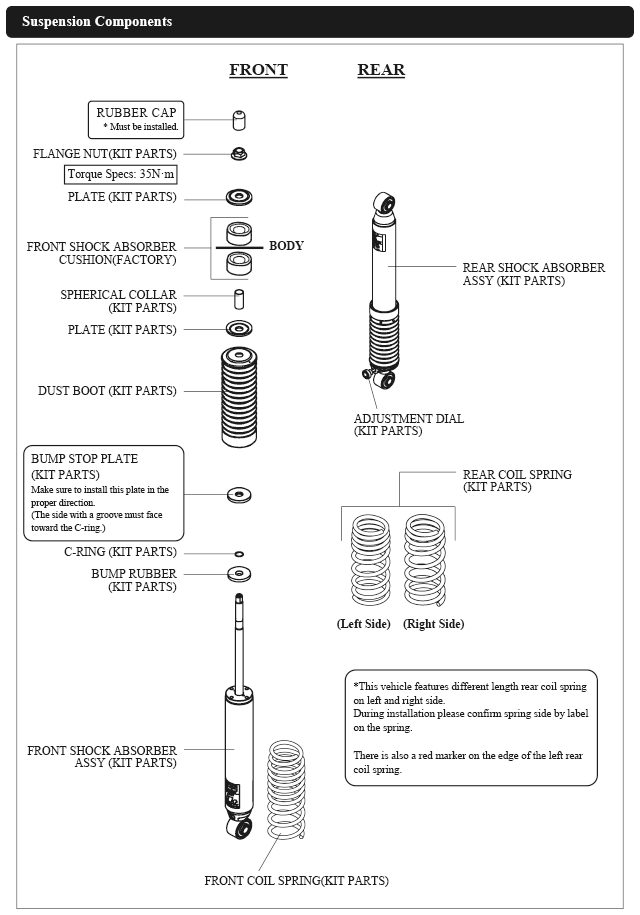

<Product Basic Structure>
●Single Tube Damper Assembly
●Special Low-down Style Spring
※The stock upper mounts are used.





■Features

  • Driving on the paved road with the stock suspension, driver may feel uncomfortable due to the vehicle behaviour: yaw, pitch and excessive body roll.
  • The kit lowers vehicle 30mm-35mm and lowers center of gravity. Front and back spring rates raised to 39N/mm - the best match for single tube shock absorber and quick damping is a great imrovement over unstable factory suspension.
  • Excessive body roll was reduced, cornering and overal vehicle behaviour was improved drastically.
  • 30-way adjustable damping force allows to fine tune suspension for the best personal driving experience.

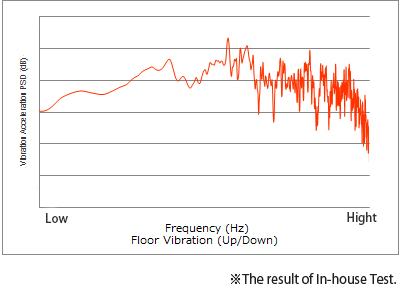

■Frequency measured by G-sensor

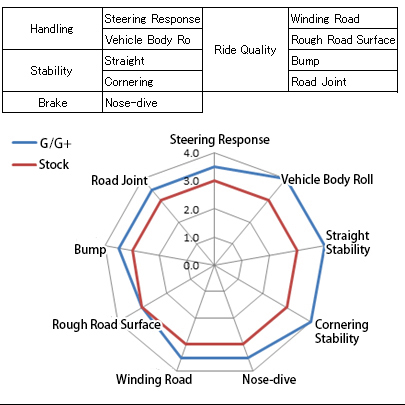

■Setting Chart

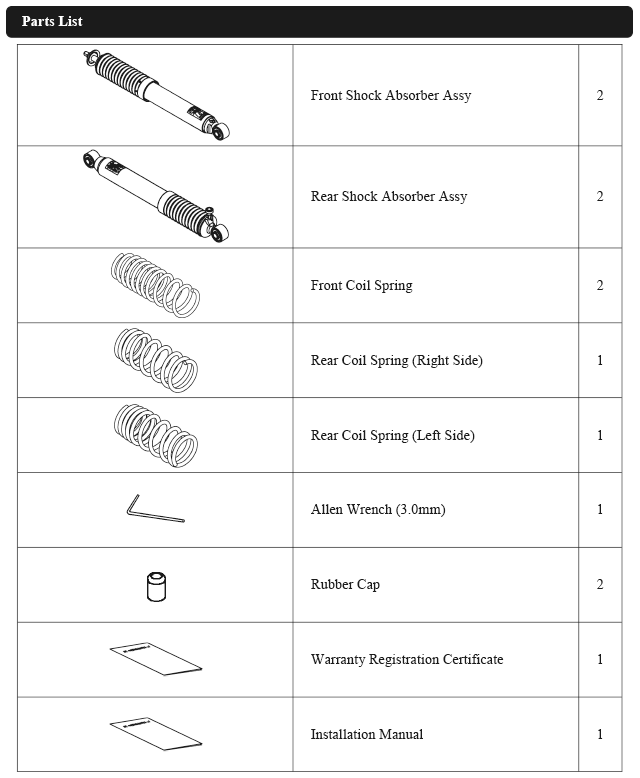

■Kit Parts





Vehicle Model Engine Model Year Series Full Kit Spring Rate F/R Free Height Damping Force Piston Speed 0.1m/sec Damping Force N Vehicle Height (Highest - Lowest) Code No. Manual Remarks
F: Rebound/Compression R: Rebound/Compression
JIMNY JB64W R06A 18/07 - G+ F=39(4)/R=39(4) Special/Special 608/392 422/265 -30 -35 80270-AS001 Equipped with damping force adjustment 30 levels. Please use a stock bump rubber.
