Awesome control and comfort ride on the street for a sporty drive. The new Max IV sporty suspension.
▲The above photo is an item for K13改.
Application
| Engine | HR15DE |
|---|---|
| Model Year | 13/12 - |
| Remarks | For K13 KAI |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | 〇 | 〇 |
| Upper mount | Stock | Stock |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Impossible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) | 〇（19.6） | - |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 640 | 610 | 640 ～ 590 | 640 ～ 590 |
| Against stock | 0 | -30 | 0 ～ -50 | 0 ～ -50 | |
| REAR | Ride height *1 | 635 | 605 | 635 ～ 577 | 635 ～ 577 |
| Against stock | 0 | -30 | 0 ～ -58 | 0 ～ -58 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 59 (6) | 49 (5) |
| Free height (mm) | 170 | 170 |
| Spring type | Straight | Straight Barrel type |
| Recommended range to change spring rate N/mm(kgf/mm) | +9.8 (1) | 不可 |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 451 / 304 | 265 / 206 |
| Default position of dial | 15 段 | 15 段 |
| Remaining damper stroke (Rebound/Damping)mm | 55 / 51 | 60 / 76 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
310 | 280 | 310 | 271 | 423 | 389 | 423 | 360 |
| Spring Set length(mm) |
211 | 211 | 211 | 222 | - | - | - | - |
| Length to ride hight adjuster (mm) |
64 | 34 | 64 | 14 | 70 | 45 | 70 | 22 |
| Lever ratio | 1.00 | 1.21(spg) , 0.98(dmp) | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | 617 (630) | 407 (380) | |
| Tire size (Air pressure) kPa | 205 / 45 - 16 ( 220 ) | 205 / 45 - 16 ( 220 ) | |
| Wheel size | 7 JJ × 16 inset 50 | 7 JJ × 16 inset 50 | |
| Alignment (Toe/Camber) |
Test data | 0 mm / -1°09' | in 3 mm / -1°19' |
| Standard value | in 1 ± 1 mm / -0°10' ± 45' | in 2 ± 4 mm / -1°25' ± 30' | |
* Test data at HKS.

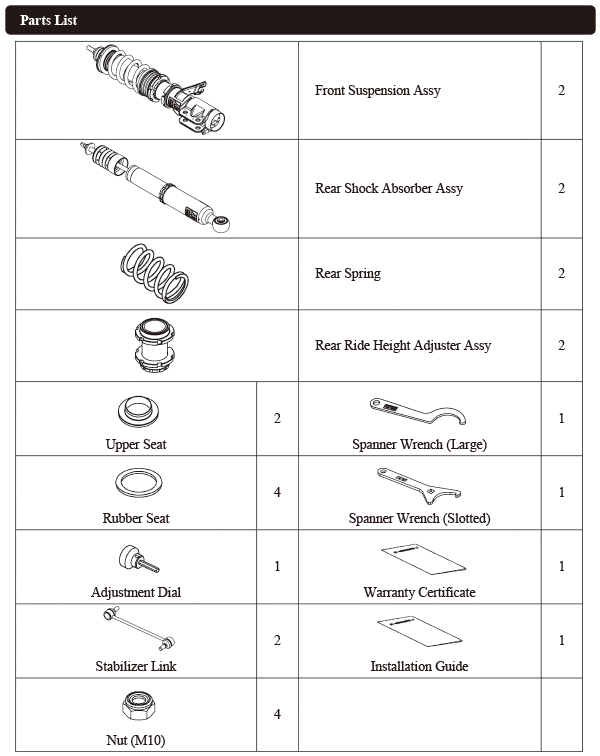

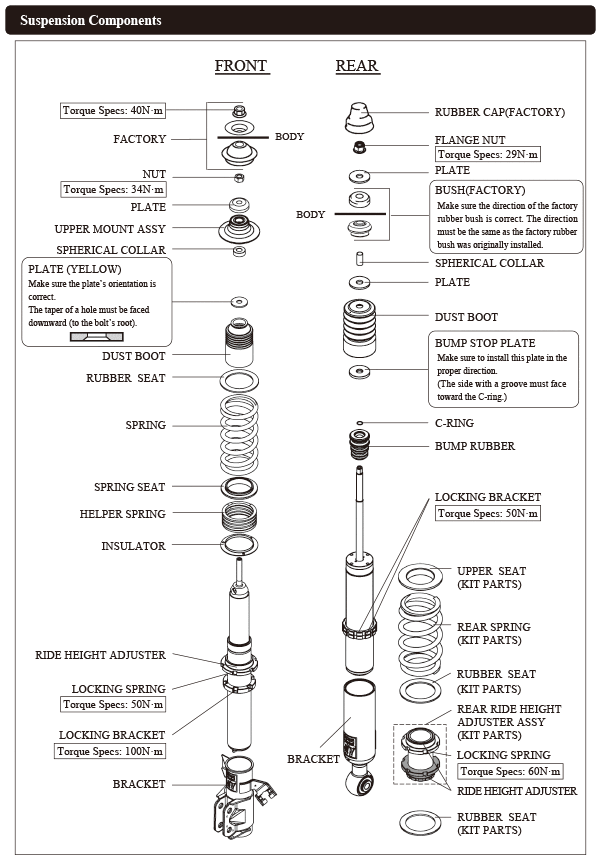

Parts List * It may be changed without prior notice.
Point
A new ride suspension kit made specially for NISMO! Lowering the ride height brings your car more stylish! We refined more ride quality based on running quality analysis of the factory suspension.
Rear ride height adjuster Assy utilizes new design. Achieve both raising and lowering height.
If the vehicle height is low and the shock body length is shortened, it may interfere the vehicle body and ride height adjuster. We changed the ride height adjuster assy at the lower arm side can extend downward for preventing the interference between the body and ride height screw. Please be sure to read the instruction manual before adjustments.
We verify the steering response improvement and stiffer ride comfort with 7K spring load testing however, the product adopts 6K as a standard considering the balance of city riding occasions.
Please try stiffer spring rate when you enjoy the car just a sport driving or hobby use.
The default height set equivalent to standard vehicle height to compliant with the safety standard and considering the rear fog lamp height. Please adjust according to the test dimension and be aware of the rear fog light when you lower the vehicle. (Rear fog light height: 228 mm at the test)
Inner fender may interfere with the tire when full steer damping or the front shock body length set shorter than the test under the condition of the factory tire-wheel setting. Further, interference may occur between factory over fender and the tire under the condition of the shock body length at the rear side is shorter than 378 mm when full steer damping. In any case, there is no interfering with the upper and lower arm.
