Suspension with high comfortability for street driving has arrived for JIMNY SIERRA.
Enjoy driving wherever you want with light drive feeling and a solid and stable look.

HIPERMAX G+　LOW DOWN

for JIMNYSIERRA (JB74W)

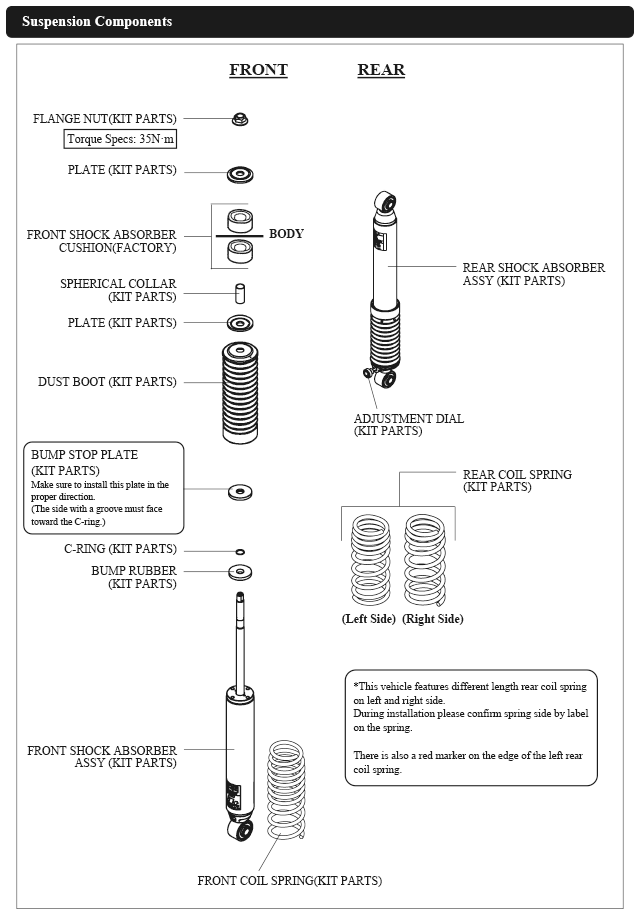

＜Product Basic Structure＞
●Single Tube Damper Assembly
●Special Low-down Style Spring
※The stock upper mounts are used.

■Features

• The stock suspension tends to provide the uncomfortable feeling with yaw and body roll..
• This kit improves such an uncomfortable feeling of the stock suspension by the best-balanced tune, specifically the center of the vehicle height 30 to 35 mm lower and the spring rate set to 42N/mm (Front) and 39N/mm (Rear). Setting damping force of the single tube shock absorber improves stability and reduces the body roll in the corners.
• You can select whether you pursue comfortability or sporty drive feeling with 30 levels of damping force adjustment.

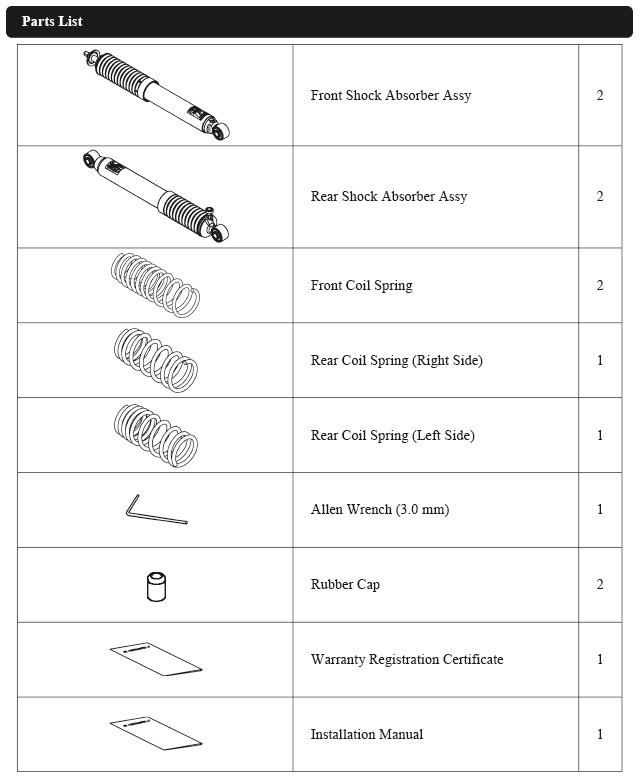

■Kit Parts

Vehicle	Model	Engine	Model Year	Series	Full Kit Spring Rate F/R	Free Height	Damping Force Piston Speed 0.1m/sec Damping Force N		Vehicle Height (Highest - Lowest)		Code No.	Manual	Remarks
							F: Rebound/Compression	R: Rebound/Compression
JIMNY SIERRA	JB74W	K15B	18/07 -	G+	F=42(4.3)/R=39(4)	Special/Special	481/363	392/235	-30	-35	80270-AS002		Equipped with damping force adjustment 30 levels. Please use a stock bump rubber.
