Code No. 80230-AT016
*Discontinued.
Awesome control and comfort ride on the street for a sporty drive. The new Max IV sporty suspension.

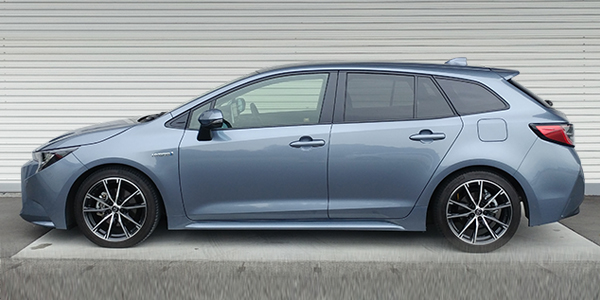

▲The model in the photo is ZWE211W.
Application
| Engine | 2ZR-FXE(2ZR-1NM) |
|---|---|
| Model Year | 19/09 - |
| Remarks | Lowering the ride height may affect operation range of the radar/camera. Due to change in roll center, TSS may operate incorrectly at times. We are unable to accept any responsibility for any issues due to TSS malfunction. |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | 〇 | 〇 |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Coilover |
| Spring rate change at factory | Possible | Impossible |
| Damping force adjustment with wire | - | 〇 |
| Helper spring (Spring rate N/mm) | - | - |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 639 | 642 | 666 ～ 614 | 666 ～ 614 |
| Against stock | -27 | -24 | 0 ～ -52 | 0 ～ -52 | |
| REAR | Ride height *1 | 640 | 647 | 674 ～ 625 | 674 ～ 625 |
| Against stock | -33 | -26 | 1 ～ -48 | 1 ～ -48 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 49 ( 5.0 ) | 49 ( 5.0 ) |
| Free height (mm) | 200 | 220 |
| Spring type | Straight Barrel type | Straight Barrel type |
| Recommended range to change spring rate N/mm(kgf/mm) | +10 ( 1 ) | - |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 735 / 201 | 471 / 186 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 65 / 51 | 59 / 67 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
290 | 305 | 329 | 277 | 290 | 298 | 320 | 283 |
| Spring Set length(mm) |
188 | 200 | 200 | 200 | - | - | - | - |
| Length to ride hight adjuster (mm) |
25 | 28 | 52 | 0 | 55 | 60 | 80 | 44 |
| Lever ratio | 1.00 | 1.34(spg) , 1.23(dmp) | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | 843 | 559 | |
| Tire size (Air pressure) kPa | 215 / 45 - 17 ( 220 ) | 215 / 45 - 17 ( 210 ) | |
| Wheel size | 7 JJ × 17 inset 45 | 7 JJ × 17 inset 43 | |
| Alignment (Toe/Camber) |
Test data | in 1 mm / -0°50' | in 1 mm / -1°30' |
| Standard value | in 1 ± 2 mm / -0°16' ± 0°45' | in 2.4 ± 2 mm / -1°07' ± 0°45' | |
* Test data at HKS.
Parts List * It may be changed without prior notice.
Point
HKS confirmed that The Corolla Touring Hybrid is compatible.
The factory settings are not optimal for this vehicle. Please adjust to the listed ride height to ensure comfortability and ride height balance.
Please note that if the front outer case was adjusted to lower limit, a right drive shaft will interfere with a vehicle body.
Please note that if the rear outer case was adjusted to lower limit, an upper arm will interfere with a vehicle body.
Lowering the ride height may affect operation range of the radar/camera. Due to change in roll center, TSS may operate incorrectly at times.
We are unable to accept any responsibility for any issues due to TSS malfunction.
*TTS (Toyota Safety Sense)
