G+
JIMNY
Explanation of the product Application chart
JIMNY JB64W

G+

Code No. 80270-AS003





Perfect Balance of Dynamic Style and Ride Comfort on the Street





HIPERMAX G+　LIFT UP

for JIMNY (JB64W)

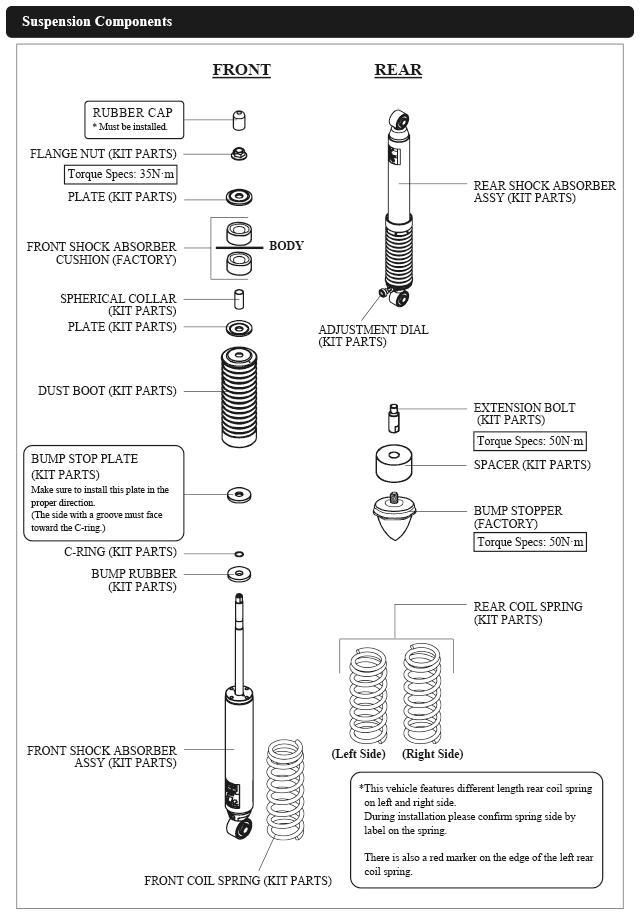

＜Product Basic Structure＞
●Single Tube Damper Assembly
●Lift Up
※The stock upper mounts are used.





■Features

  • Achieved to emphasize signature style of Jimny by increasing the ride height by 20-25mm as well as to offer the setting that perfectly matches to the spring with increased spring rate
  • Reduced excessive roll and yaw with reliable damping force offered by a single tube shock absorber, also focused on ride comfort on paved roads
  • With 30 steps of damping adjustment, this setup offers relaxed and comfortable ride as well as high-performance with tight ride control, depending on your preference

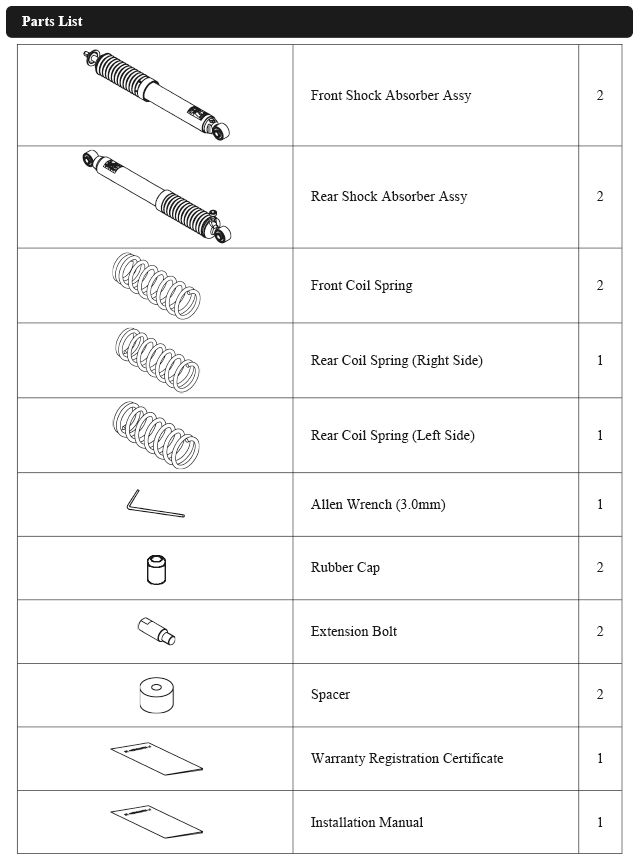

■Kit Parts







Vehicle Model Engine Model Year Series Full Kit Spring Rate F/R Free Height Damping Force Piston Speed 0.1m/sec Damping Force N Vehicle Height (Highest - Lowest) Code No. Manual Remarks
F: Rebound/Compression R: Rebound/Compression
JIMNY JB64W R06A 18/07 - G+ F=42(4.3)/R=39(4) Special/Special 471/422 412/226 +25 +20 80270-AS003 Make to order item
Equipped with damping force adjustment 30 levels. Please use a stock bump rubber. This vehicle is basically selling for the Japanese domestic market only (as Kei car).
