Adjustable spring kit that uses stock suspension system and adds vehicle height adjustment function

■Features

• The C8 Corvette boasts a design that’s both sporty and refined. This model features a lowered stance that enhances its sleek silhouette, offering a more aggressive look compared to the stock version’s high-riding feel.
• With the HIPERMAX Touring suspension, you can achieve a lower ride height without compromising the factory electronic damping system or front lift functionality.
• The front ride height is adjustable via spacers, giving you three options: -10mm, -20mm, or -30mm from the stock height. The rear retains the factory ride height adjustment feature.
• Backed by a 2-year or 40,000km warranty, this setup is supported by HKS’ trusted quality control, carried out entirely in-house at their domestic facility—a level of reliability only HKS can offer.

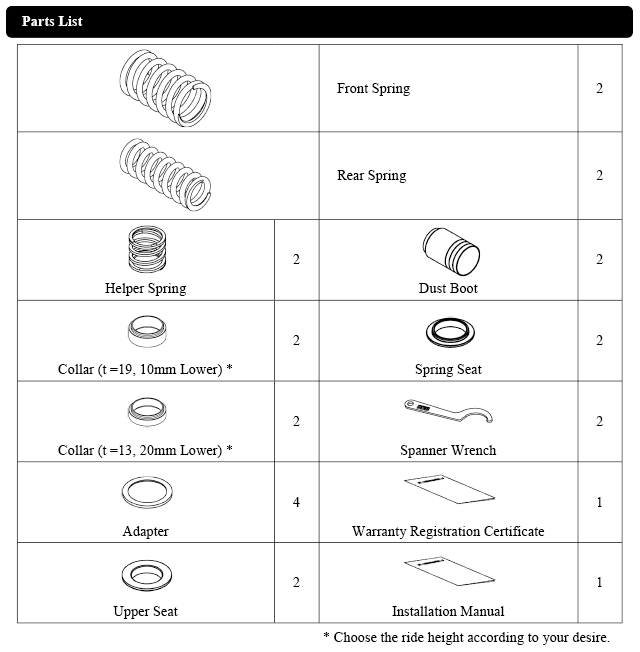

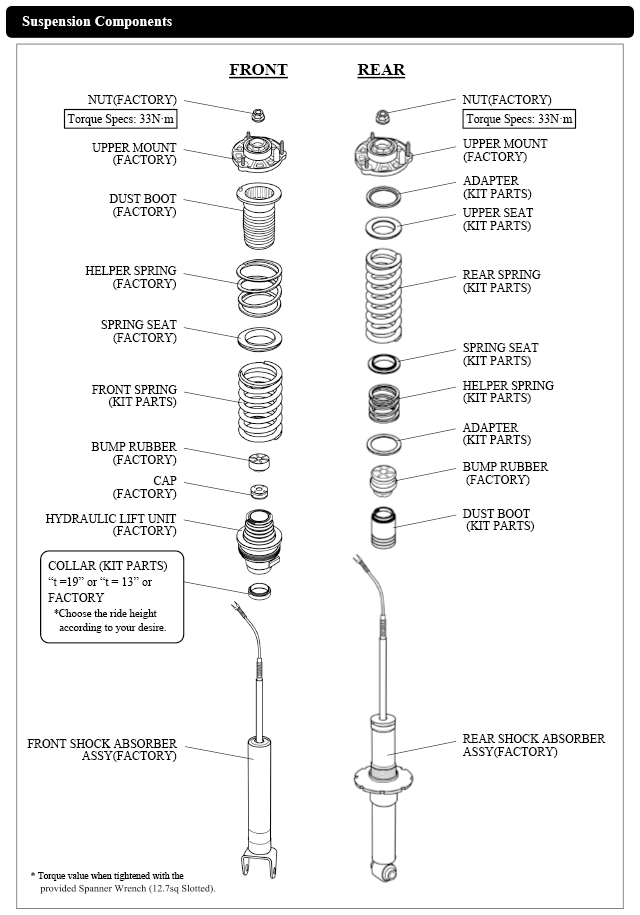

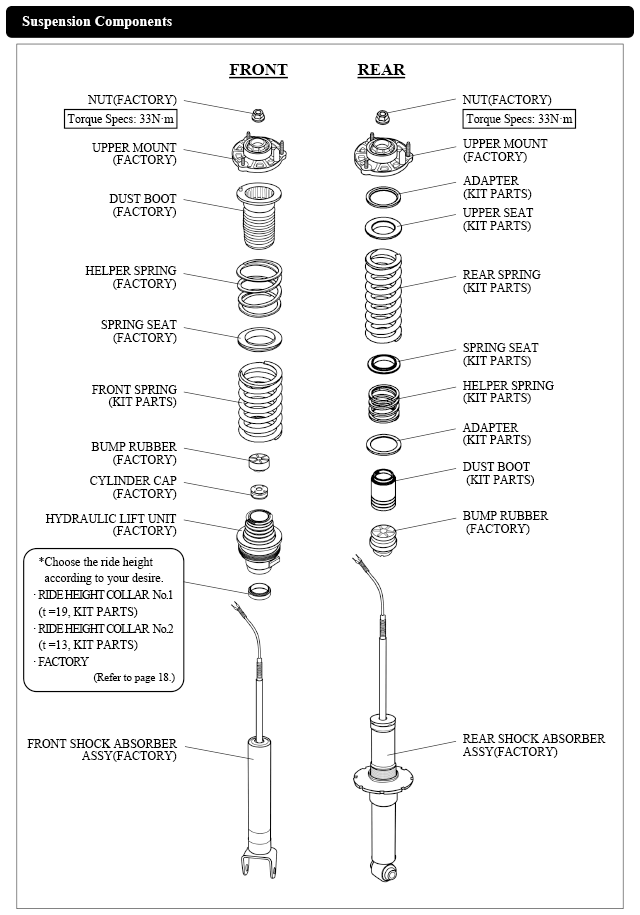

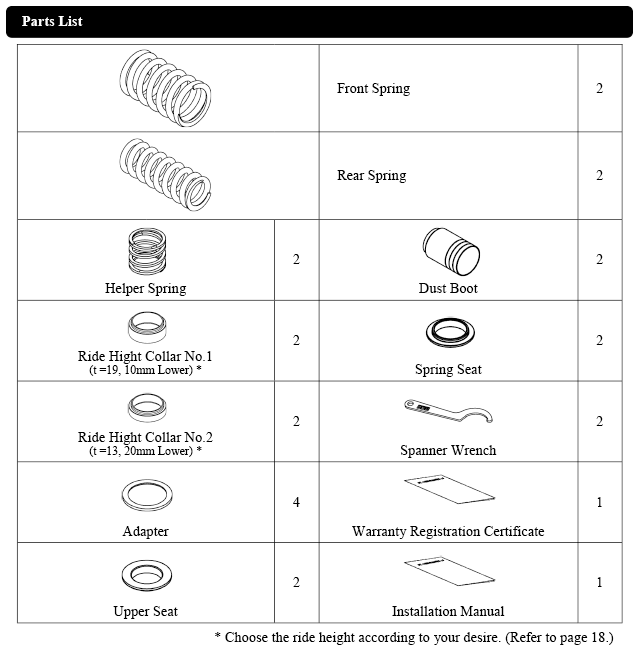

■Set contents and configuration diagram

■Suspension Setting Table

*1. Height from the road surface to the fender arch.
*2. The default vehicle height is a reference measurement data based on the combination of the full kit settings made by HKS in-house. (This is our recommended vehicle height.)
*3. Adjustable range (However, please note that driving at the lower limit in this case will not comply with safety standards. Also, even if it is within this adjustment range, depending on the vehicle height, it may cause interference with the body, arms, etc., and may interfere with driving.
Please note that defects such as damper oil leakage caused by using the vehicle with the vehicle height lowered too much from the factory height are not covered by the warranty.)
*4. The range in which the vehicle can be driven without interference with the body, arms, etc.
(However, this may not be the case depending on changes to tire/wheel size, etc.)
Note: Data may vary depending on individual vehicle differences and assembly conditions.
