Code No. 80270-AS006
The definitive OE-style street suspension, combining the premium ride quality of the MAX G with the versatility of adjustable damping.
■Features
- A lift of over 20 mm creates the rugged presence expected of a 4WD vehicle. Monotube shock absorbers provide precise damping control from very low speeds, ensuring stable and confident handling.
- With 30 levels of damping adjustment, a variety of driving situations and styling preferences can be accommodated.

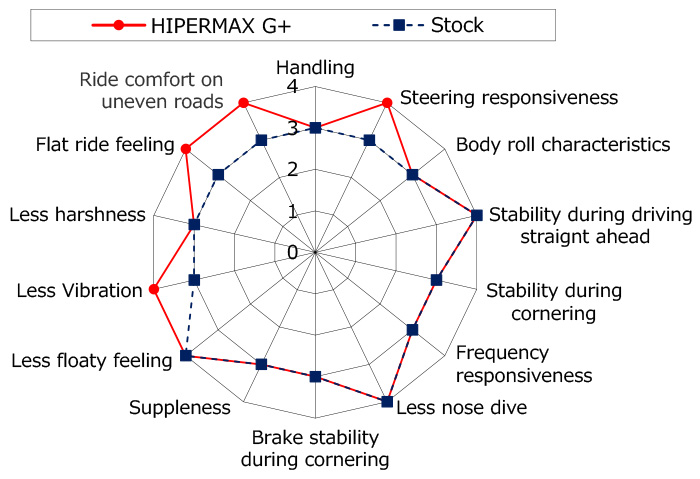

■Developer Comments
- Although the factory suspension has been refined, some of the characteristic body float of a ladder-frame chassis remains.
- 30 levels of damping adjustment allow the suspension to be fine-tuned for a variety of vehicle setups and driving conditions.
- The lift-up setup provides a rugged 4WD stance and stable, confident driving performance.
■Other Features
For performance, HKS's proven monotube damper design is adopted. For durability, a highly reliable PNE coating is used to provide excellent corrosion resistance, even in snowy regions and coastal areas. A 30-way damping force adjustment system comes standard.
PNE Coating
Designed to prevent rust-induced thread seizure, a common issue with full-length adjustable suspensions, for smooth and hassle-free ride-height adjustment.
DURA BOOTS
Developed with a newly selected material offering superior heat, weather, and ozone resistance, the dust boot delivers significantly improved durability over conventional designs and provides reliable protection for the suspension in harsh operating conditions.
"DURA BOOTS" combines the words "Durable" and "(Dust) Boots" to highlight its exceptional durability.

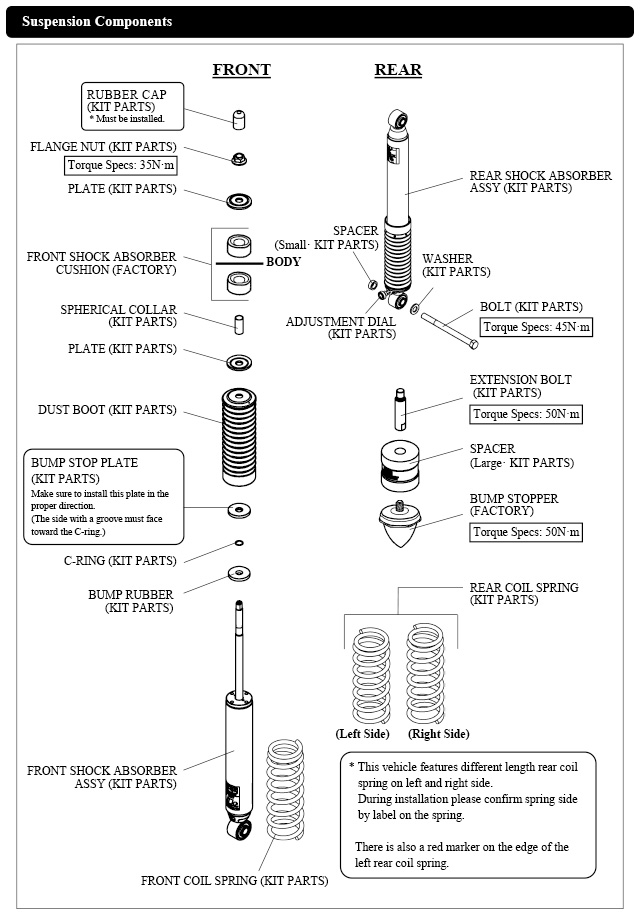

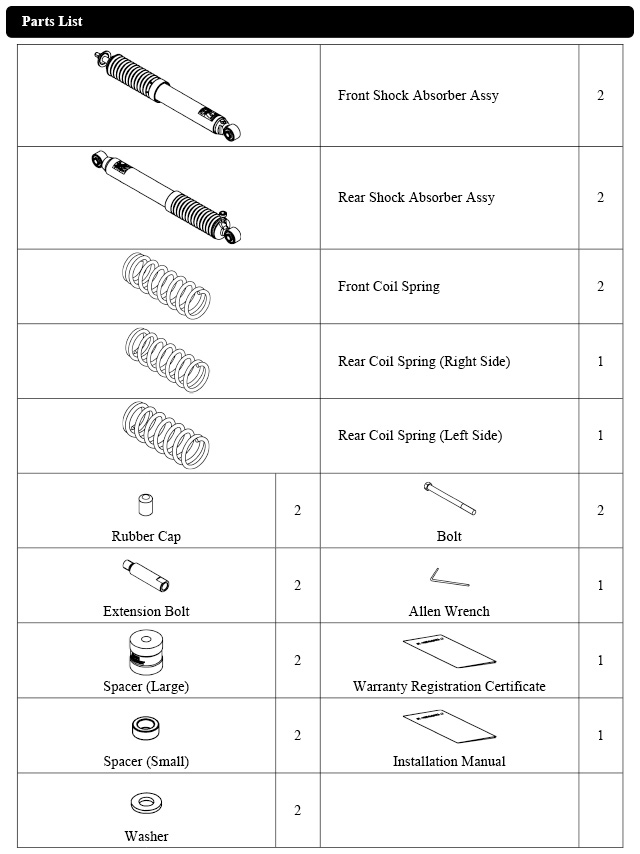

■Set Contents and Assembly Diagram
| Vehicle | Model | Engine | Model Year | Series | Full Kit Spring Rate F/R | Free Height | Damping Force Piston Speed 0.1m/sec Damping Force N | Vehicle Height (Highest - Lowest) | Code No. | Manual | Remarks | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F: Rebound/Compression | R: Rebound/Compression | ||||||||||||
| JIMNY NOMADE | JC74W | K15B | 25/04 - | G+ | F=45(4.6)R=39(4) | Special/Special | 687/250 | 157/118 | +28 | +23 | 80270-AS006 |
|
Lift Up |
