Racing Suction R
CIVIC
Explanation of the product Application chart
CIVIC FD1

Racing Suction R

Code No. 70020-AH009

*Discontinued.





■Feature

  • High RPM power and mid range RPM response get much better.
  • Intake sound is very sporty sound, you feel great with this high pitch sound.
  • We have designed it not to have bad influence over air flow output.
  • By changing the stock block rubber hose to aluminum buff pipe will have a awesome appearance in the engine compartment.

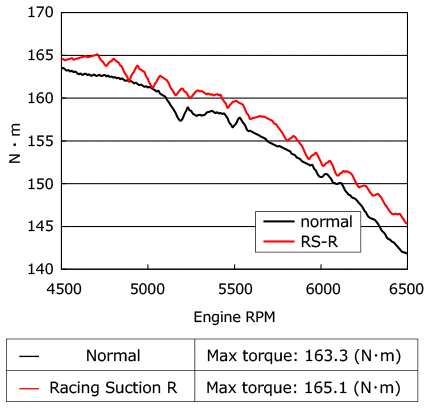

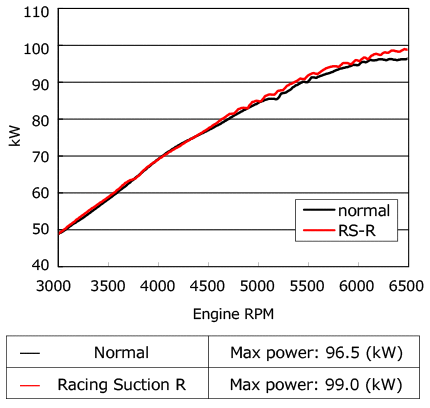

■Features Comparison





Impression Stock Bad 1 2 3 4 5 Good
Low-mid RPM RSR Bad 1 2 3 4 5 Good



Impression Stock Bad 1 2 3 4 5 Good
High RPM RSR Bad 1 2 3 4 5 Good
Intake sound Stock Small 1 2 3 4 5 Loud
Revving RSR Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
Driving RSR Small 1 2 3 4 5 Loud









Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
CIVIC DBA- FD1 R18A 05/09 -12/06 Racing Suction R Φ150-80/Yellow 70020-AH009 * Discontinued. For "1.8L G" "1.8L GL"
