Racing Suction R FREED Explanation of the product Application chart
FREED GB3
Racing Suction R

Code No. 70020-AH010











■Feature
  • Torque at 2000 - 3000rpm and high rpm range will be increased. It improves drivability.
  • Sporty intake sound.
  • Since it does not affect to air flow output, ECU resetting is not required.
  • Polished aluminum pipe has beautiful looking in the engine compartment.
  • To prevent direct induction of heat from engine, air insulator is installed.

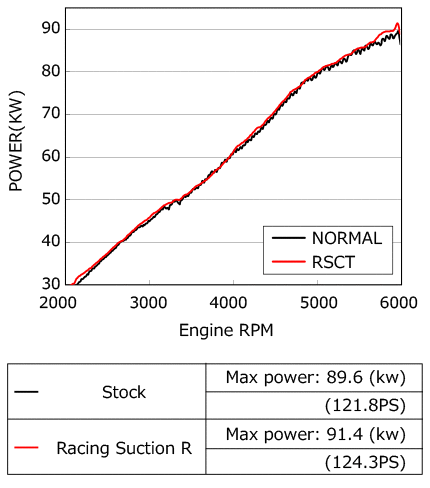

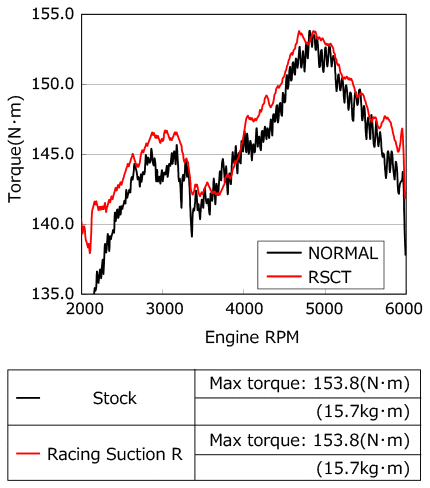

■Performance Comparison



Impression Stock bad 1 2 3 4 5 good
Low/mid rpm RSR bad 1 2 3 4 5 good
Impression Stock bad 1 2 3 4 5 good
High rpm RSR bad 1 2 3 4 5 good

Intake sound Stock small 1 2 3 4 5 loud
Revving RSR small 1 2 3 4 5 loud
Intake sound Stock small 1 2 3 4 5 loud
While driving RSR small 1 2 3 4 5 loud







Vehicle Classification Model Engine Model Year Style Size Code No. Price Remarks
FREED DBA- GB3 L15A 08/05- Racing Suction R Φ150-80/Yellow 70020-AH010 * Discontinued.
